GATE 2023 EE question paper with official answer key
The complete GATE 2023 Electrical Engineering (EE) paper: 65 questions for 100 marks, with the official answer to every question. Try each question first, then open its answer, or practise the whole paper free with a 3-hour timer and your score.
GATE 2023 EE paper at a glance
- Questions
- 65
- Total marks
- 100
- General Aptitude
- 10 questions · 15 marks
- EE subject
- 55 questions · 85 marks
- Question types
- 31 MCQ · 6 MSQ · 28 NAT
- Duration
- 3 hours
In GATE, each MCQ carries 1 or 2 marks; a wrong MCQ answer costs one-third of its marks (−1/3 for a 1-mark and −2/3 for a 2-mark question). MSQ (multiple select) and NAT (numerical answer) questions have no negative marking. In this paper, 1 question was dropped by GATE and given full marks to everyone.
All 65 questions
Each question is shown exactly as in the official paper. Tap “Show answer” to check yourself.

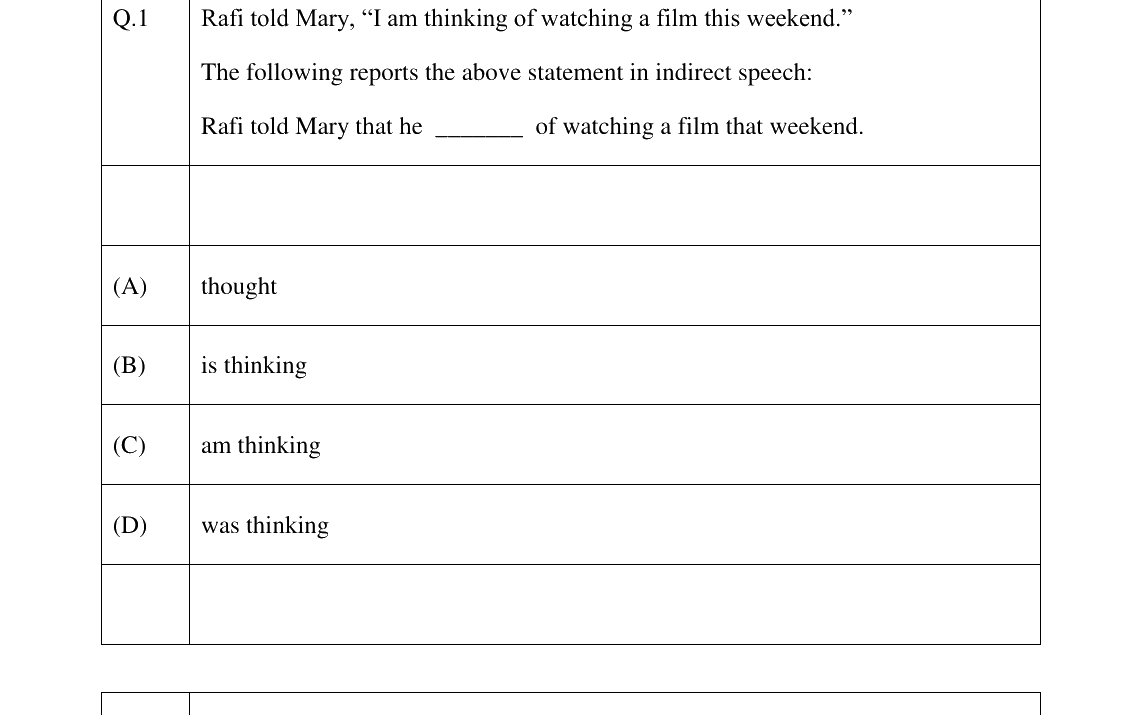

Q.1 · General Aptitude · 1 mark · MCQ
Show answer
Answer: D

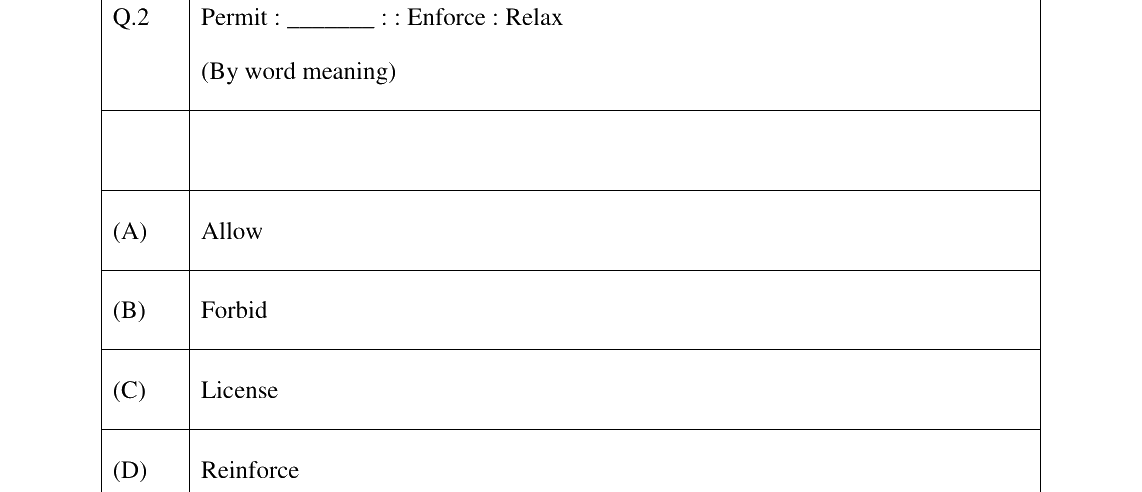

Q.2 · General Aptitude · 1 mark · MCQ
Show answer
Answer: B

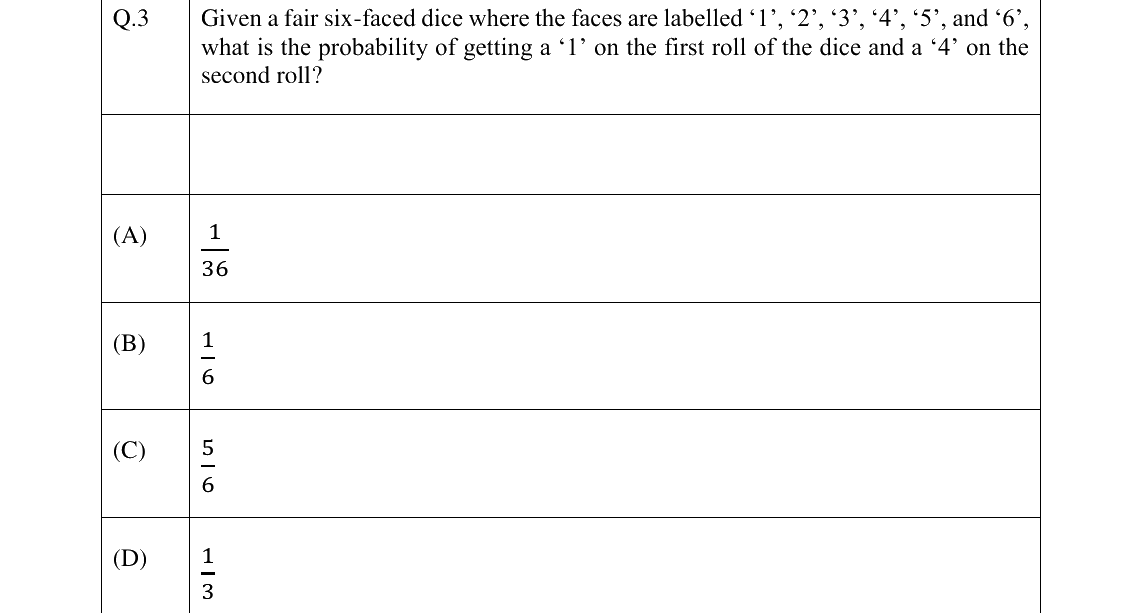

Q.3 · General Aptitude · 1 mark · MCQ
Show answer
Answer: A

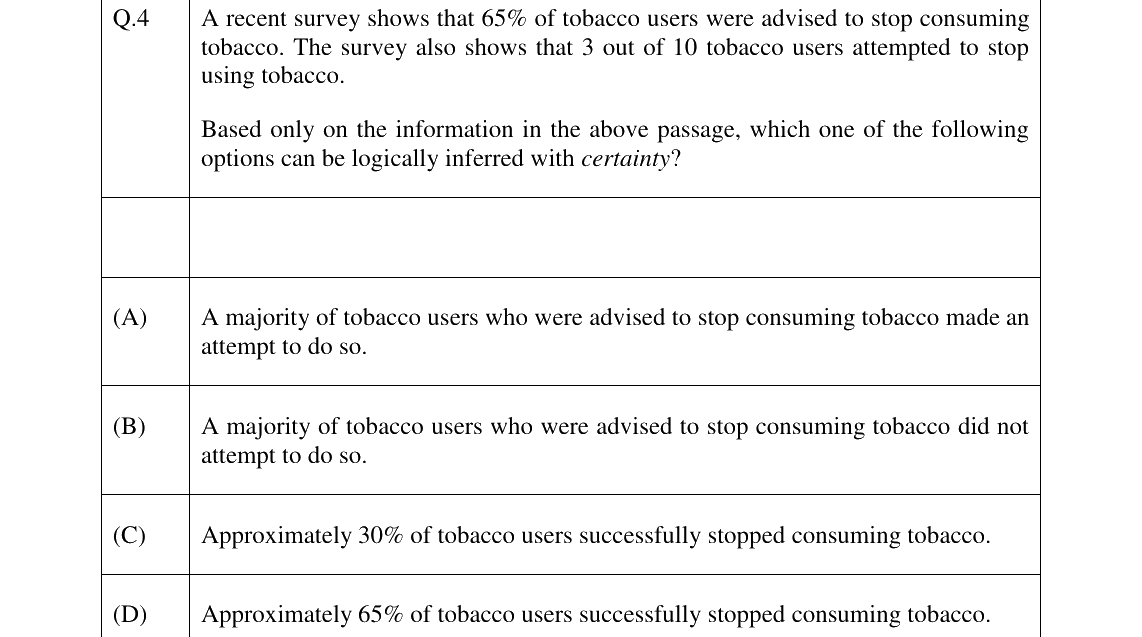

Q.4 · General Aptitude · 1 mark · MCQ
Show answer
Answer: B

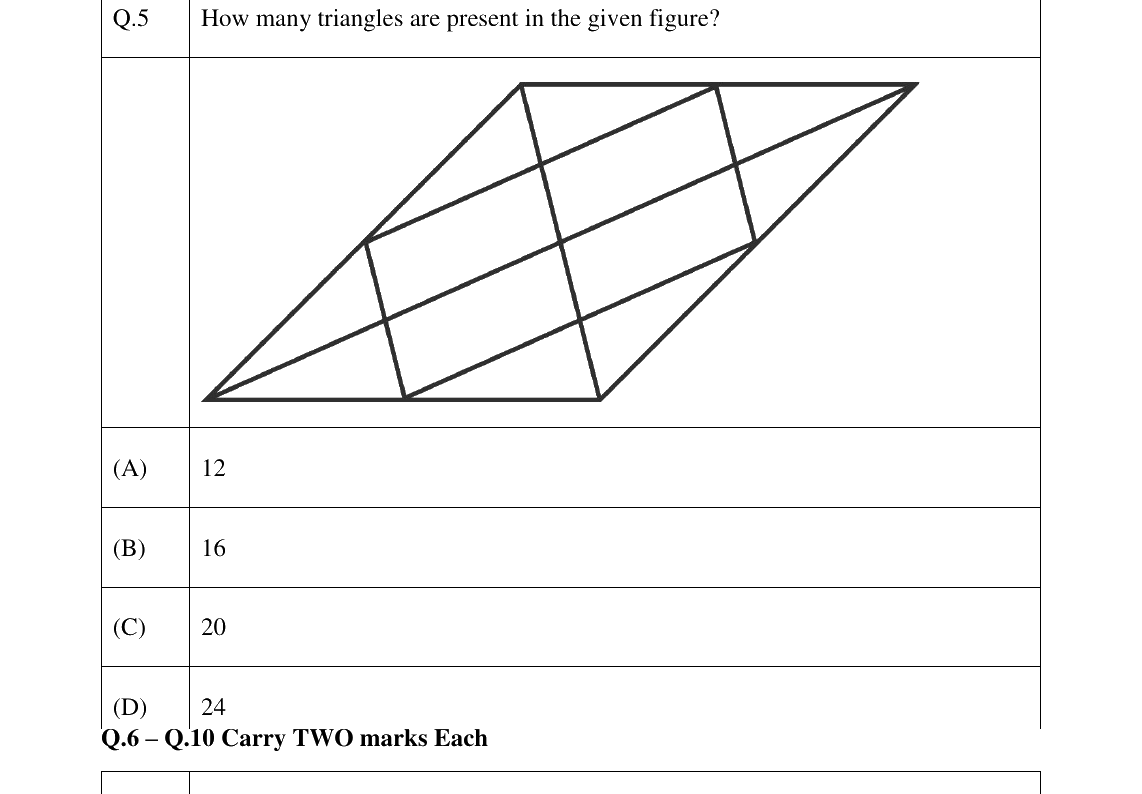

Q.5 · General Aptitude · 1 mark · MCQ
Show answer
Answer: C

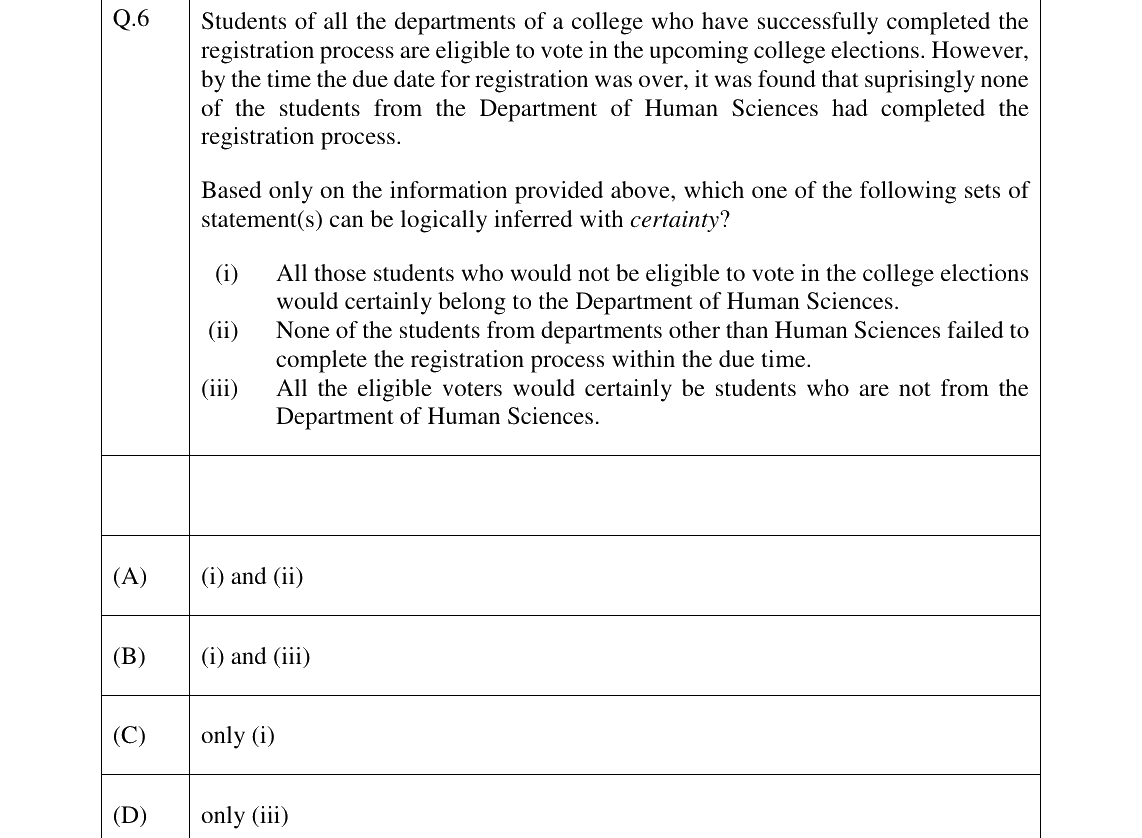

Q.6 · General Aptitude · 2 marks · MCQ
Show answer
Answer: D

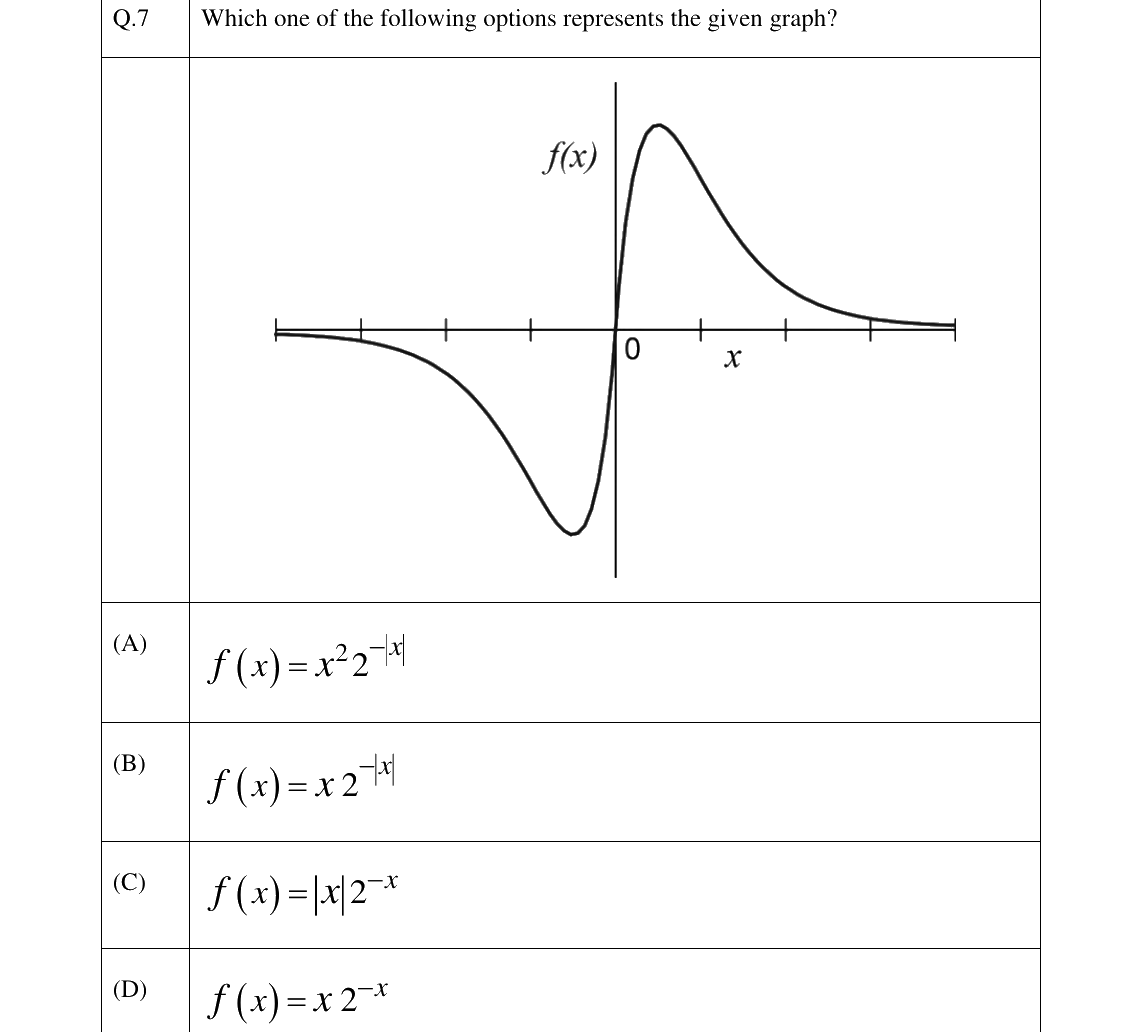

Q.7 · General Aptitude · 2 marks · MCQ
Show answer
Answer: B

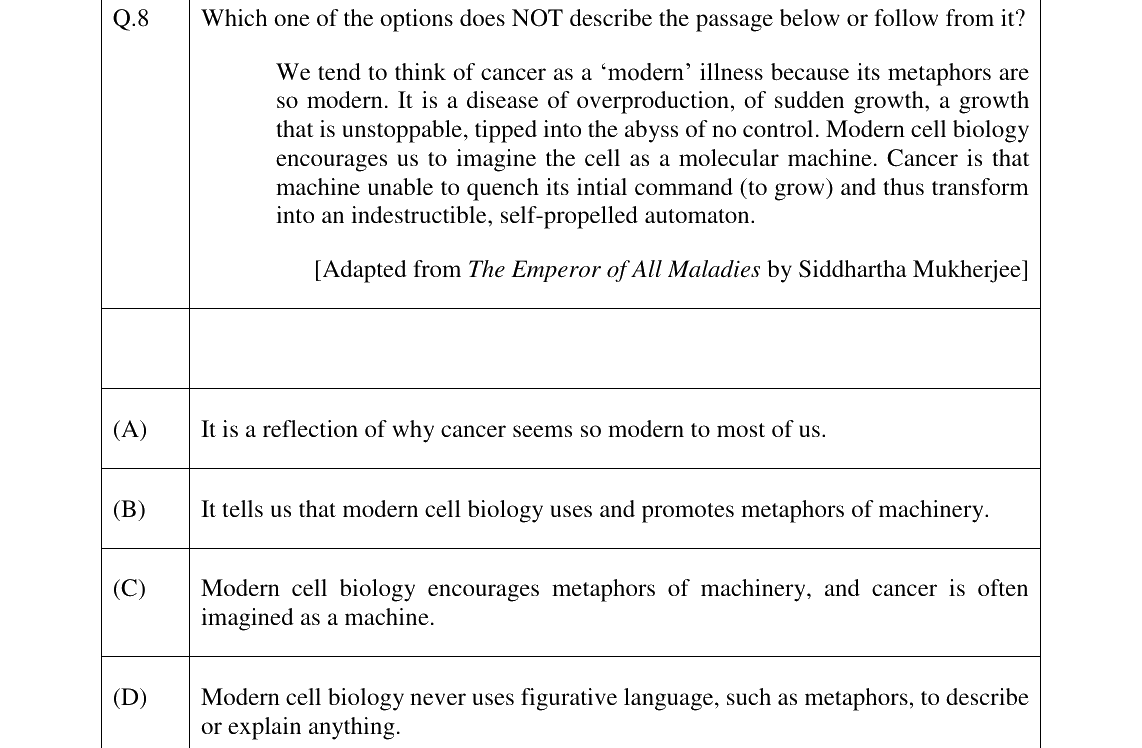

Q.8 · General Aptitude · 2 marks · MCQ
Show answer
Answer: D

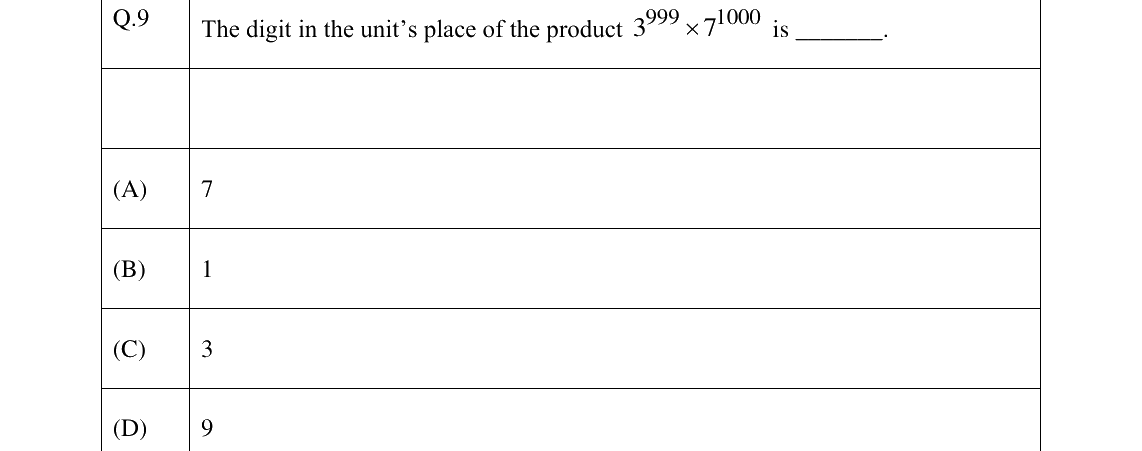

Q.9 · General Aptitude · 2 marks · MCQ
Show answer
Answer: A

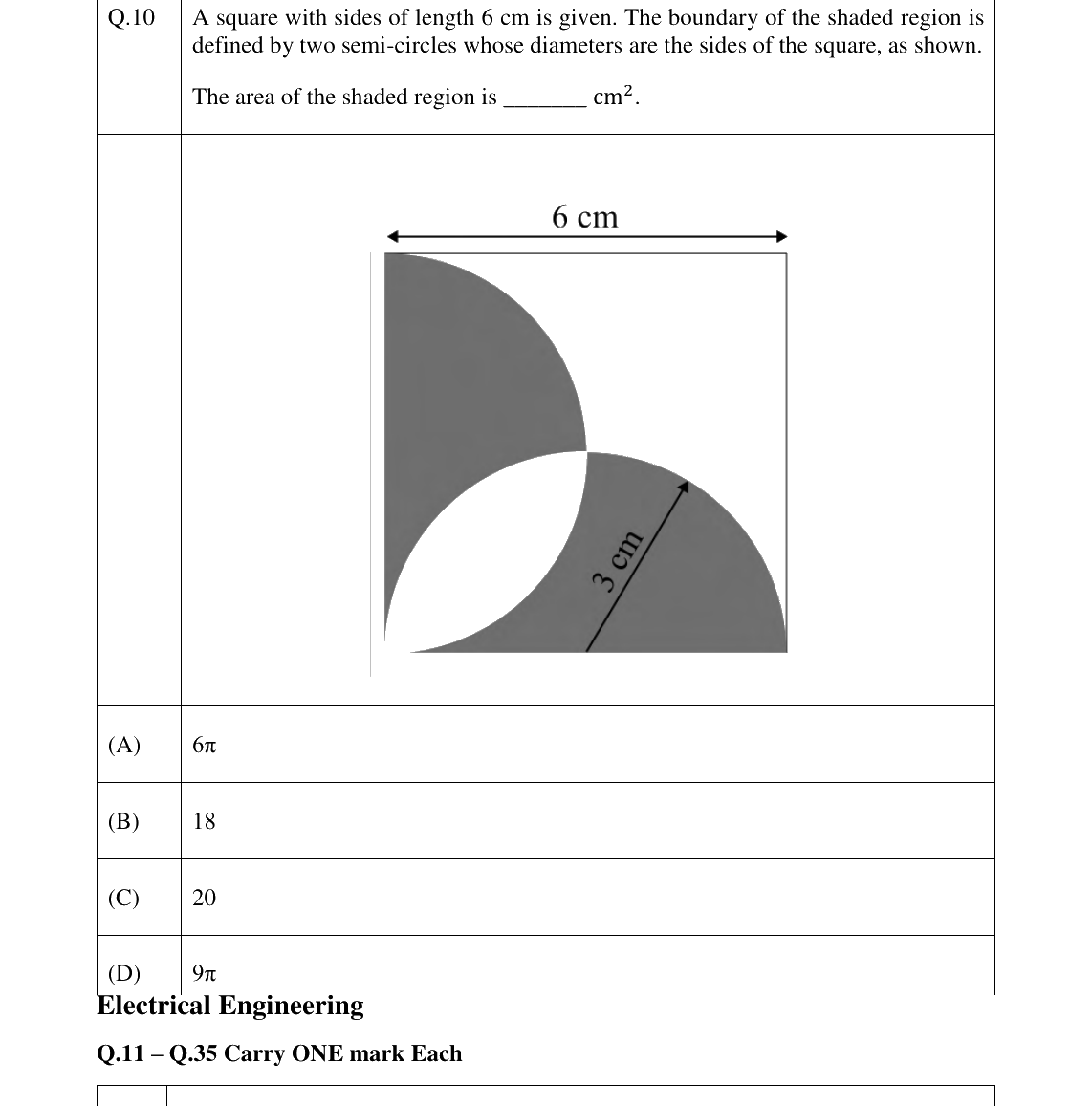

Q.10 · General Aptitude · 2 marks · MCQ
Show answer
Answer: B

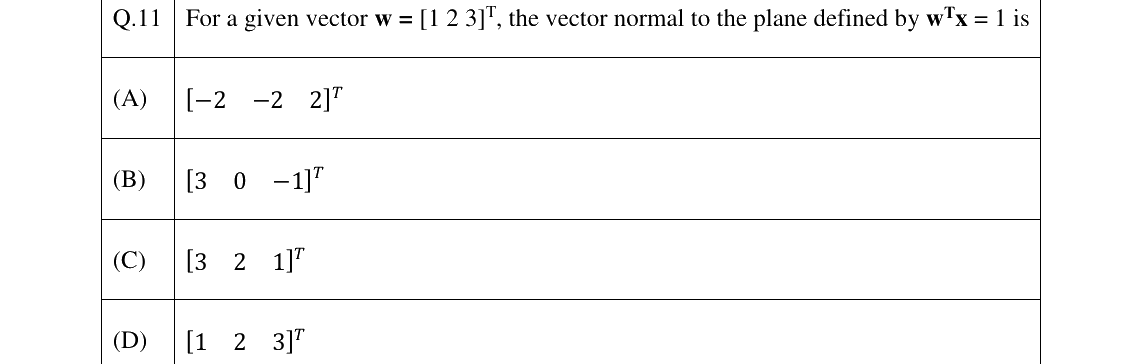

Q.11 · EE · 1 mark · MCQ
Show answer
Answer: D

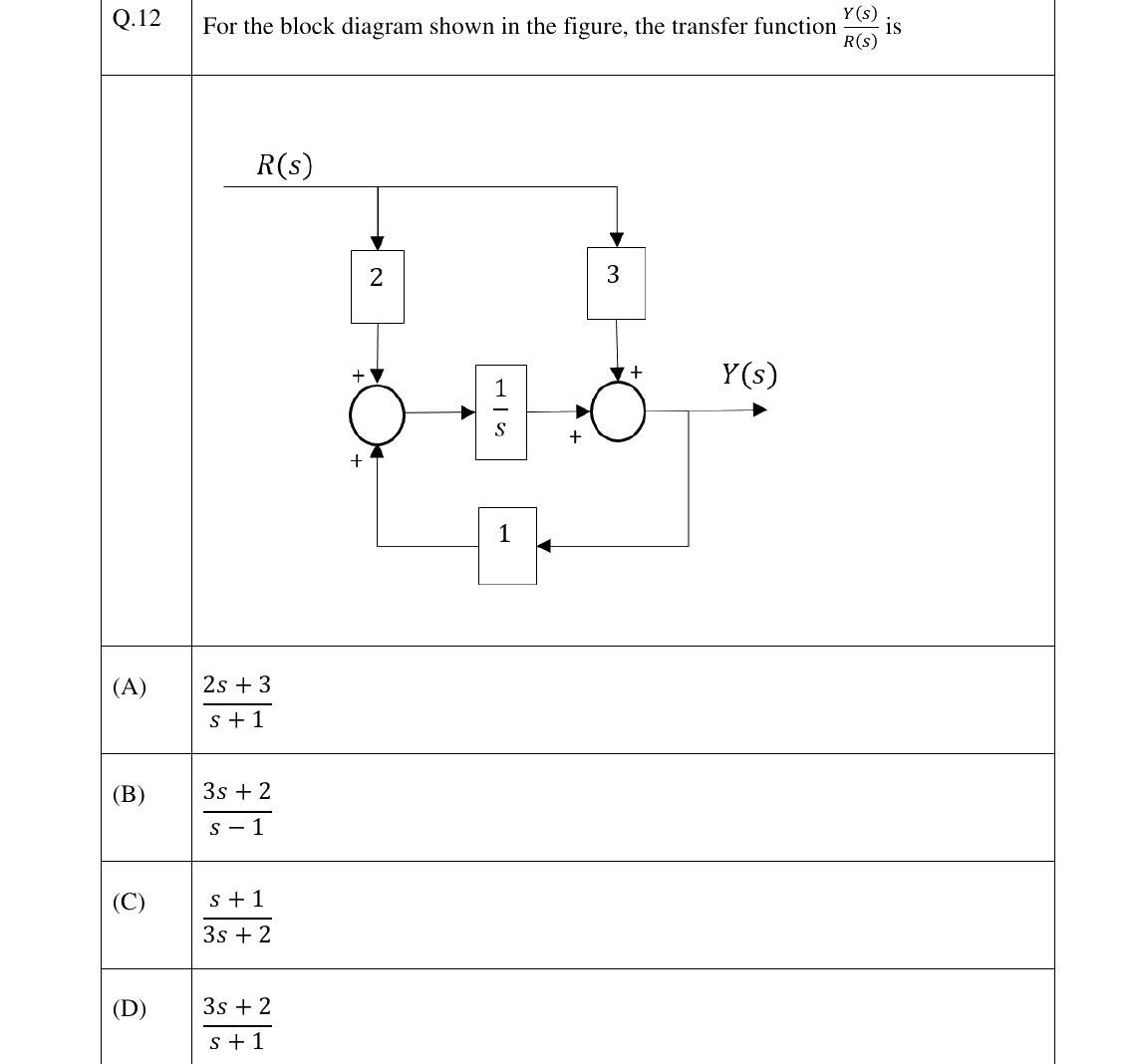

Q.12 · EE · 1 mark · MCQ
Show answer
Answer: B

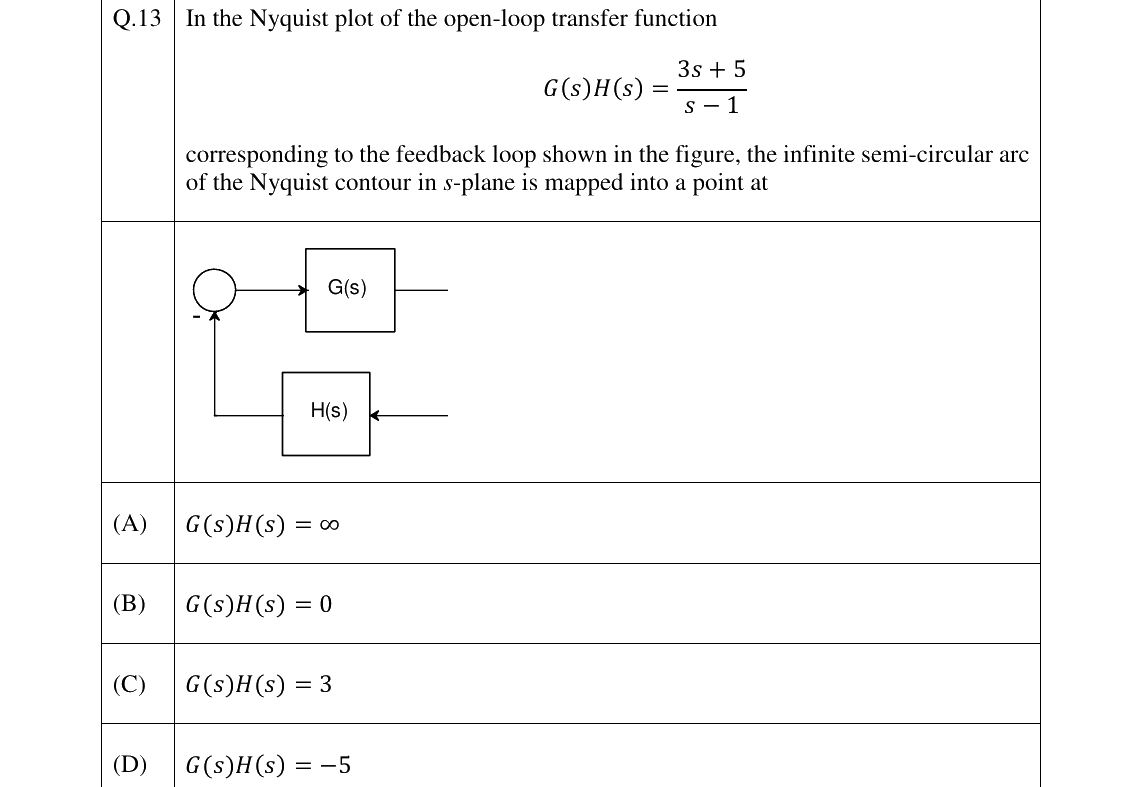

Q.13 · EE · 1 mark · MCQ
Show answer
Answer: C

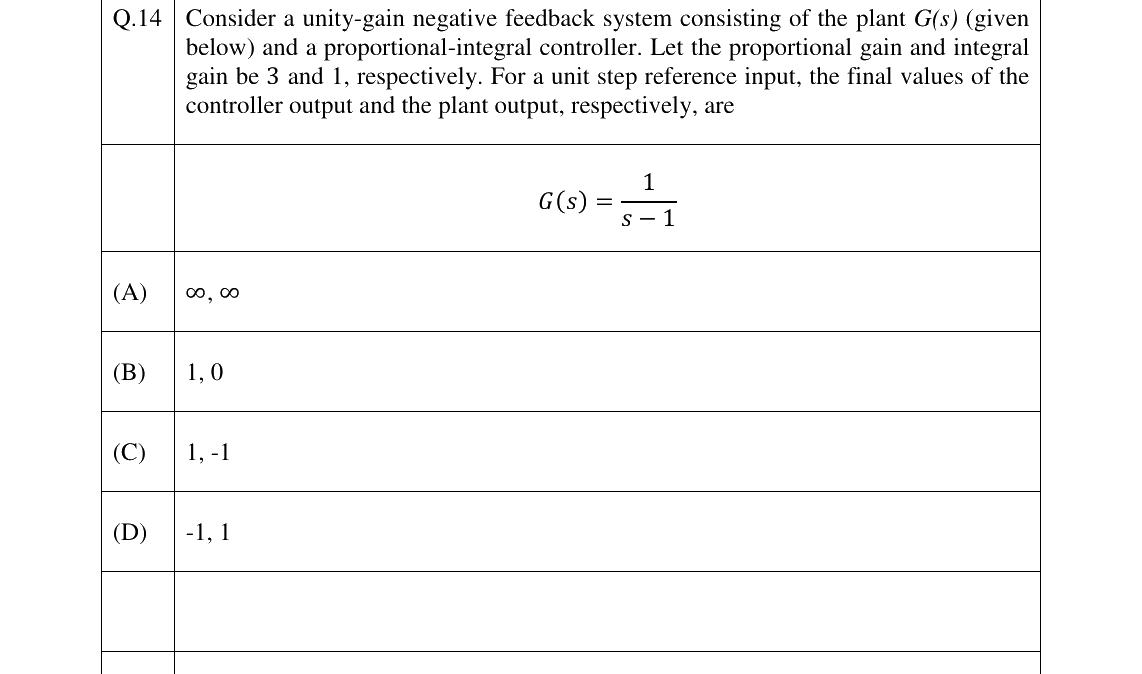

Q.14 · EE · 1 mark · MCQ
Show answer
Answer: D

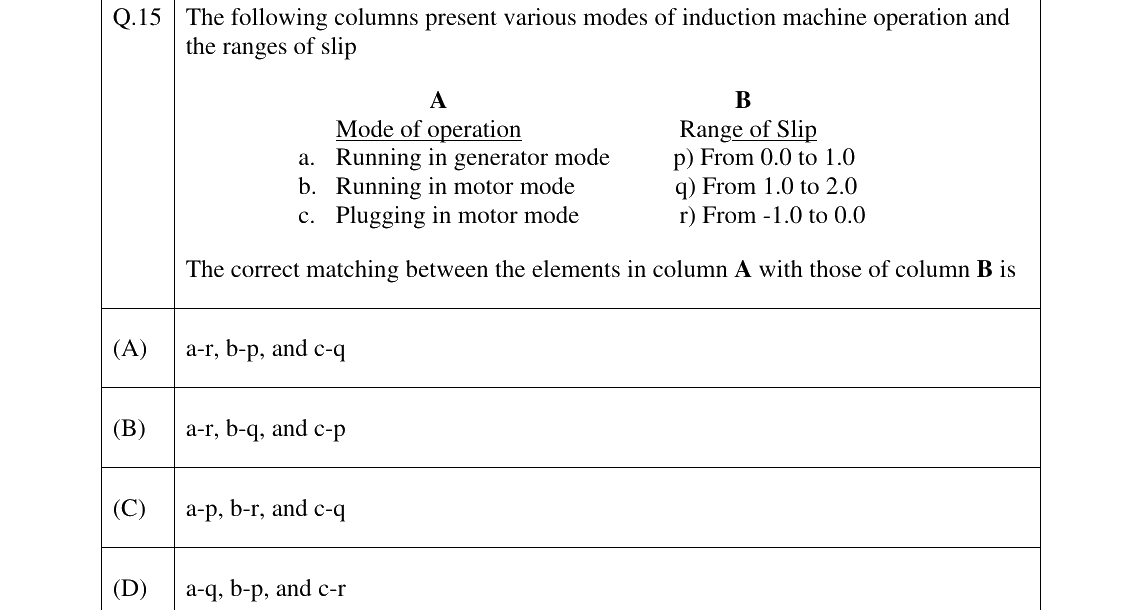

Q.15 · EE · 1 mark · MCQ
Show answer
Answer: A

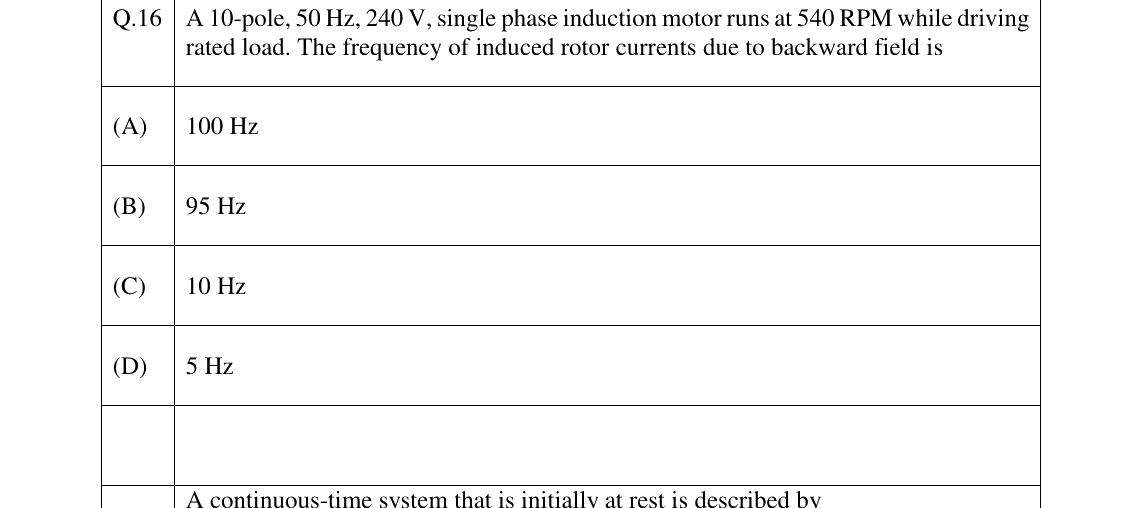

Q.16 · EE · 1 mark · MCQ
Show answer
Answer: B

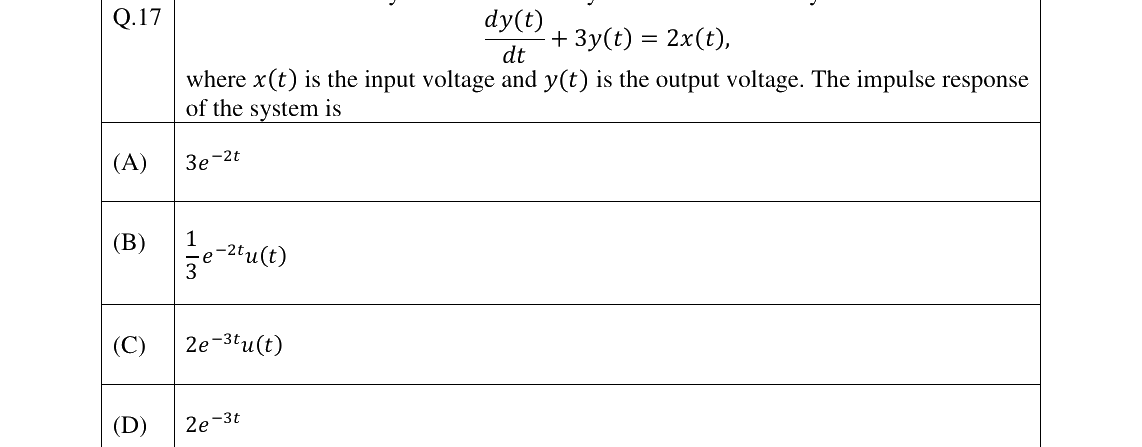

Q.17 · EE · 1 mark · MCQ
Show answer
Answer: C

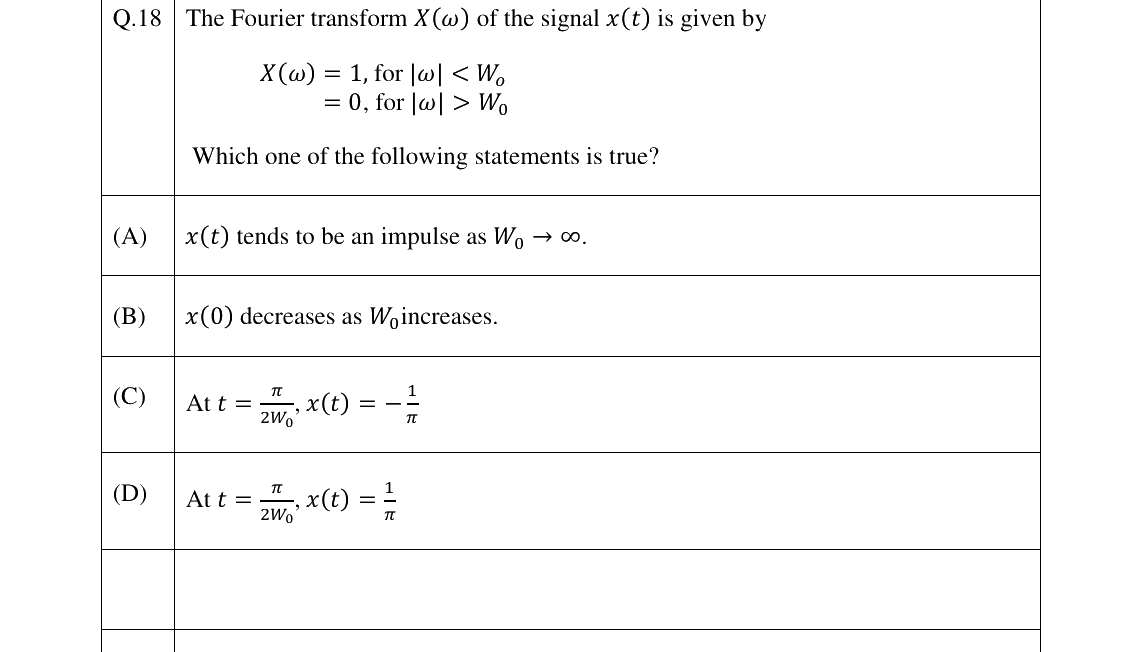

Q.18 · EE · 1 mark · MCQ
Show answer
Answer: A

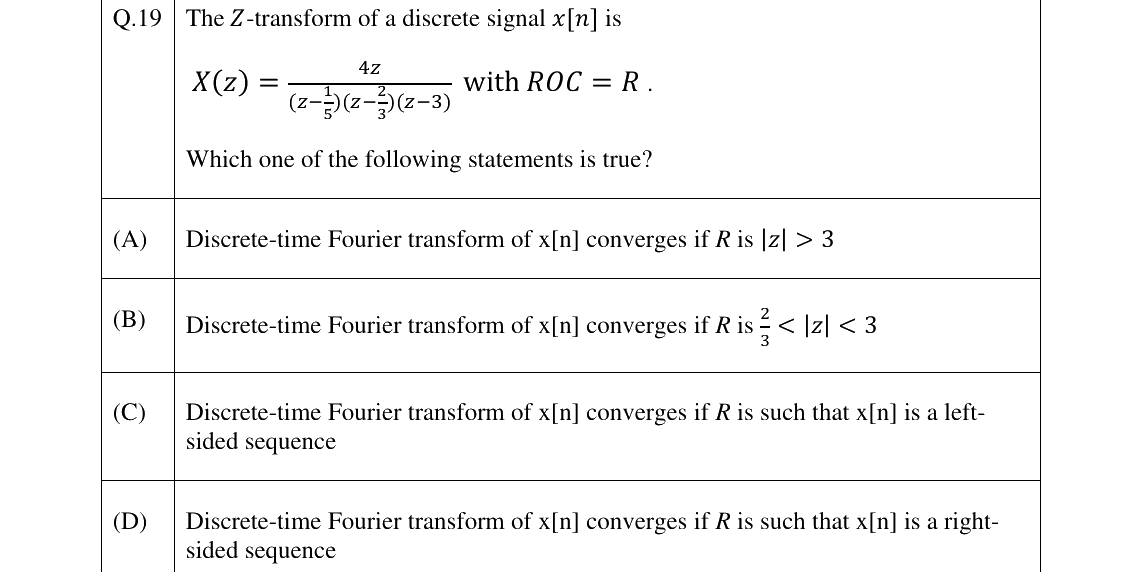

Q.19 · EE · 1 mark · MCQ
Show answer
Answer: B

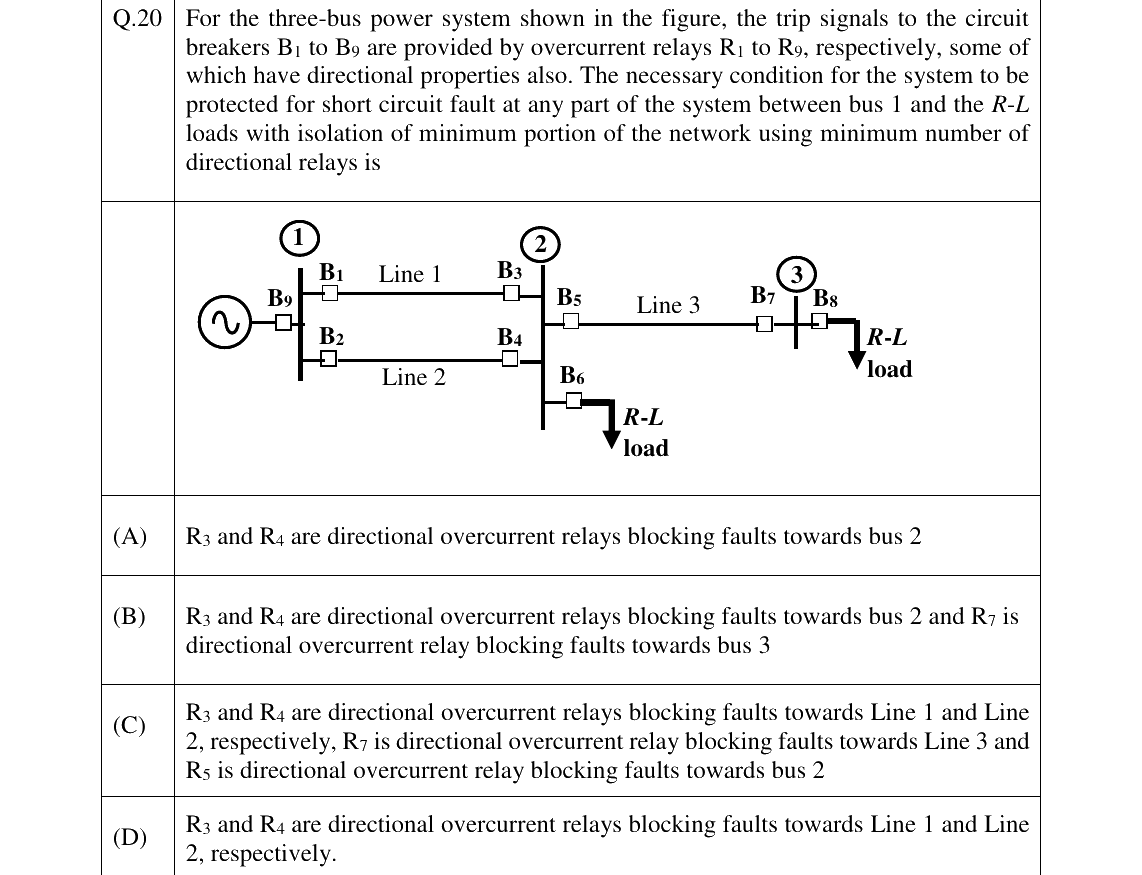

Q.20 · EE · 1 mark · MCQ
Show answer
Answer: A

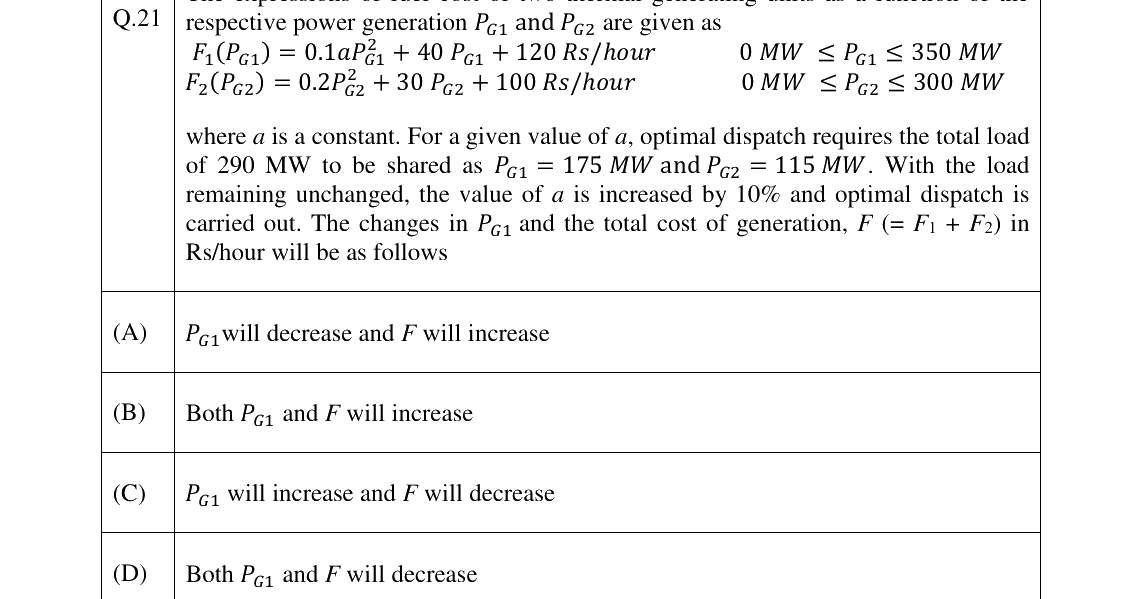

Q.21 · EE · 1 mark · MCQ
Show answer
Answer: A

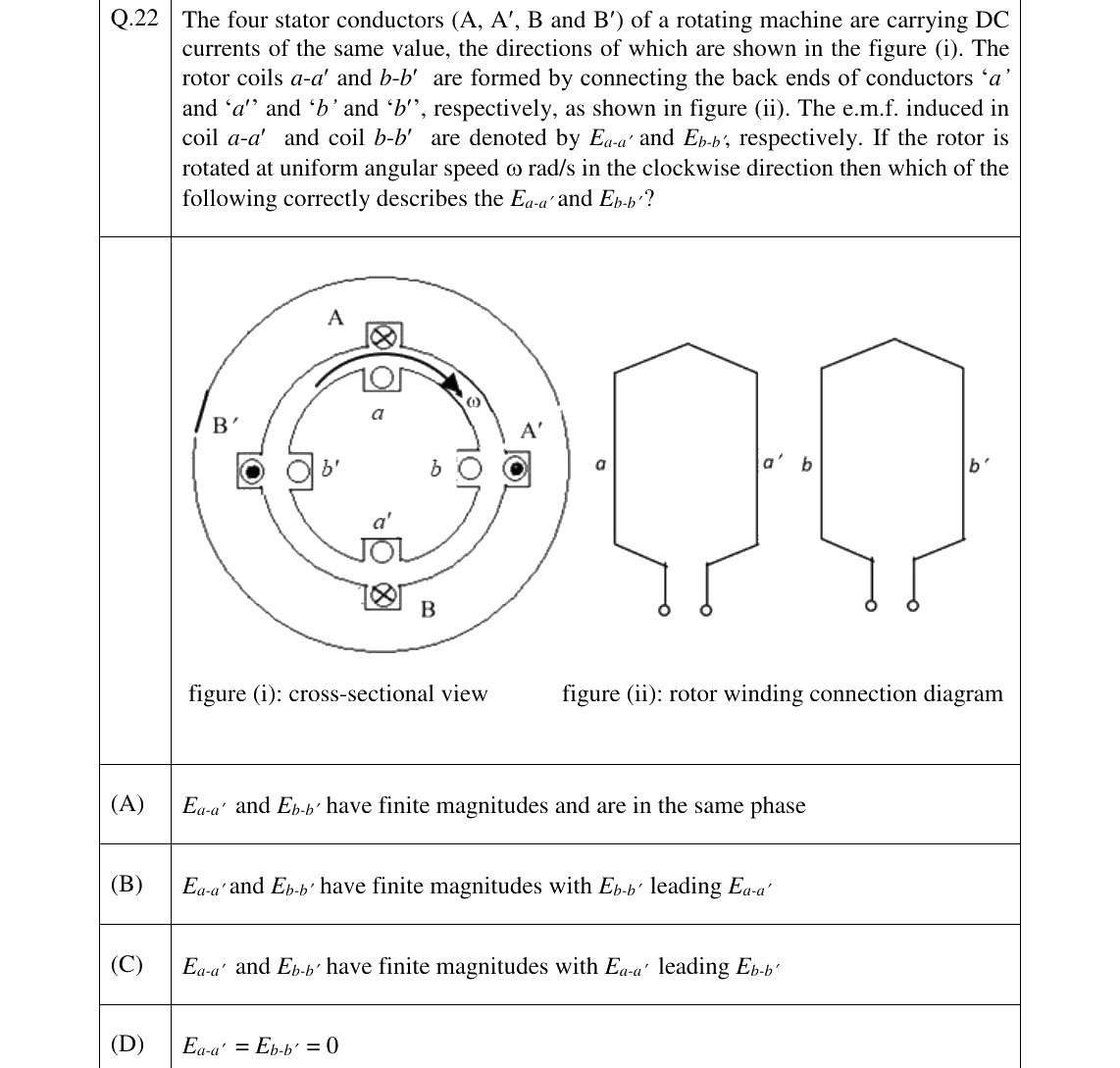

Q.22 · EE · 1 mark · MCQ
Show answer
Answer: D

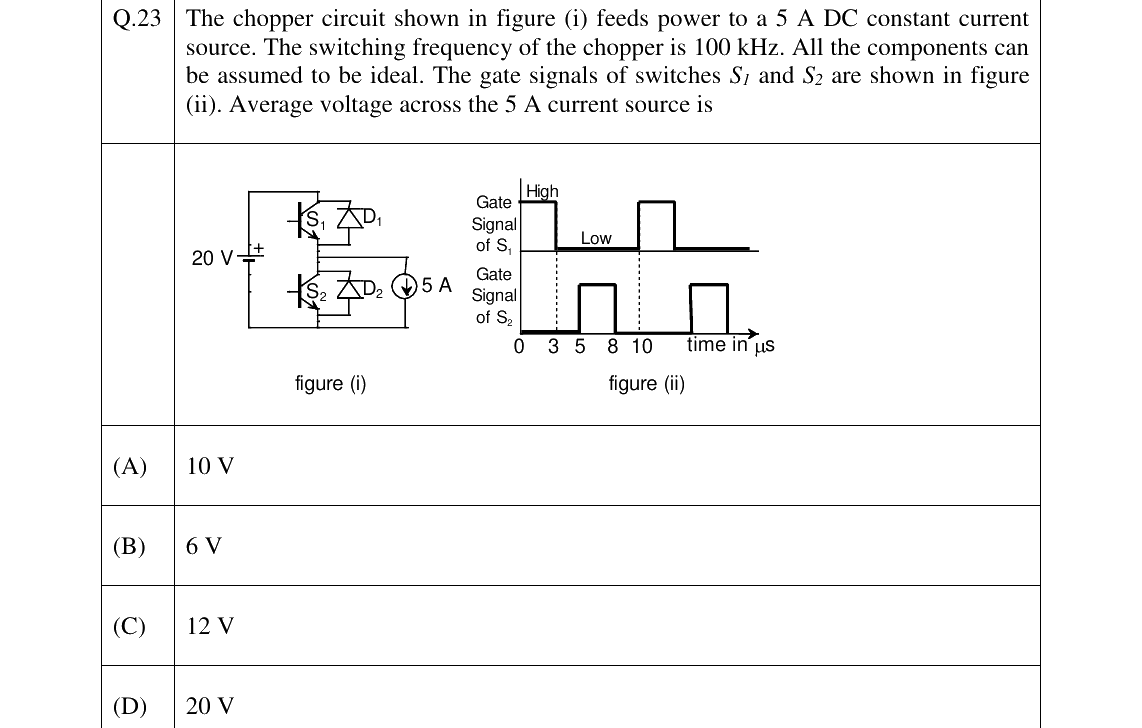

Q.23 · EE · 1 mark · MCQ
Show answer
Answer: B

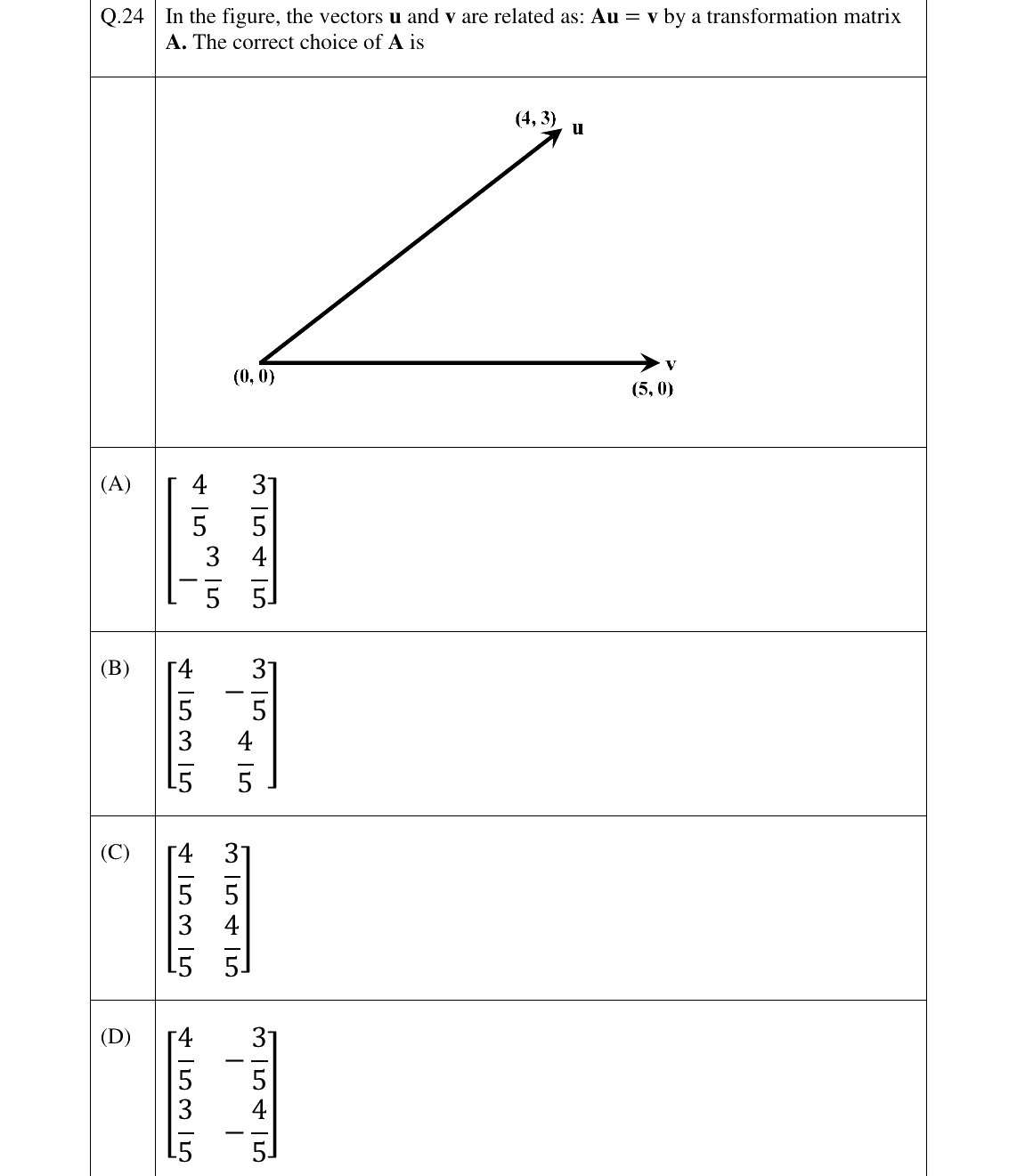

Q.24 · EE · 1 mark · MCQ
Show answer
Answer: A

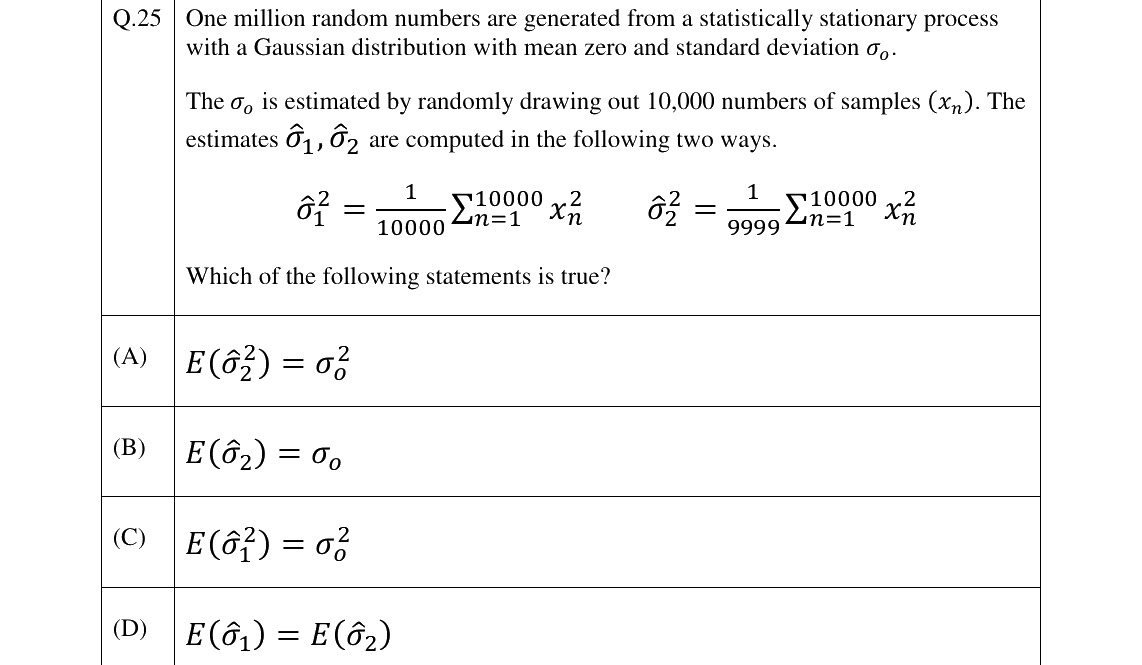

Q.25 · EE · 1 mark · MCQ
Show answer
Answer: C

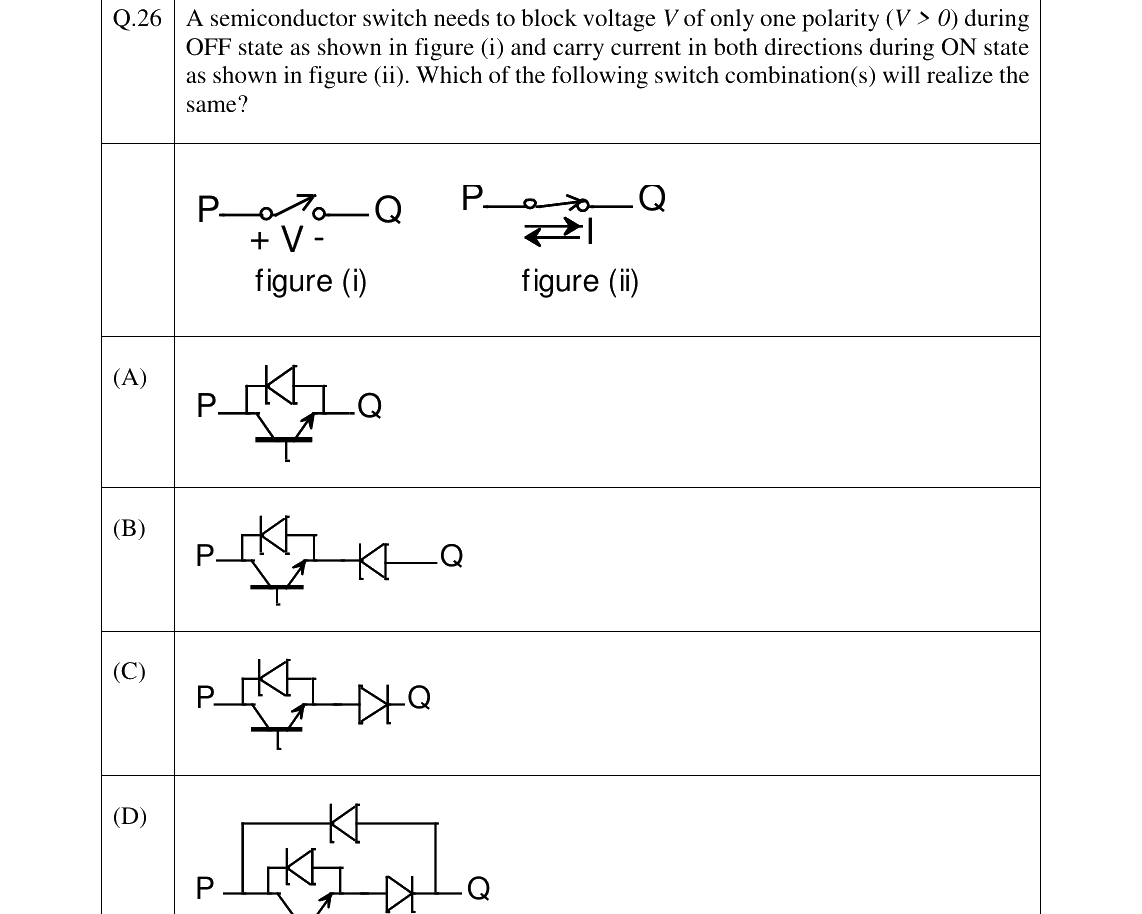

Q.26 · EE · 1 mark · MSQ
Show answer
Answer: A, D

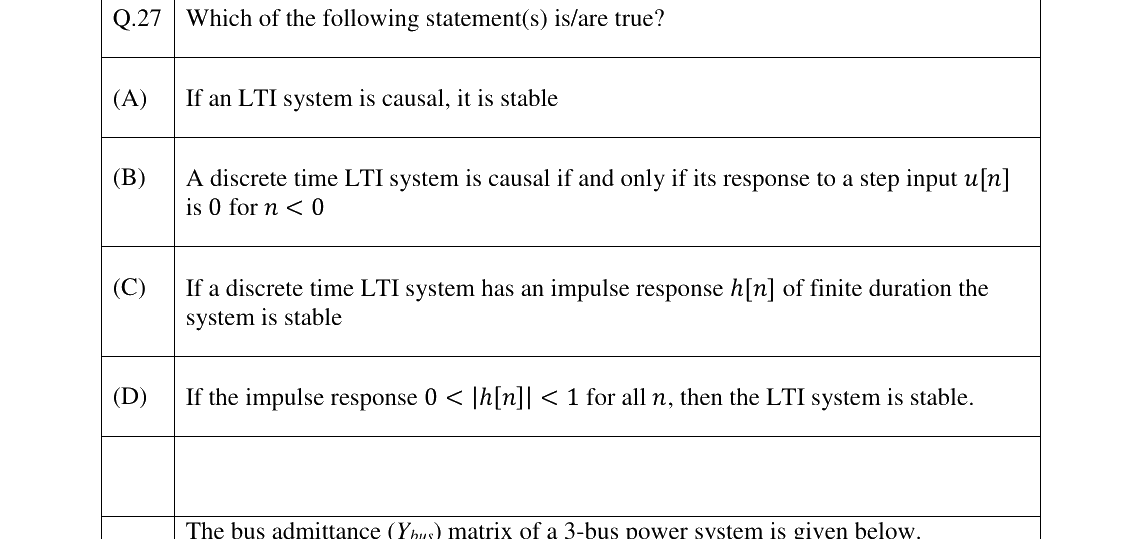

Q.27 · EE · 1 mark · MSQ
Show answer
Answer: B

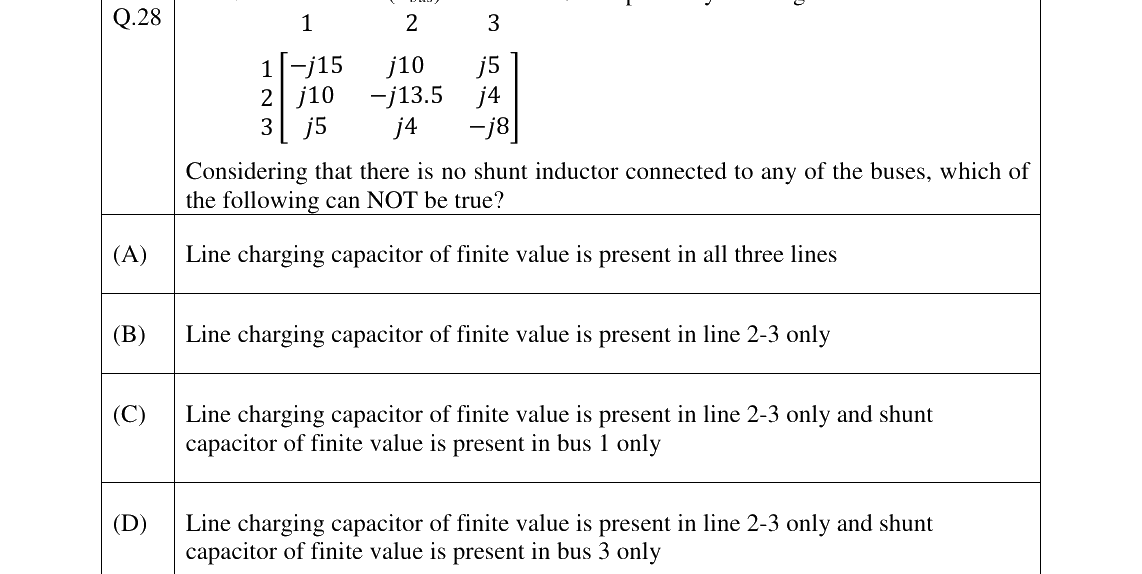

Q.28 · EE · 1 mark · MSQ
Show answer
Answer: A, C

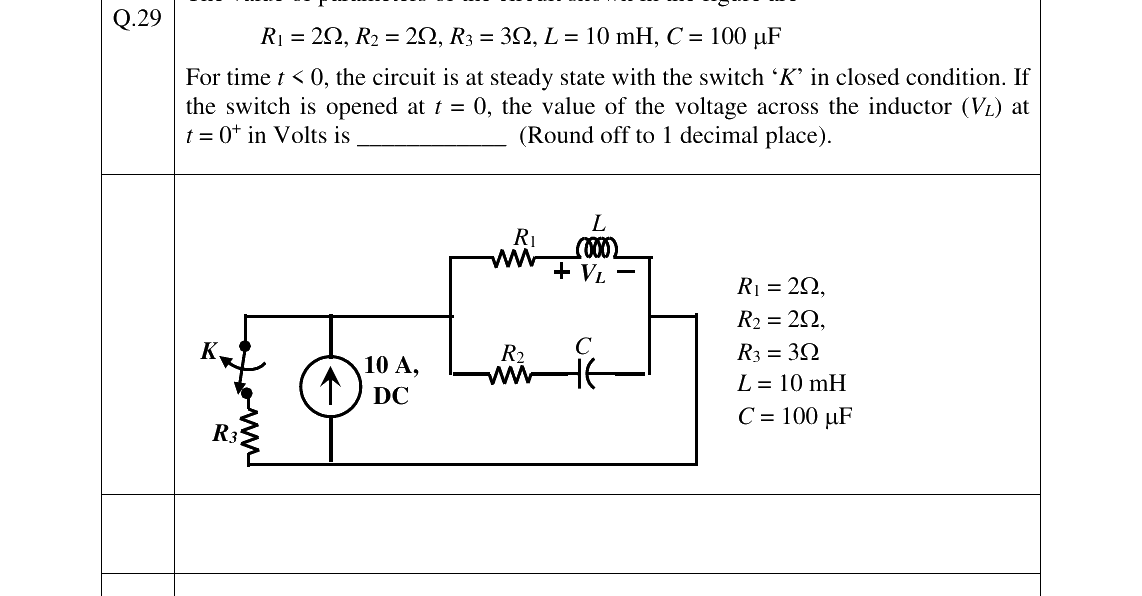

Q.29 · EE · 1 mark · NAT
Show answer
Answer: 7.9 to 8.1

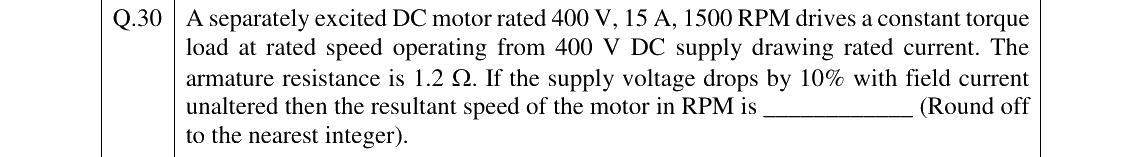

Q.30 · EE · 1 mark · NAT
Show answer
Answer: 1340 to 1345

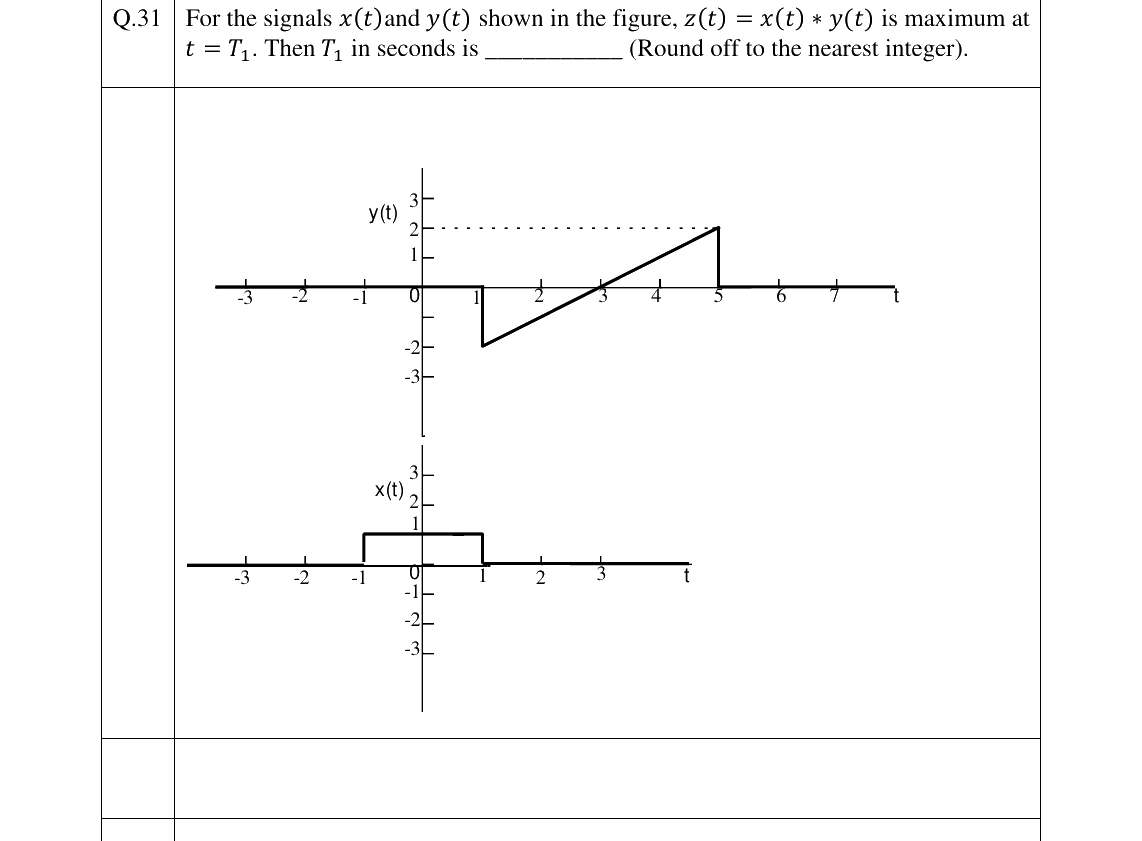

Q.31 · EE · 1 mark · NAT
Show answer
Answer: 4

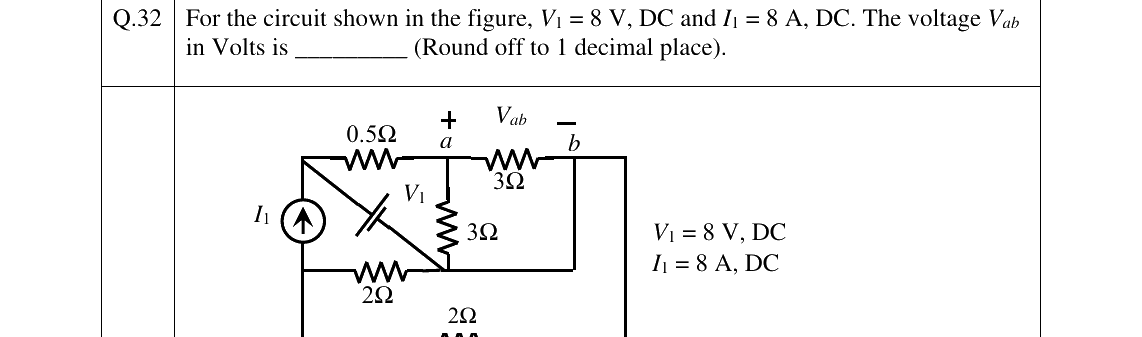

Q.32 · EE · 1 mark · NAT
Show answer
Answer: 5.9 to 6.1

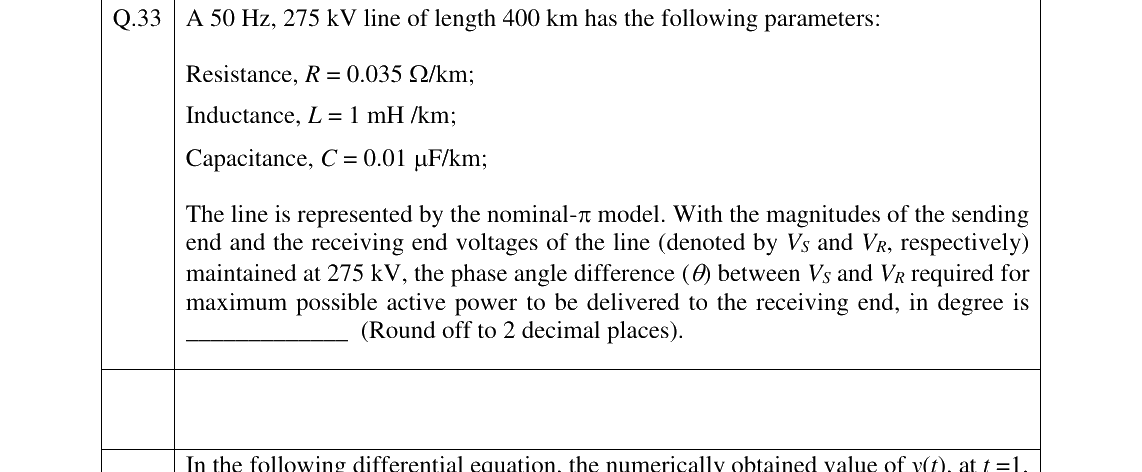

Q.33 · EE · 1 mark · NAT
Show answer
Answer: 83 to 84

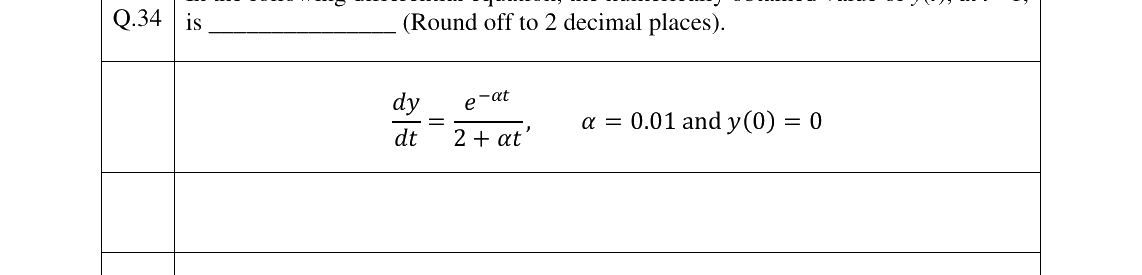

Q.34 · EE · 1 mark · NAT
Show answer
Answer: 0.48 to 0.52

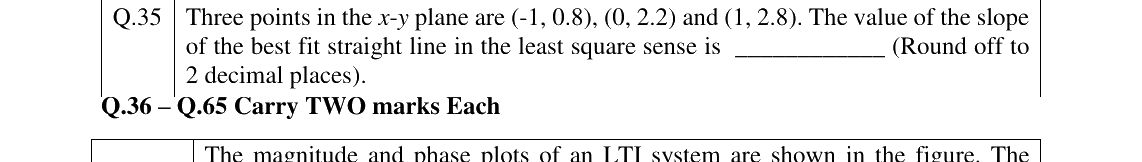

Q.35 · EE · 1 mark · NAT
Show answer
Answer: 0.9 to 1.1

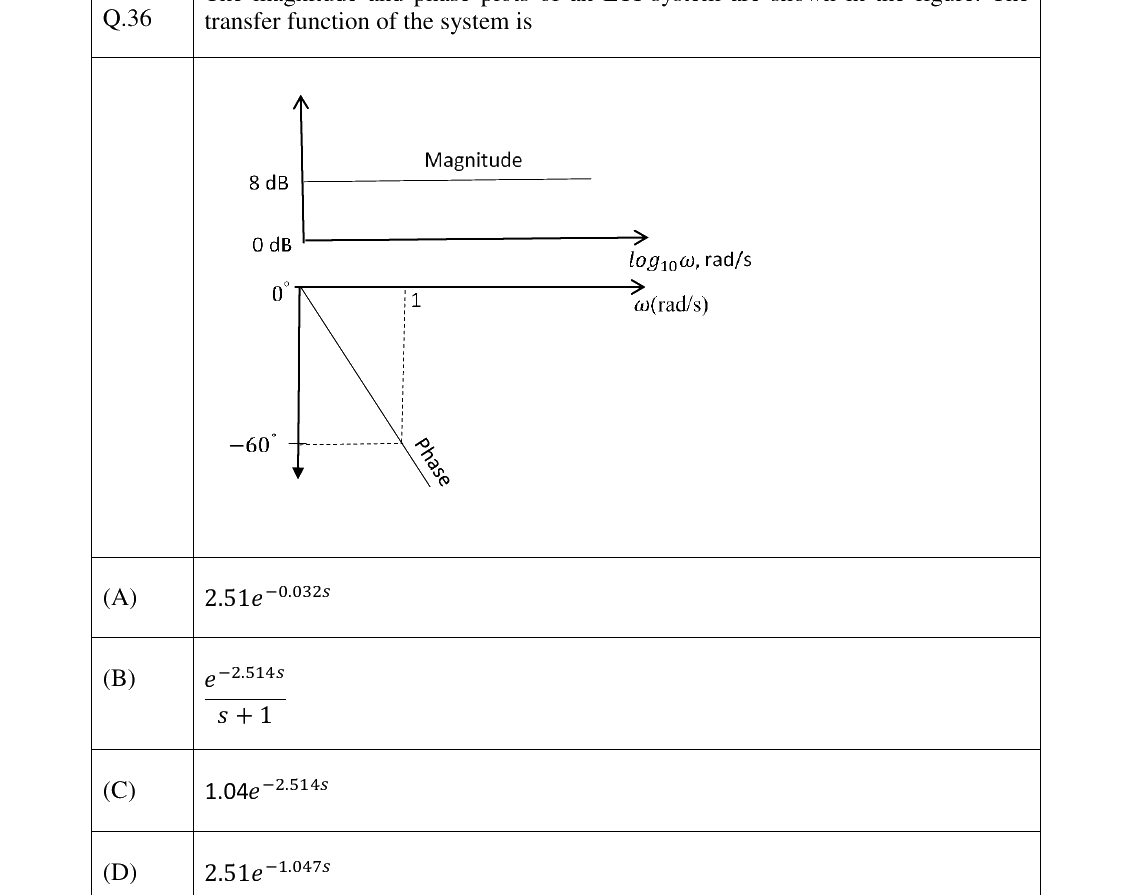

Q.36 · EE · 2 marks · MCQ
Show answer
Answer: D

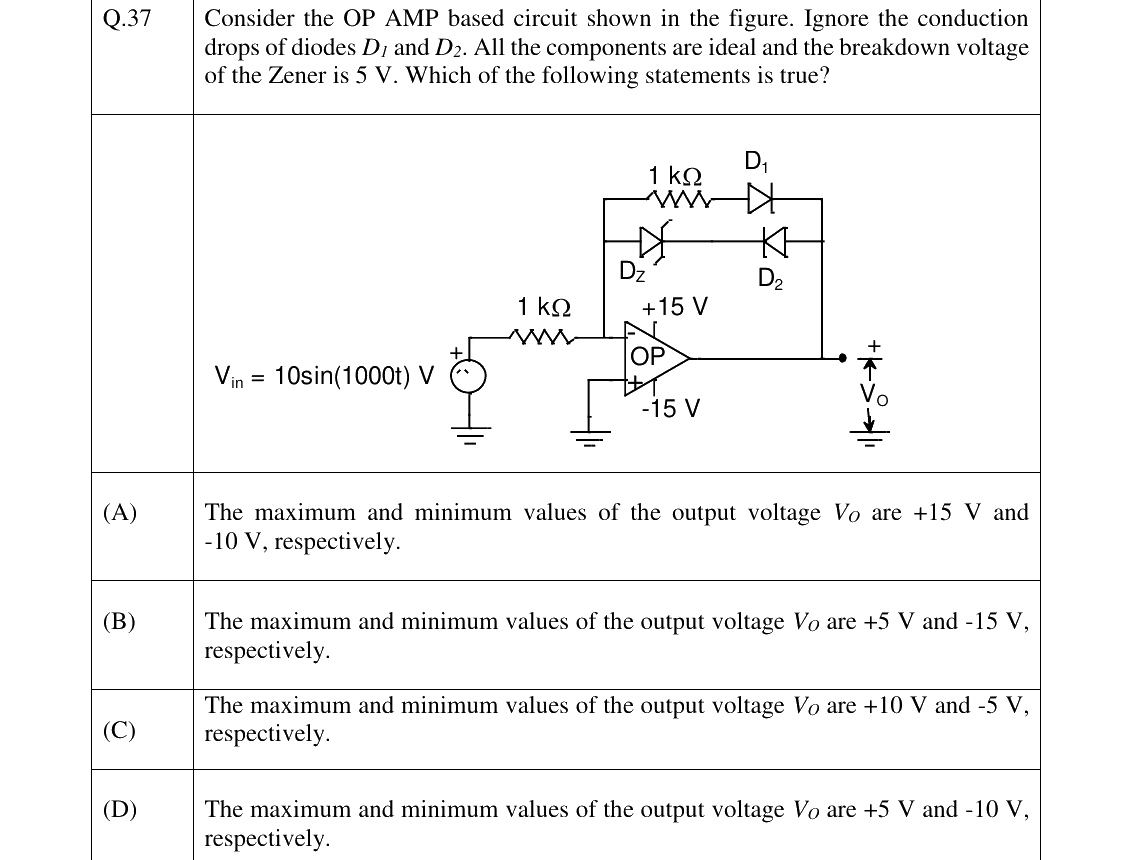

Q.37 · EE · 2 marks · MCQ
Show answer
Answer: D

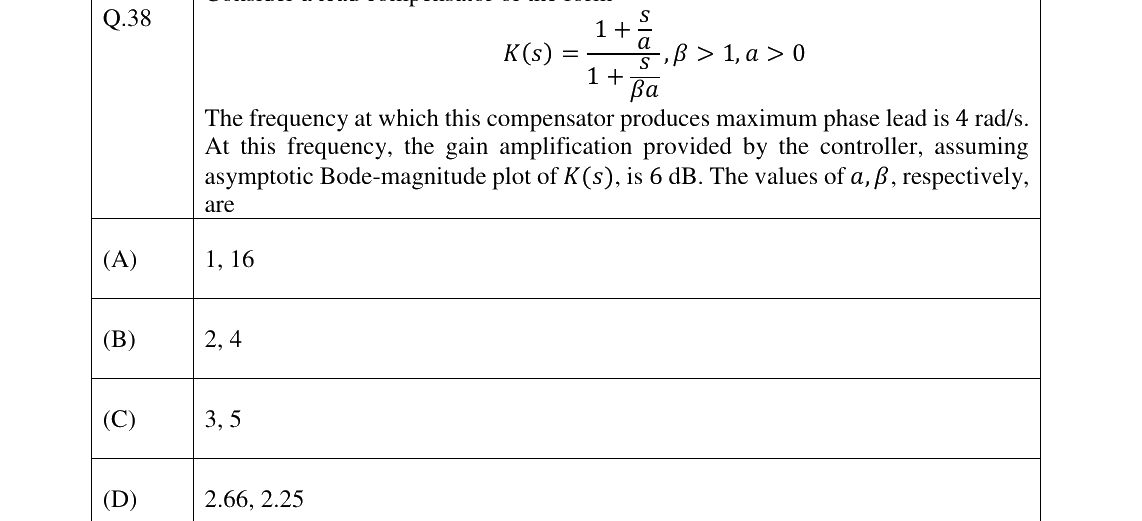

Q.38 · EE · 2 marks · MCQ
Show answer
Answer: B

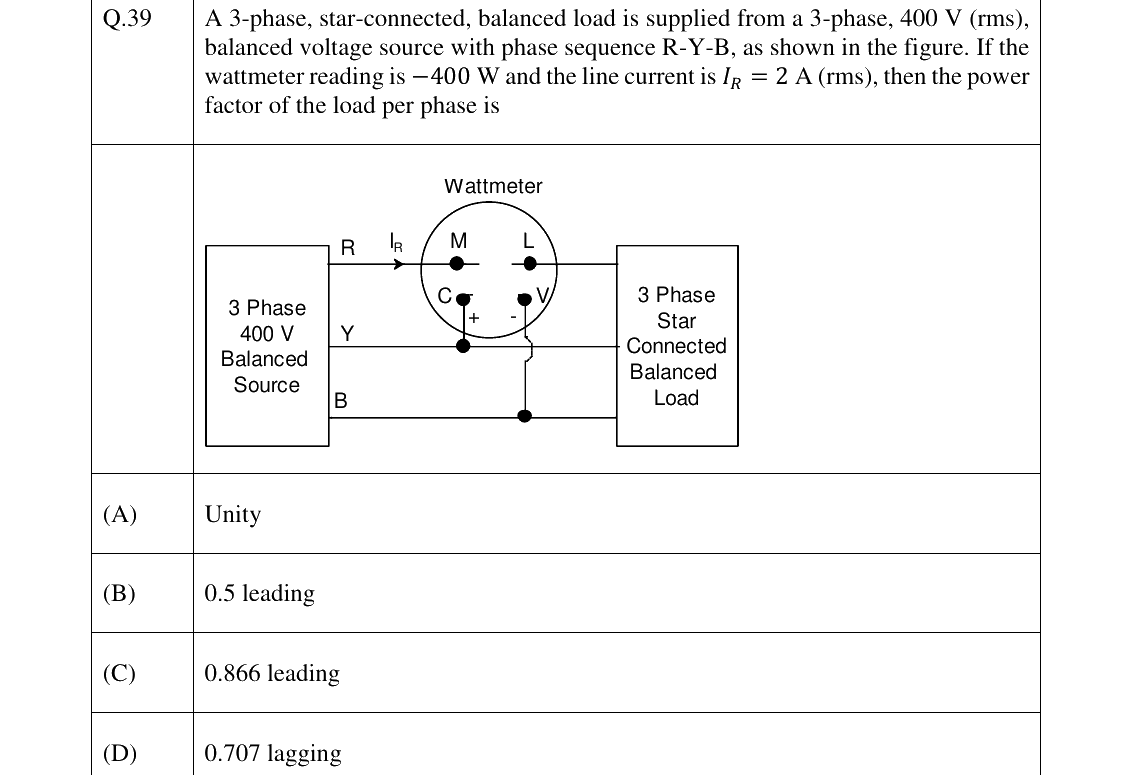

Q.39 · EE · 2 marks · MCQ
Show answer
Answer: C

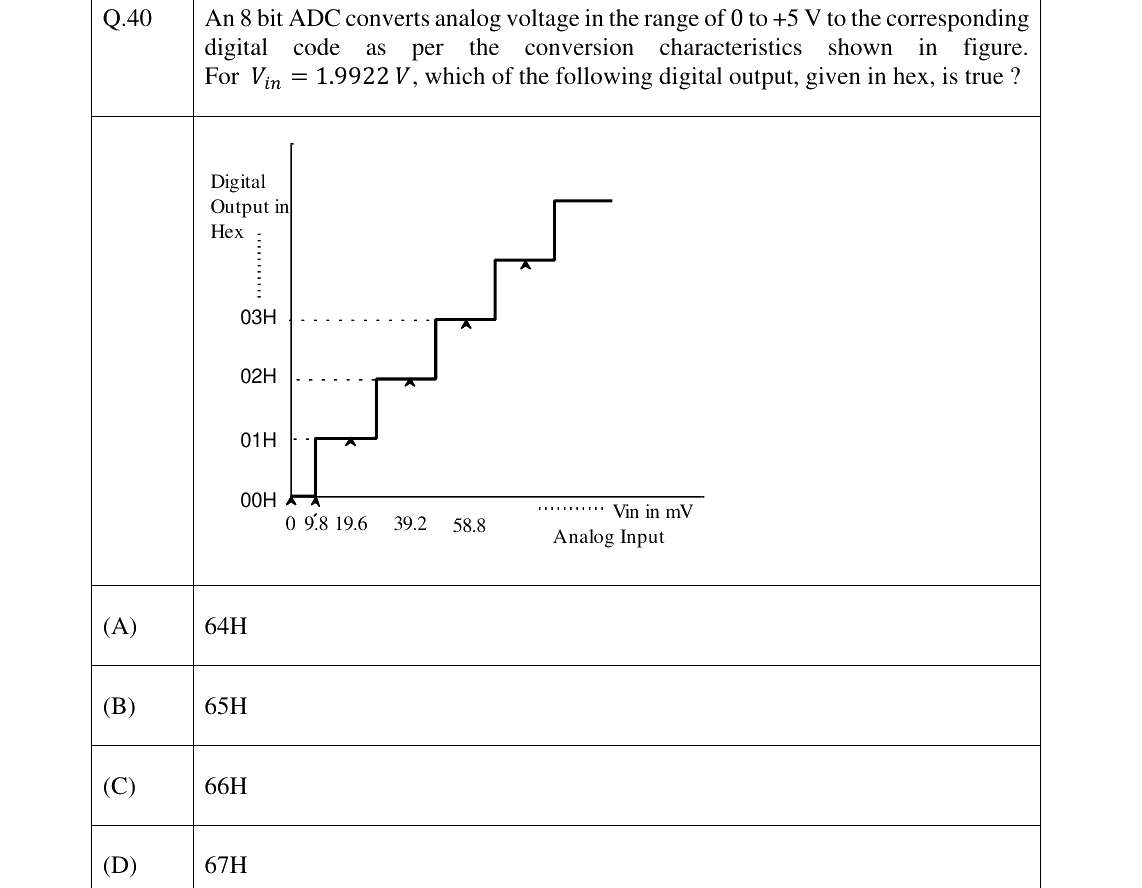

Q.40 · EE · 2 marks · MCQ
Show answer
Answer: C

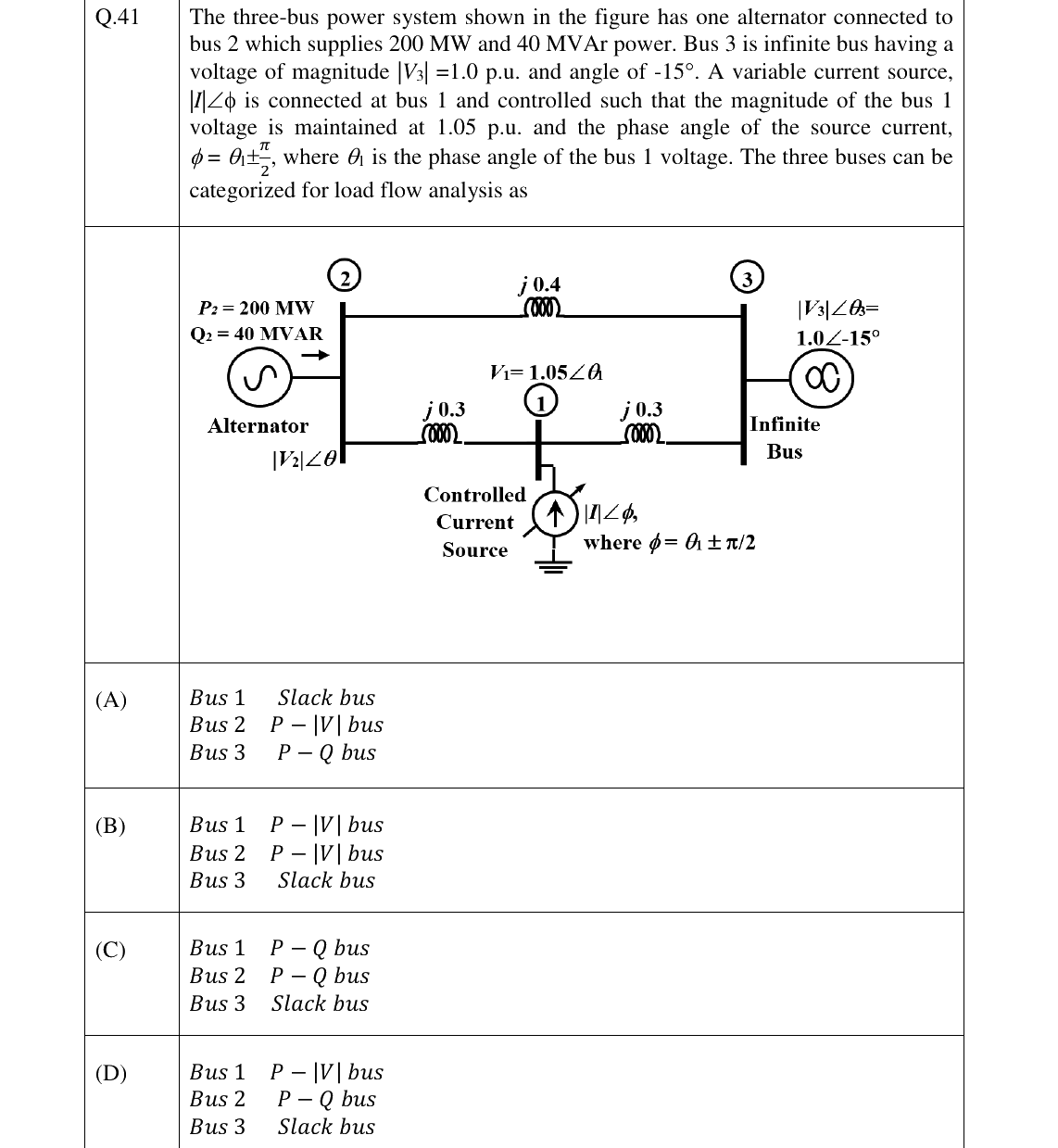

Q.41 · EE · 2 marks · MCQ
Show answer
Answer: D

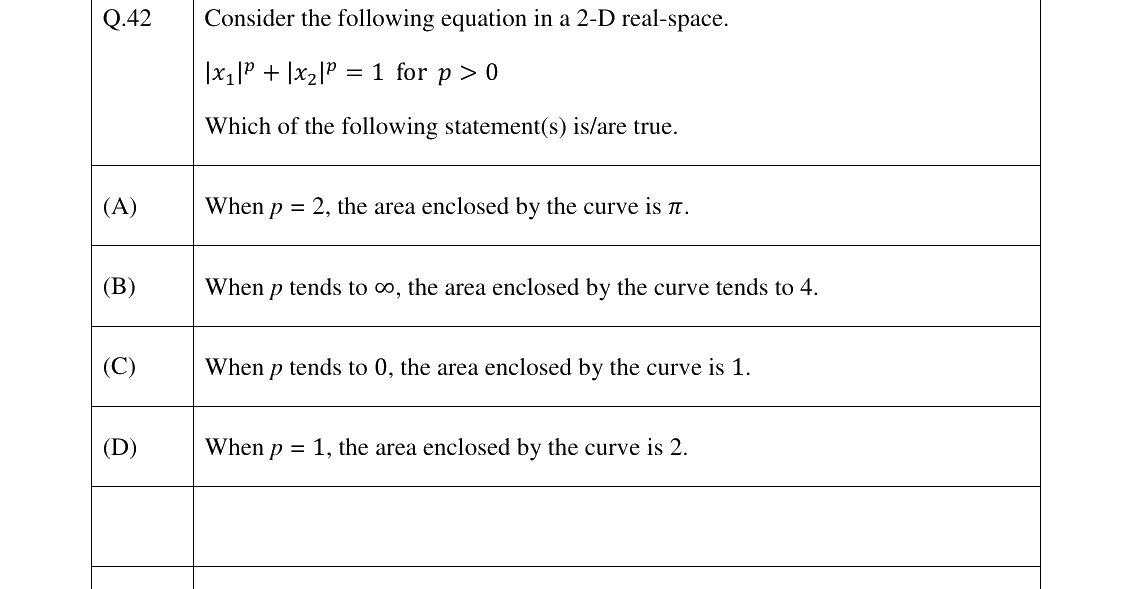

Q.42 · EE · 2 marks · MSQ
Show answer
Answer: A, B, D

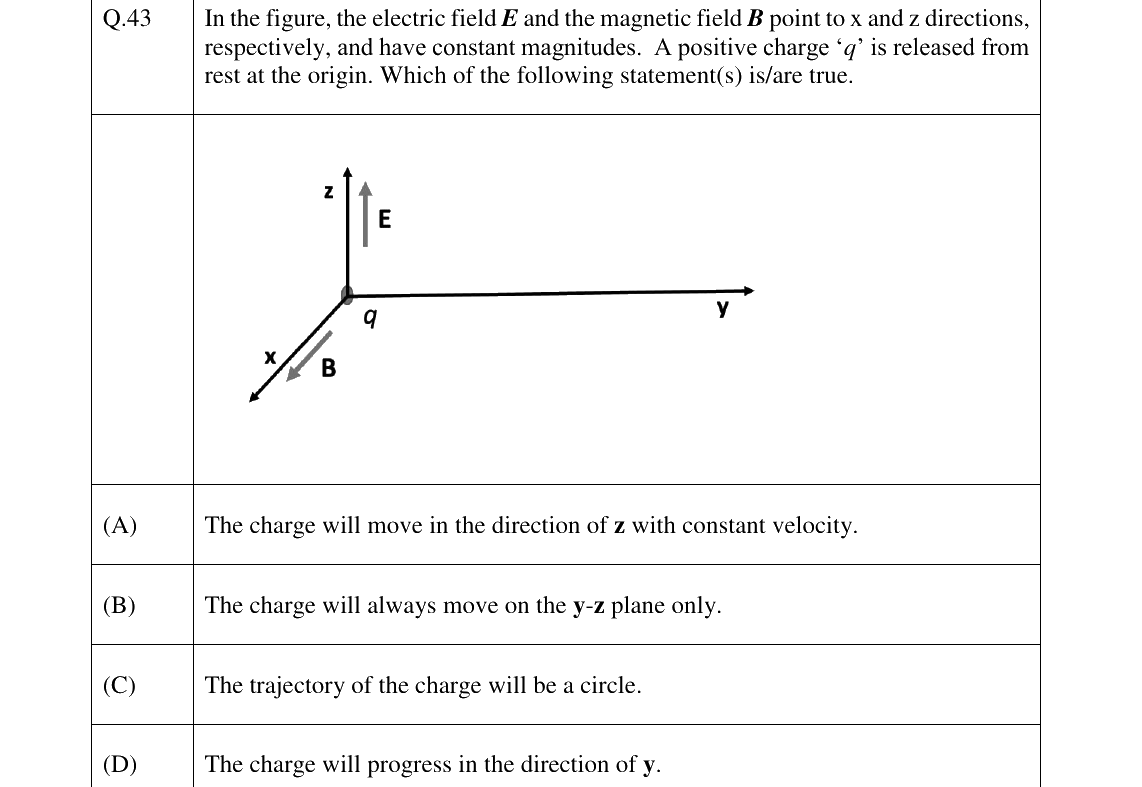

Q.43 · EE · 2 marks · MSQ
Show answer
Answer: Marks to all (question dropped)

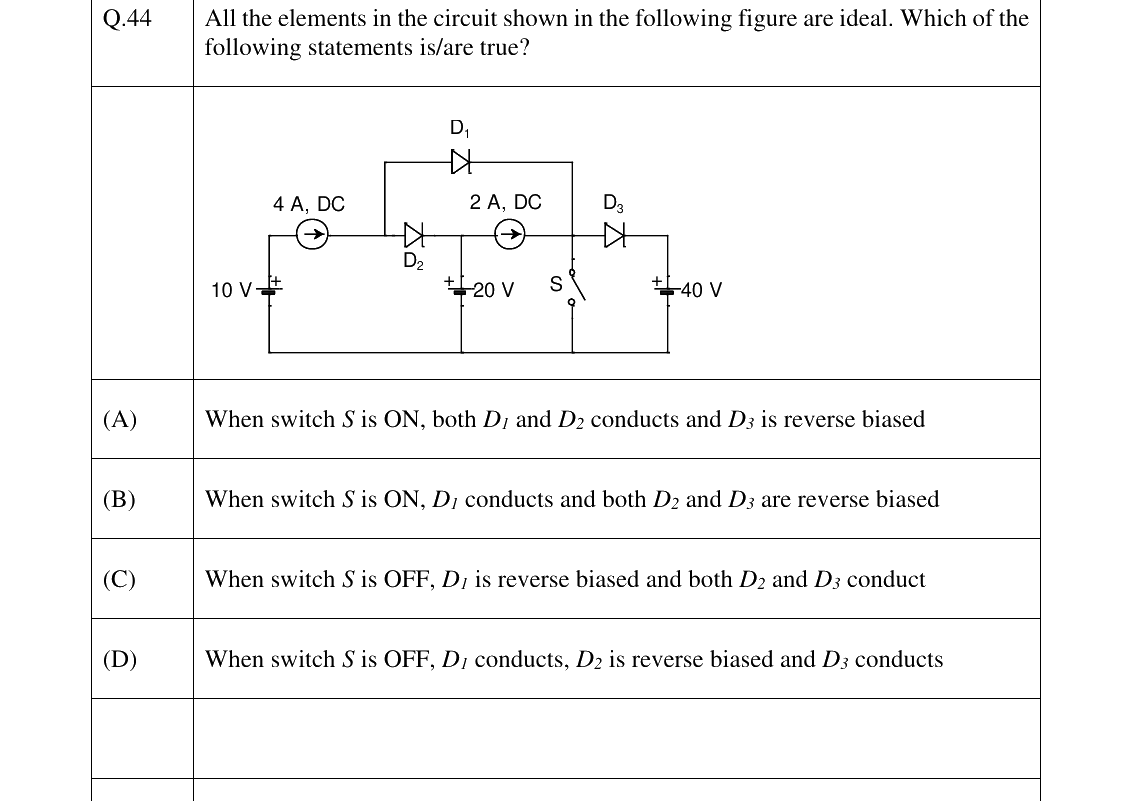

Q.44 · EE · 2 marks · MSQ
Show answer
Answer: B, C

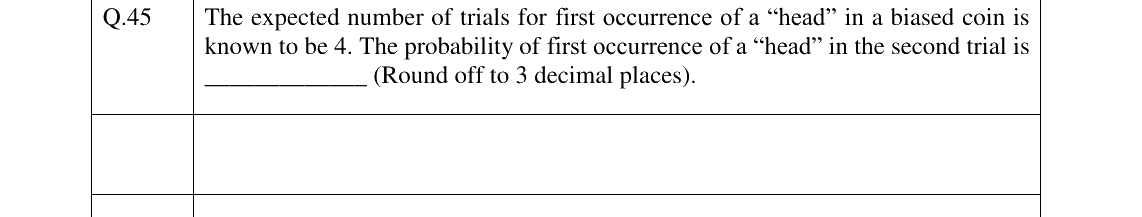

Q.45 · EE · 2 marks · NAT
Show answer
Answer: 0.187 to 0.188

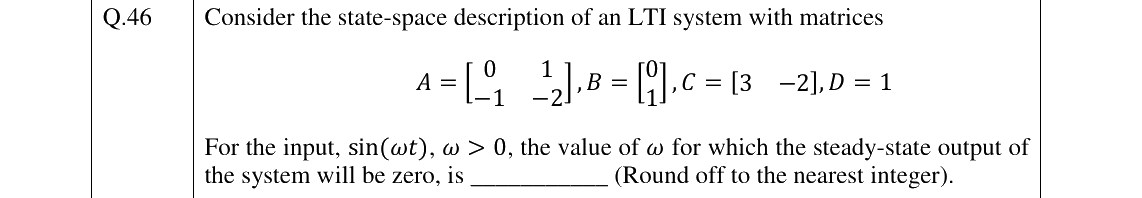

Q.46 · EE · 2 marks · NAT
Show answer
Answer: 2

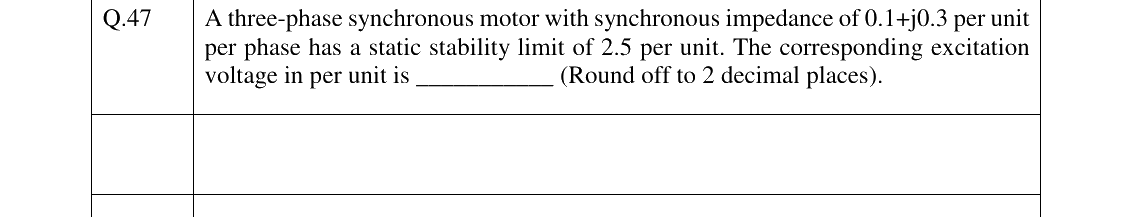

Q.47 · EE · 2 marks · NAT
Show answer
Answer: 1.58 to 1.59

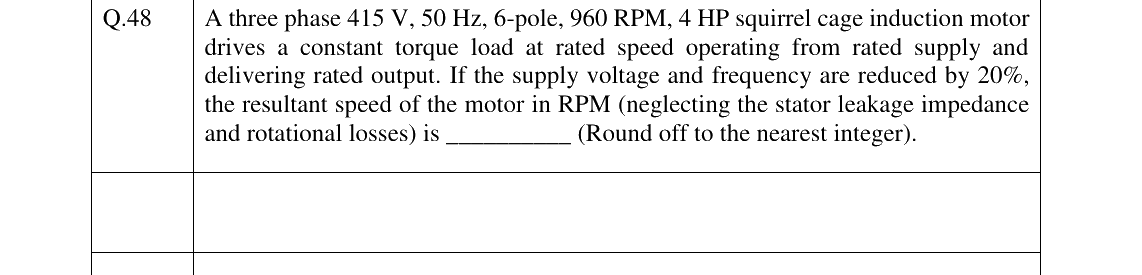

Q.48 · EE · 2 marks · NAT
Show answer
Answer: 760

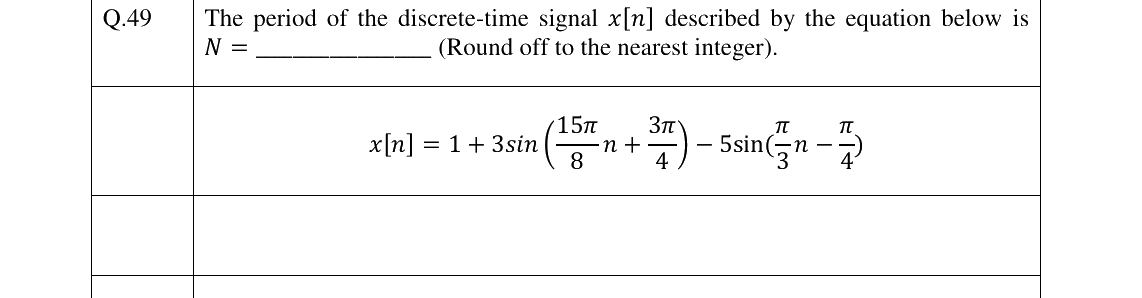

Q.49 · EE · 2 marks · NAT
Show answer
Answer: 48

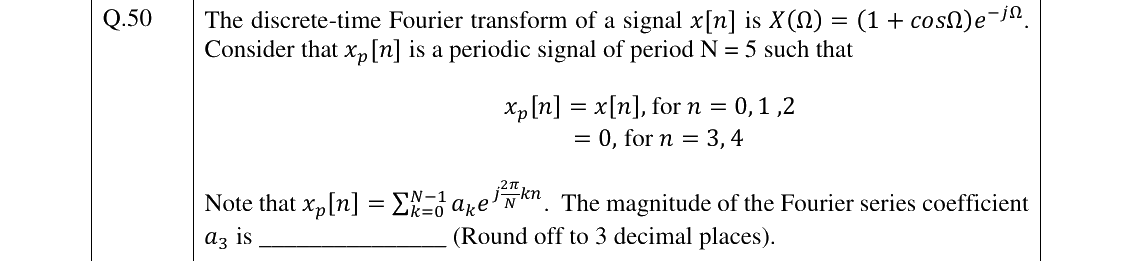

Q.50 · EE · 2 marks · NAT
Show answer
Answer: 0.037 to 0.039

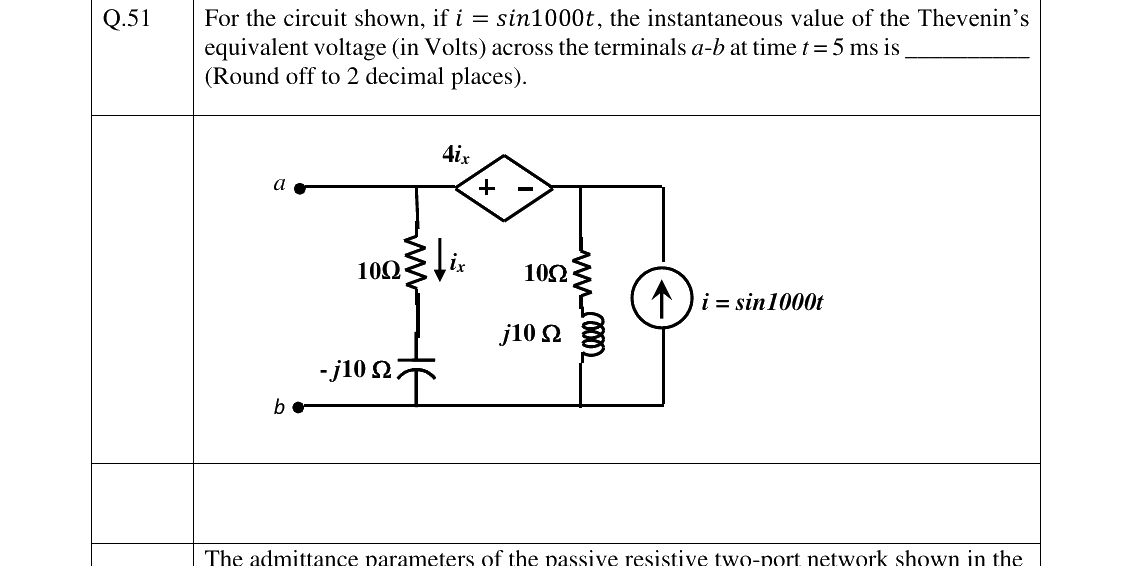

Q.51 · EE · 2 marks · NAT
Show answer
Answer: -12.1 to -11.9

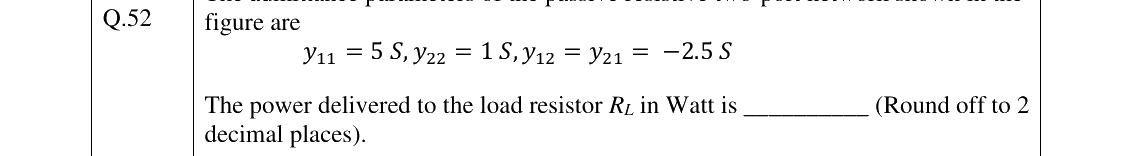

Q.52 · EE · 2 marks · NAT
Show answer
Answer: 237 to 239

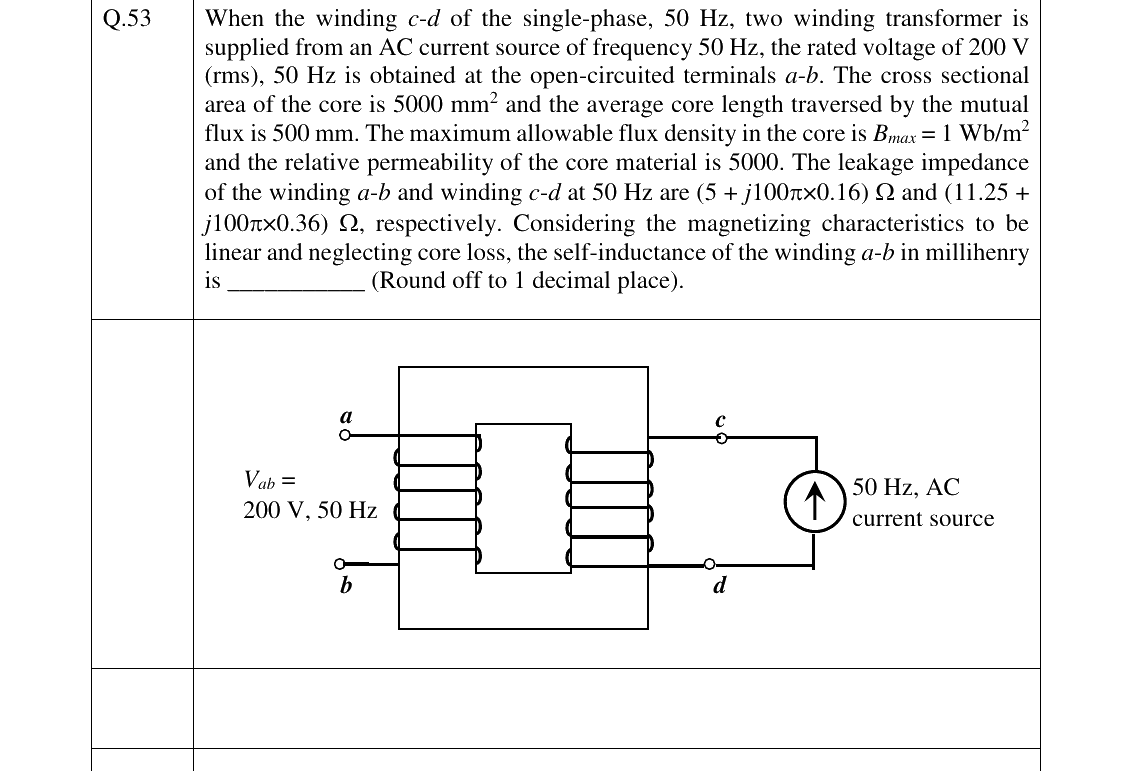

Q.53 · EE · 2 marks · NAT
Show answer
Answer: 2150 to 2250

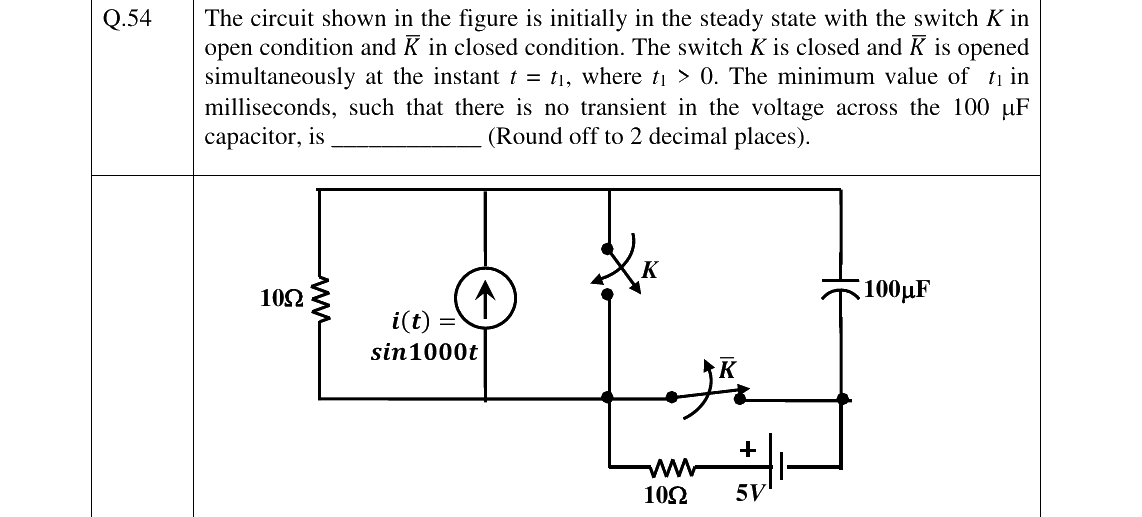

Q.54 · EE · 2 marks · NAT
Show answer
Answer: 1.56 to 1.58

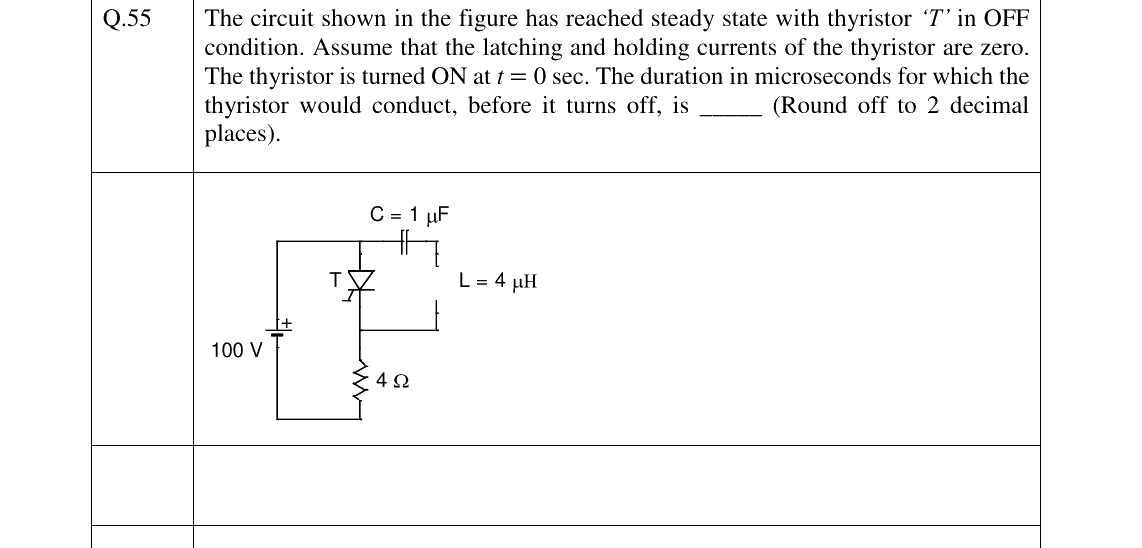

Q.55 · EE · 2 marks · NAT
Show answer
Answer: 7.1 to 7.5
Q.56 · EE · 2 marks · NAT
Show answer
Answer: 8

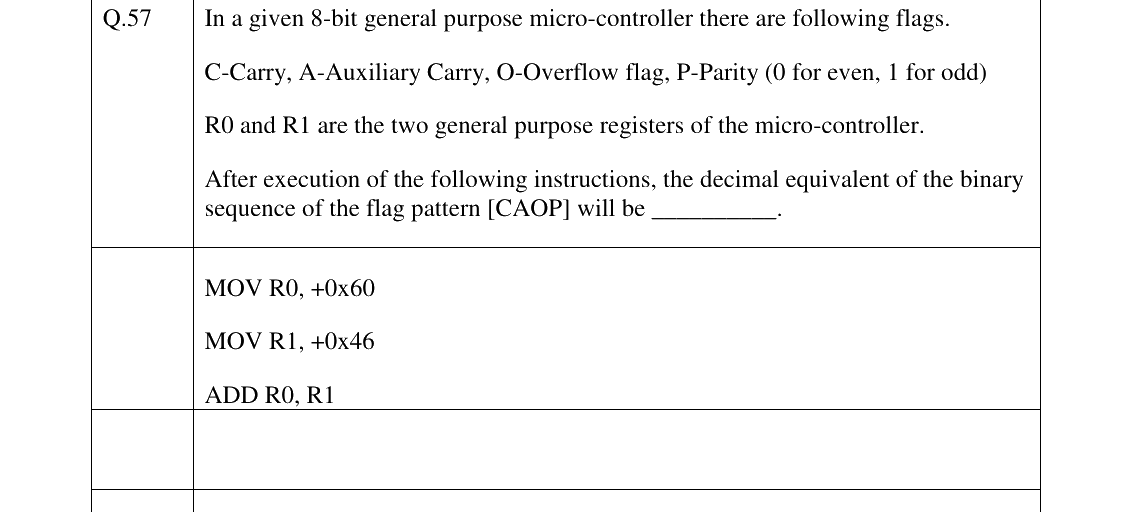

Q.57 · EE · 2 marks · NAT
Show answer
Answer: 2
Q.58 · EE · 2 marks · NAT
Show answer
Answer: 39 to 40.5

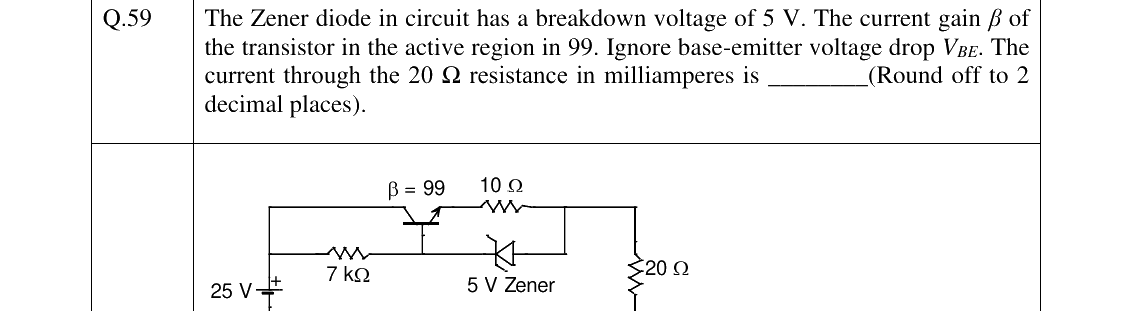

Q.59 · EE · 2 marks · NAT
Show answer
Answer: 245 to 255
Q.60 · EE · 2 marks · NAT
Show answer
Answer: 7.1 to 7.3

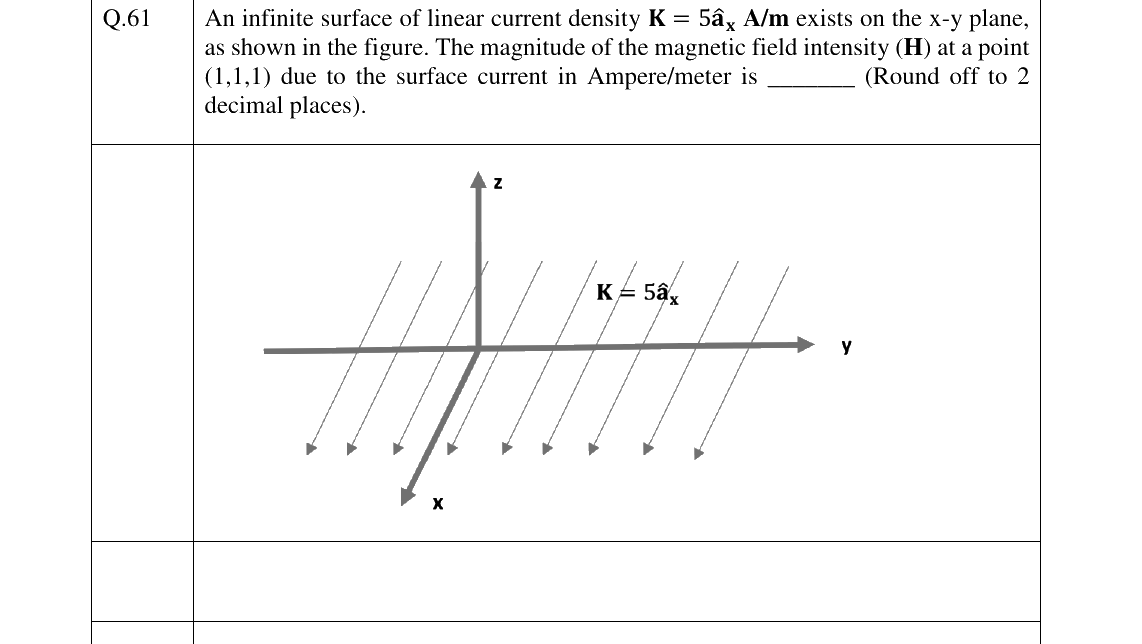

Q.61 · EE · 2 marks · NAT
Show answer
Answer: 2.49 to 2.51

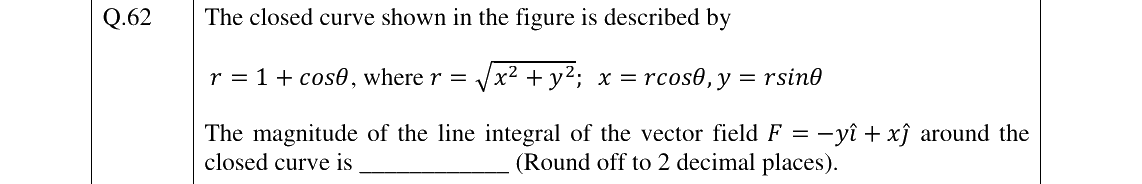

Q.62 · EE · 2 marks · NAT
Show answer
Answer: 9 to 10

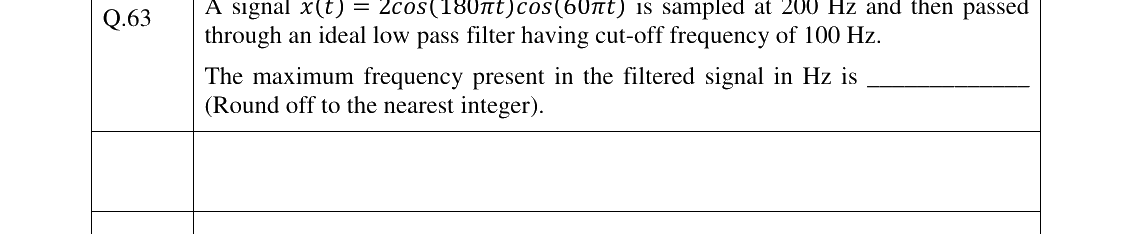

Q.63 · EE · 2 marks · NAT
Show answer
Answer: 80

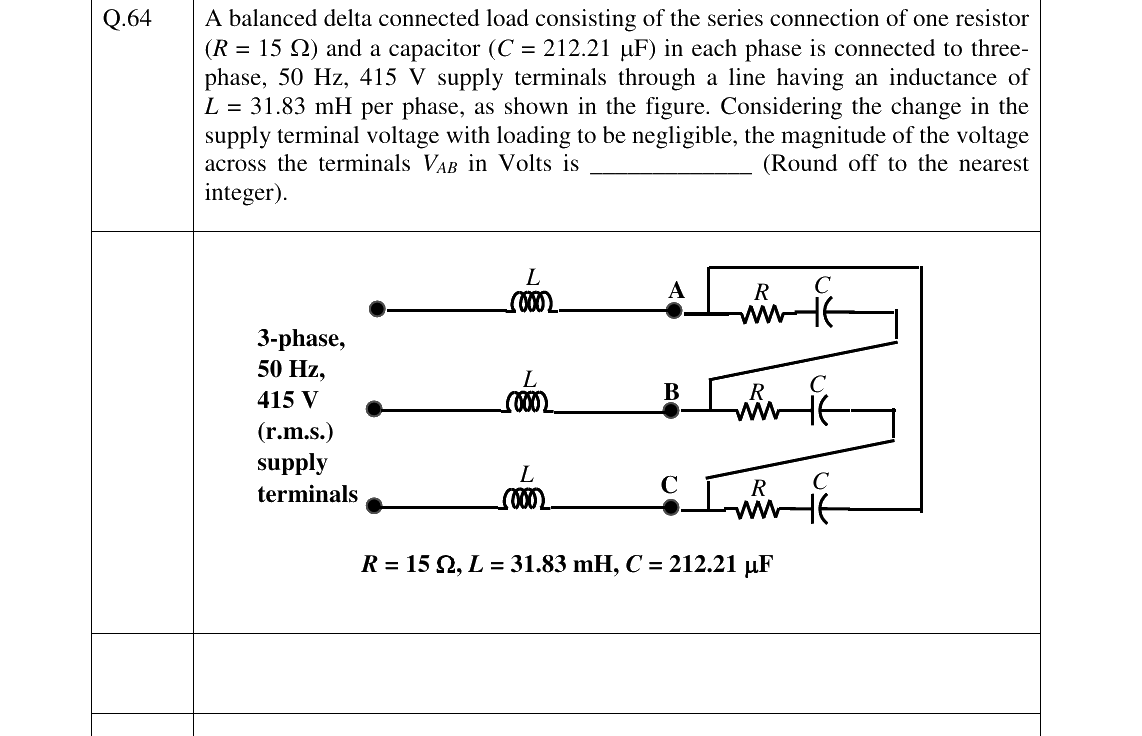

Q.64 · EE · 2 marks · NAT
Show answer
Answer: 414 to 416

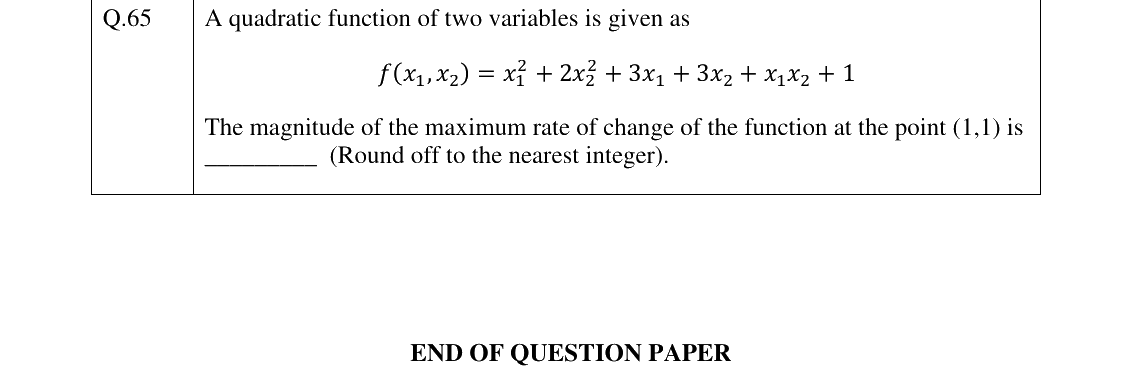

Q.65 · EE · 2 marks · NAT
Show answer
Answer: 10
GATE 2023 EE official answer key
From the official GATE answer key ↗. Numerical answers are accepted anywhere in the range shown.
| Q. | Section | Type | Marks | Answer |
|---|---|---|---|---|
| 1 | GA | MCQ | 1 | D |
| 2 | GA | MCQ | 1 | B |
| 3 | GA | MCQ | 1 | A |
| 4 | GA | MCQ | 1 | B |
| 5 | GA | MCQ | 1 | C |
| 6 | GA | MCQ | 2 | D |
| 7 | GA | MCQ | 2 | B |
| 8 | GA | MCQ | 2 | D |
| 9 | GA | MCQ | 2 | A |
| 10 | GA | MCQ | 2 | B |
| 11 | EE | MCQ | 1 | D |
| 12 | EE | MCQ | 1 | B |
| 13 | EE | MCQ | 1 | C |
| 14 | EE | MCQ | 1 | D |
| 15 | EE | MCQ | 1 | A |
| 16 | EE | MCQ | 1 | B |
| 17 | EE | MCQ | 1 | C |
| 18 | EE | MCQ | 1 | A |
| 19 | EE | MCQ | 1 | B |
| 20 | EE | MCQ | 1 | A |
| 21 | EE | MCQ | 1 | A |
| 22 | EE | MCQ | 1 | D |
| 23 | EE | MCQ | 1 | B |
| 24 | EE | MCQ | 1 | A |
| 25 | EE | MCQ | 1 | C |
| 26 | EE | MSQ | 1 | A, D |
| 27 | EE | MSQ | 1 | B |
| 28 | EE | MSQ | 1 | A, C |
| 29 | EE | NAT | 1 | 7.9 to 8.1 |
| 30 | EE | NAT | 1 | 1340 to 1345 |
| 31 | EE | NAT | 1 | 4 |
| 32 | EE | NAT | 1 | 5.9 to 6.1 |
| 33 | EE | NAT | 1 | 83 to 84 |
| 34 | EE | NAT | 1 | 0.48 to 0.52 |
| 35 | EE | NAT | 1 | 0.9 to 1.1 |
| 36 | EE | MCQ | 2 | D |
| 37 | EE | MCQ | 2 | D |
| 38 | EE | MCQ | 2 | B |
| 39 | EE | MCQ | 2 | C |
| 40 | EE | MCQ | 2 | C |
| 41 | EE | MCQ | 2 | D |
| 42 | EE | MSQ | 2 | A, B, D |
| 43 | EE | MSQ | 2 | Marks to all (question dropped) |
| 44 | EE | MSQ | 2 | B, C |
| 45 | EE | NAT | 2 | 0.187 to 0.188 |
| 46 | EE | NAT | 2 | 2 |
| 47 | EE | NAT | 2 | 1.58 to 1.59 |
| 48 | EE | NAT | 2 | 760 |
| 49 | EE | NAT | 2 | 48 |
| 50 | EE | NAT | 2 | 0.037 to 0.039 |
| 51 | EE | NAT | 2 | -12.1 to -11.9 |
| 52 | EE | NAT | 2 | 237 to 239 |
| 53 | EE | NAT | 2 | 2150 to 2250 |
| 54 | EE | NAT | 2 | 1.56 to 1.58 |
| 55 | EE | NAT | 2 | 7.1 to 7.5 |
| 56 | EE | NAT | 2 | 8 |
| 57 | EE | NAT | 2 | 2 |
| 58 | EE | NAT | 2 | 39 to 40.5 |
| 59 | EE | NAT | 2 | 245 to 255 |
| 60 | EE | NAT | 2 | 7.1 to 7.3 |
| 61 | EE | NAT | 2 | 2.49 to 2.51 |
| 62 | EE | NAT | 2 | 9 to 10 |
| 63 | EE | NAT | 2 | 80 |
| 64 | EE | NAT | 2 | 414 to 416 |
| 65 | EE | NAT | 2 | 10 |
