GATE 2023 NM question paper with official answer key
The complete GATE 2023 Naval Architecture and Marine Engineering (NM) paper: 65 questions for 100 marks, with the official answer to every question. Try each question first, then open its answer, or practise the whole paper free with a 3-hour timer and your score.
GATE 2023 NM paper at a glance
- Questions
- 65
- Total marks
- 100
- General Aptitude
- 10 questions · 15 marks
- NM subject
- 55 questions · 85 marks
- Question types
- 39 MCQ · 8 MSQ · 18 NAT
- Duration
- 3 hours
In GATE, each MCQ carries 1 or 2 marks; a wrong MCQ answer costs one-third of its marks (−1/3 for a 1-mark and −2/3 for a 2-mark question). MSQ (multiple select) and NAT (numerical answer) questions have no negative marking.
All 65 questions
Each question is shown exactly as in the official paper. Tap “Show answer” to check yourself.

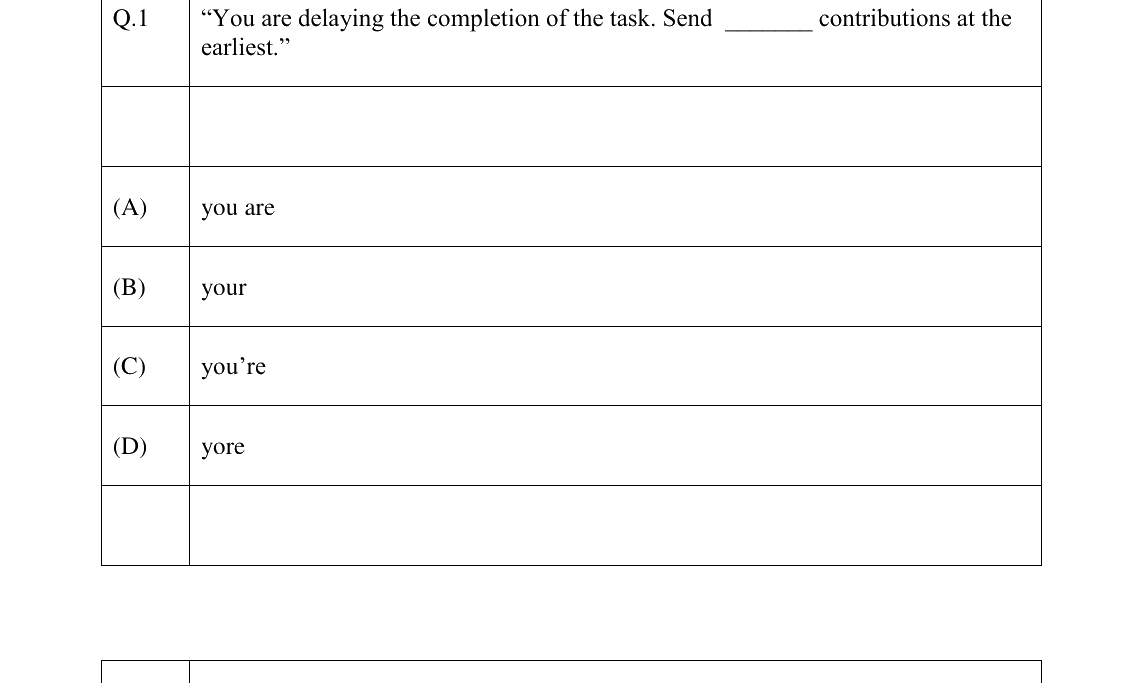

Q.1 · General Aptitude · 1 mark · MCQ
Show answer
Answer: B

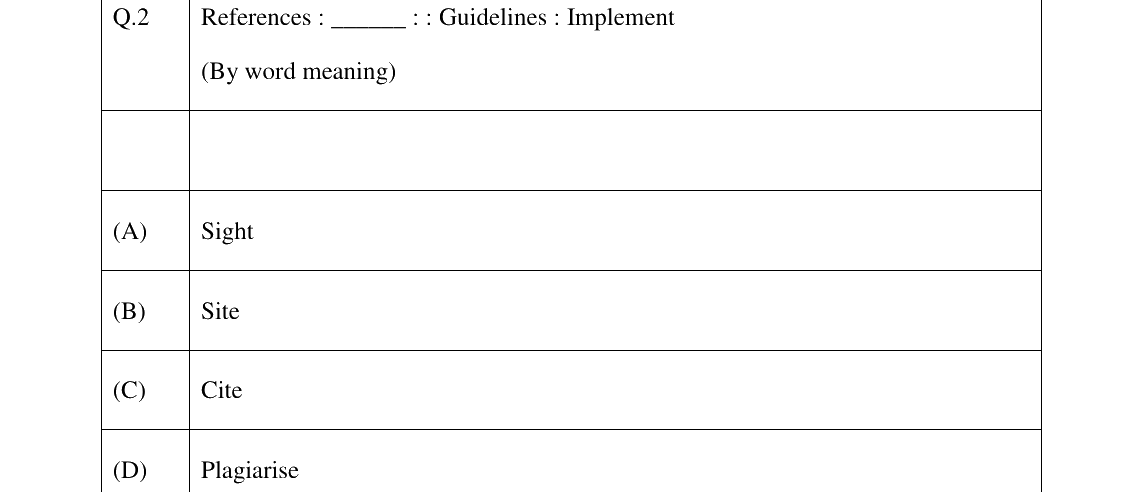

Q.2 · General Aptitude · 1 mark · MCQ
Show answer
Answer: C

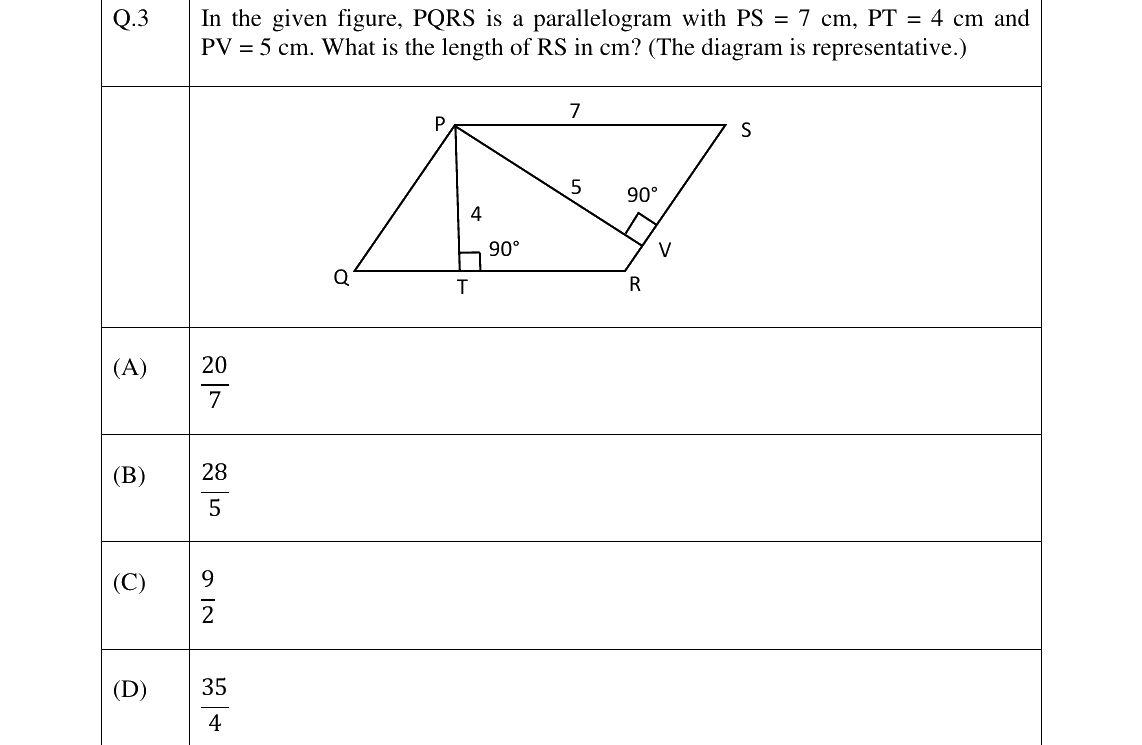

Q.3 · General Aptitude · 1 mark · MCQ
Show answer
Answer: B

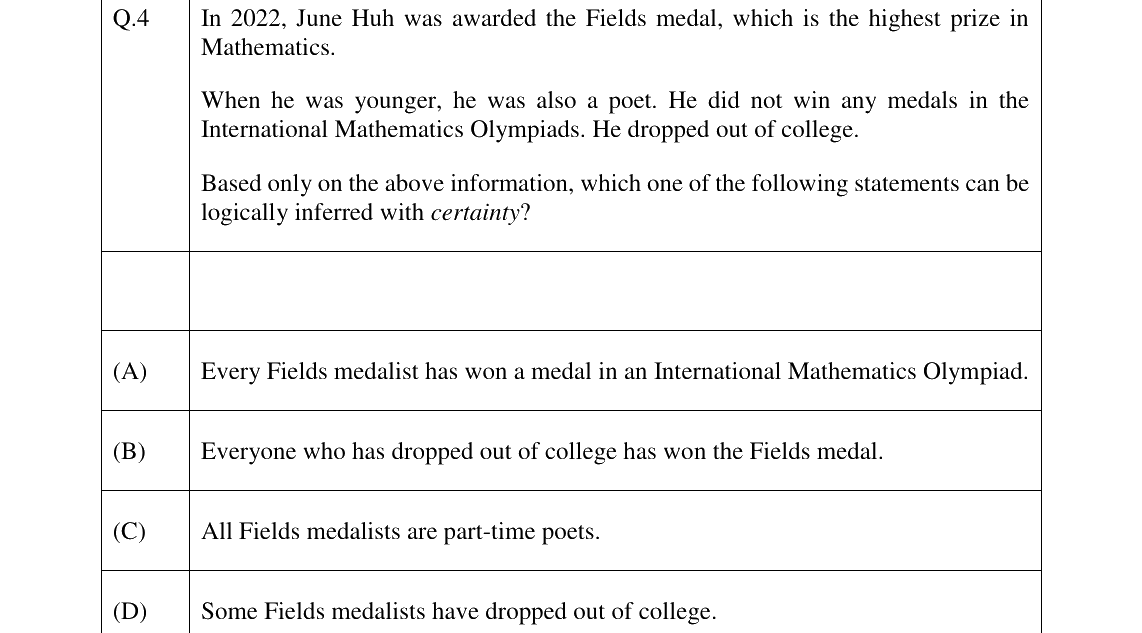

Q.4 · General Aptitude · 1 mark · MCQ
Show answer
Answer: D

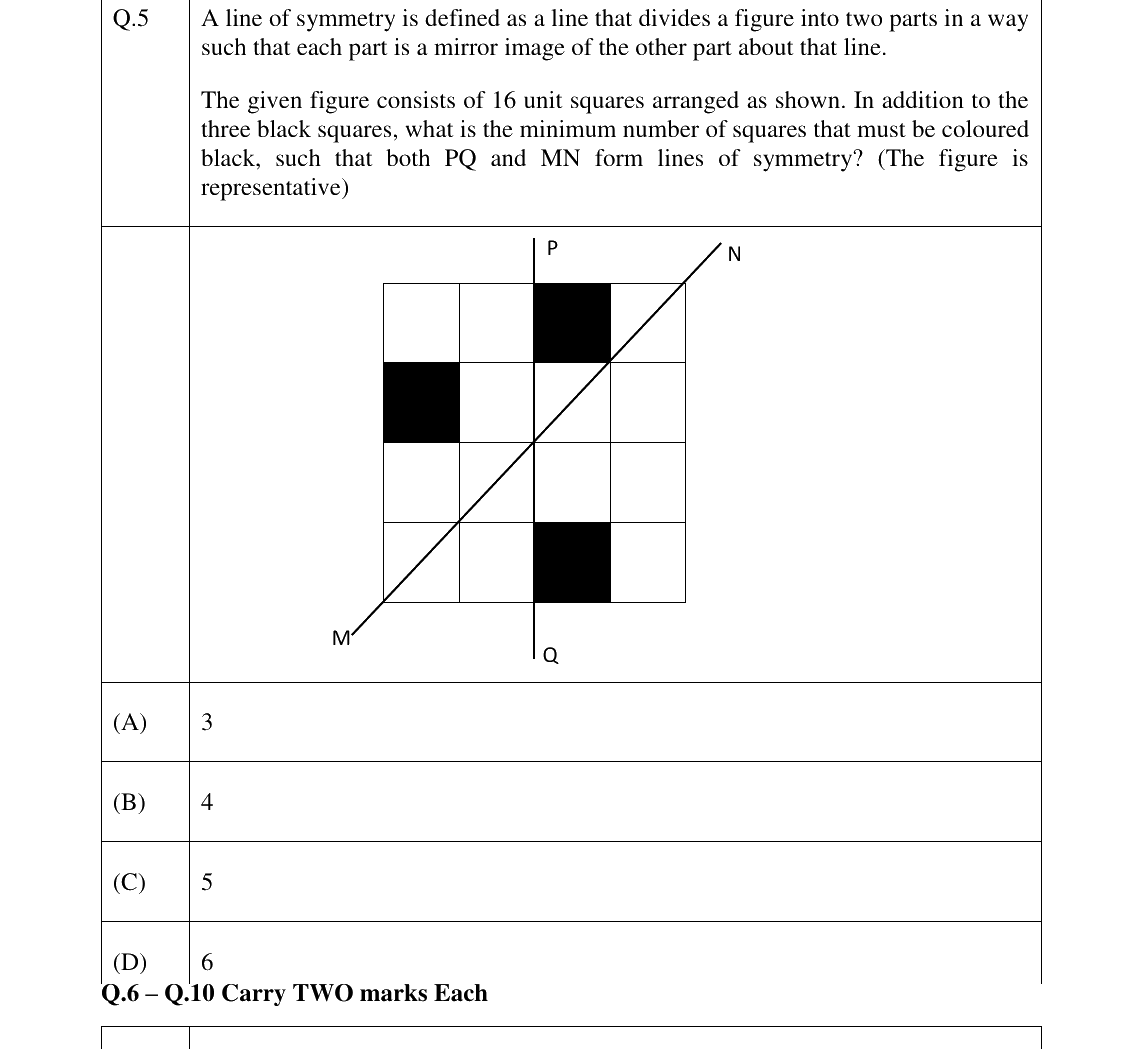

Q.5 · General Aptitude · 1 mark · MCQ
Show answer
Answer: C

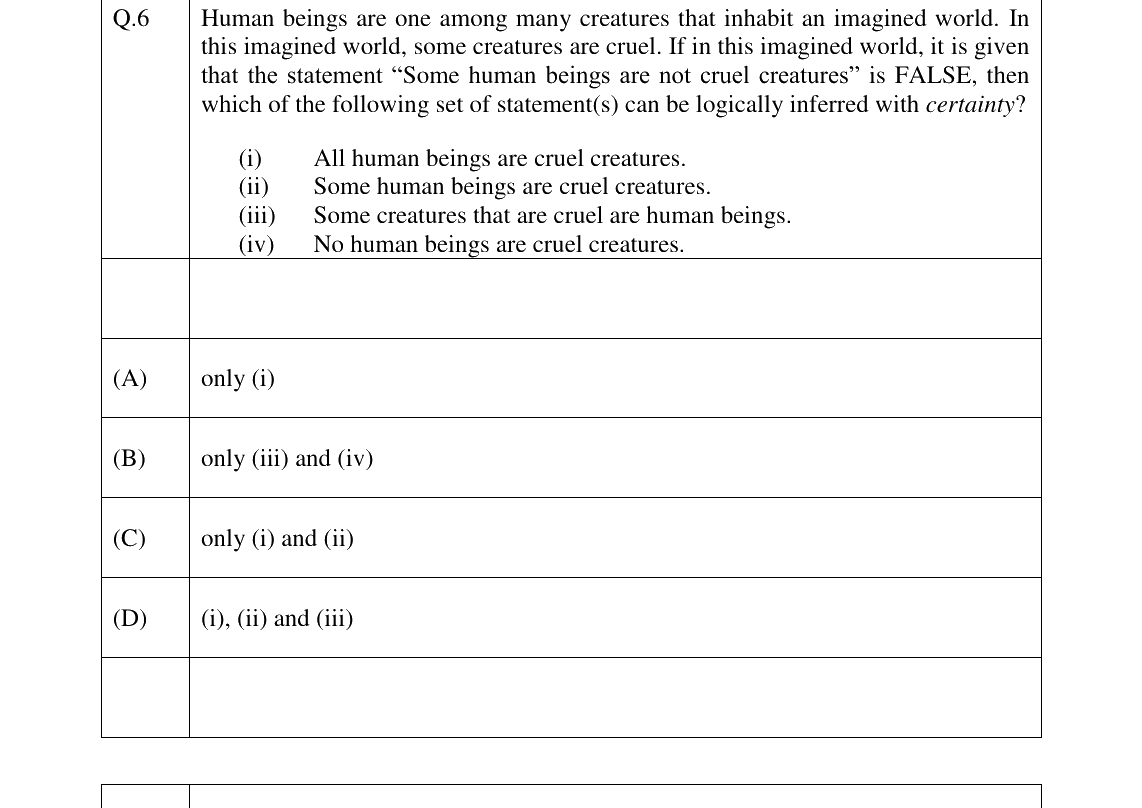

Q.6 · General Aptitude · 2 marks · MCQ
Show answer
Answer: D

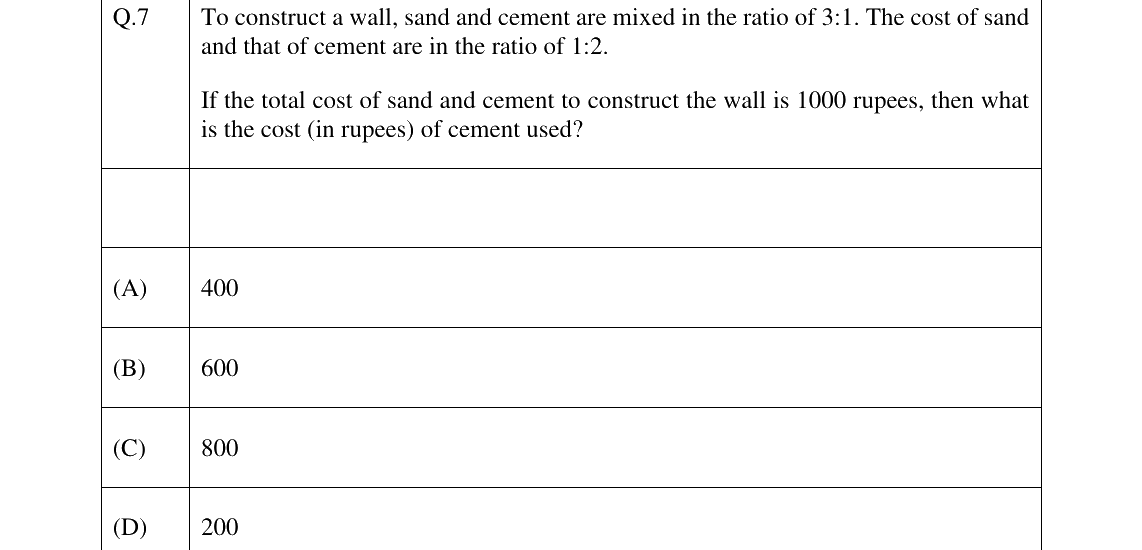

Q.7 · General Aptitude · 2 marks · MCQ
Show answer
Answer: A

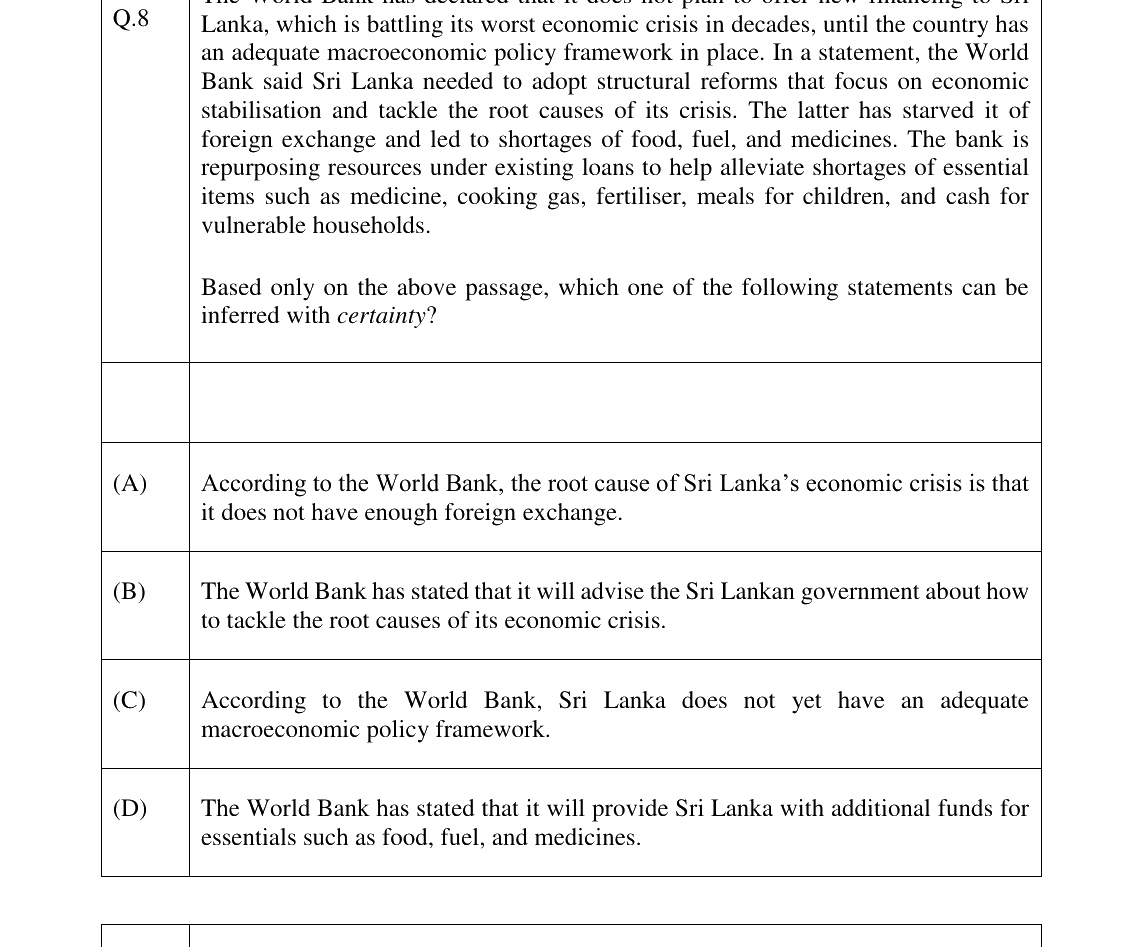

Q.8 · General Aptitude · 2 marks · MCQ
Show answer
Answer: C

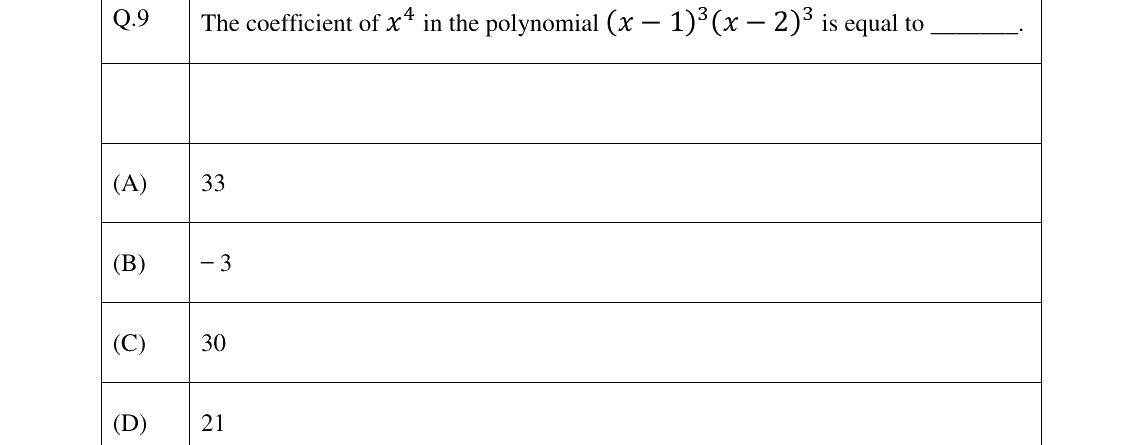

Q.9 · General Aptitude · 2 marks · MCQ
Show answer
Answer: A

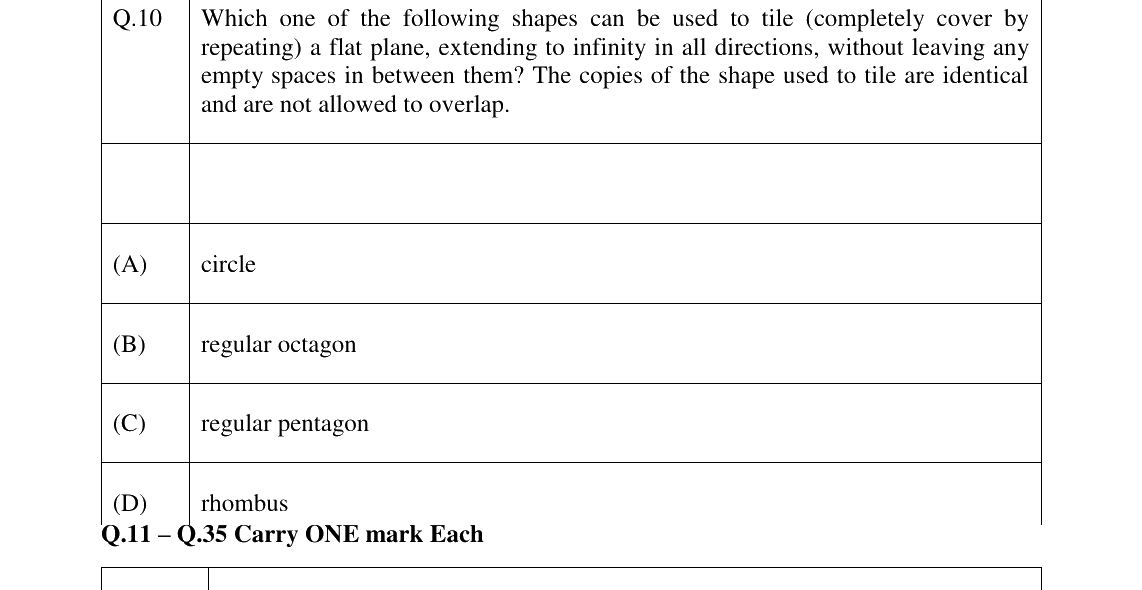

Q.10 · General Aptitude · 2 marks · MCQ
Show answer
Answer: D

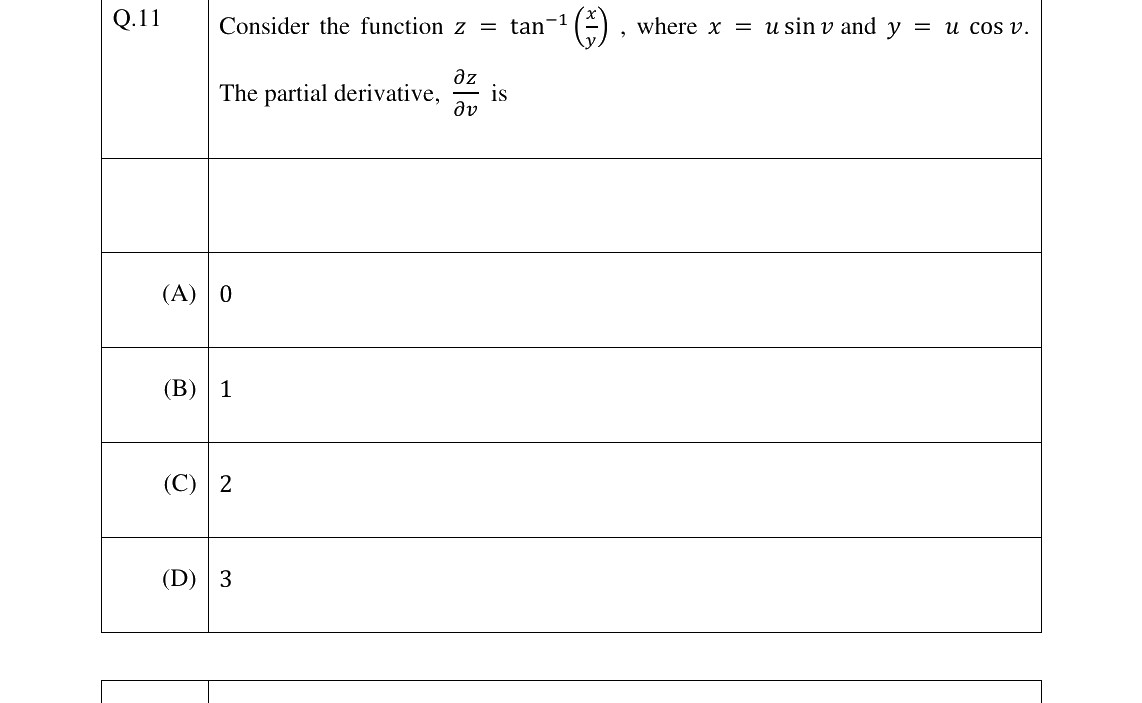

Q.11 · NM · 1 mark · MCQ
Show answer
Answer: B

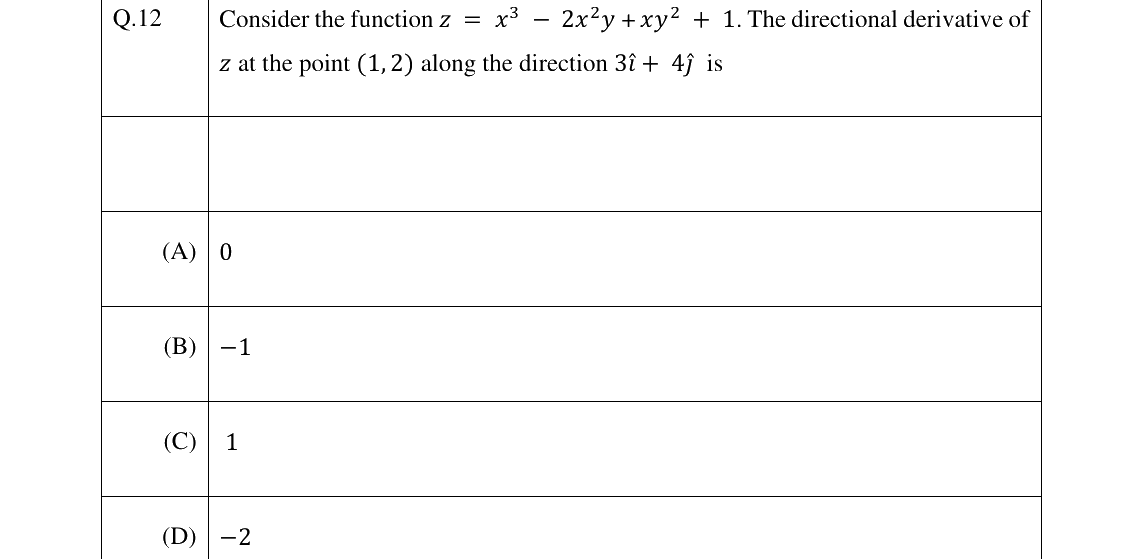

Q.12 · NM · 1 mark · MCQ
Show answer
Answer: C

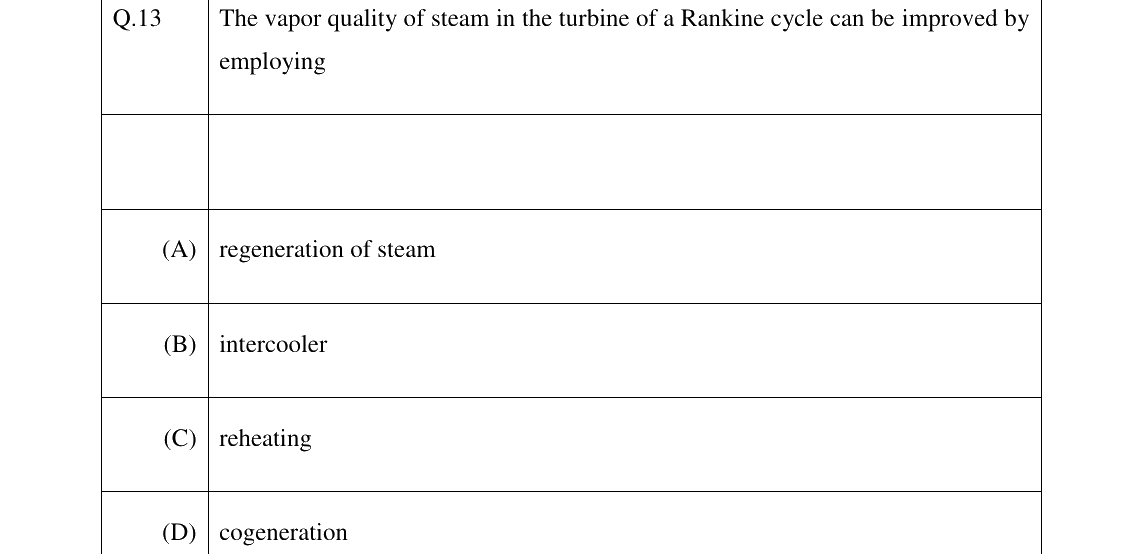

Q.13 · NM · 1 mark · MCQ
Show answer
Answer: C

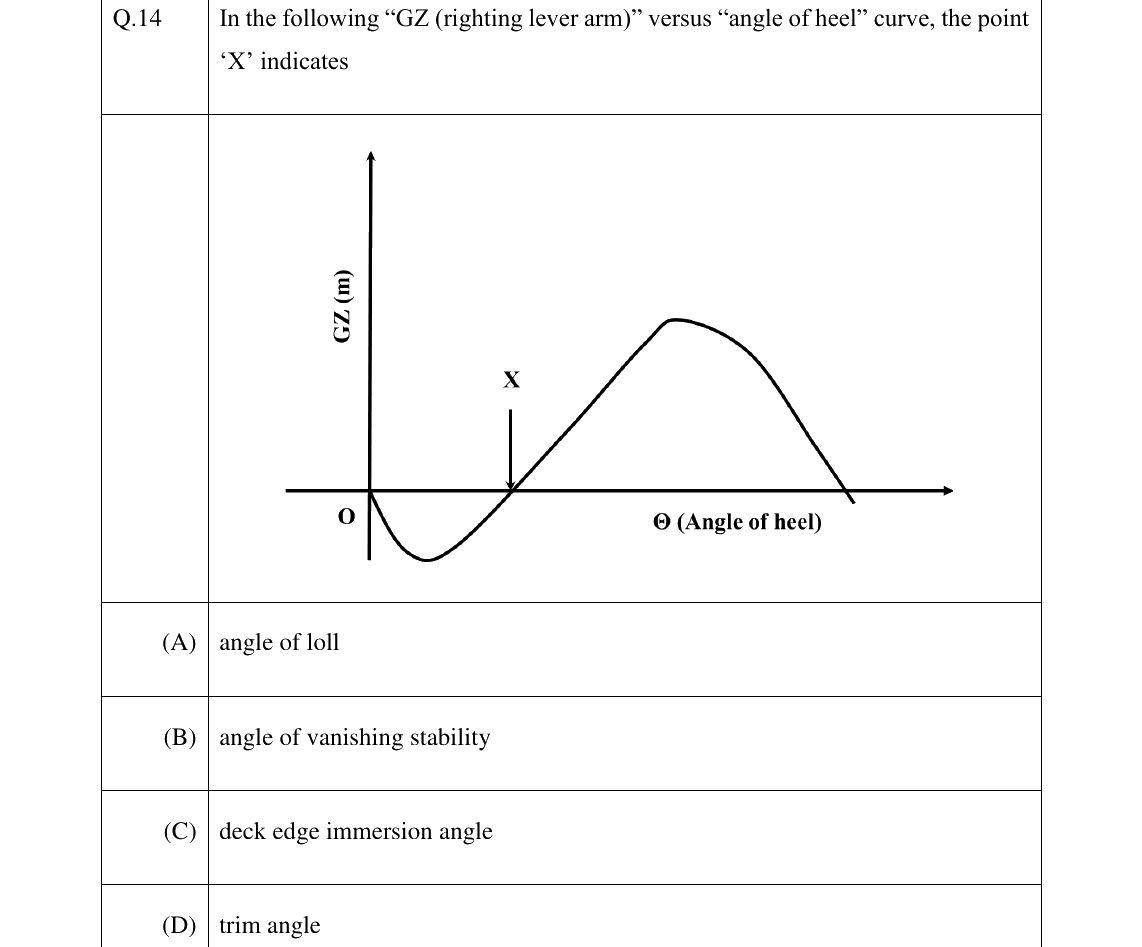

Q.14 · NM · 1 mark · MCQ
Show answer
Answer: A

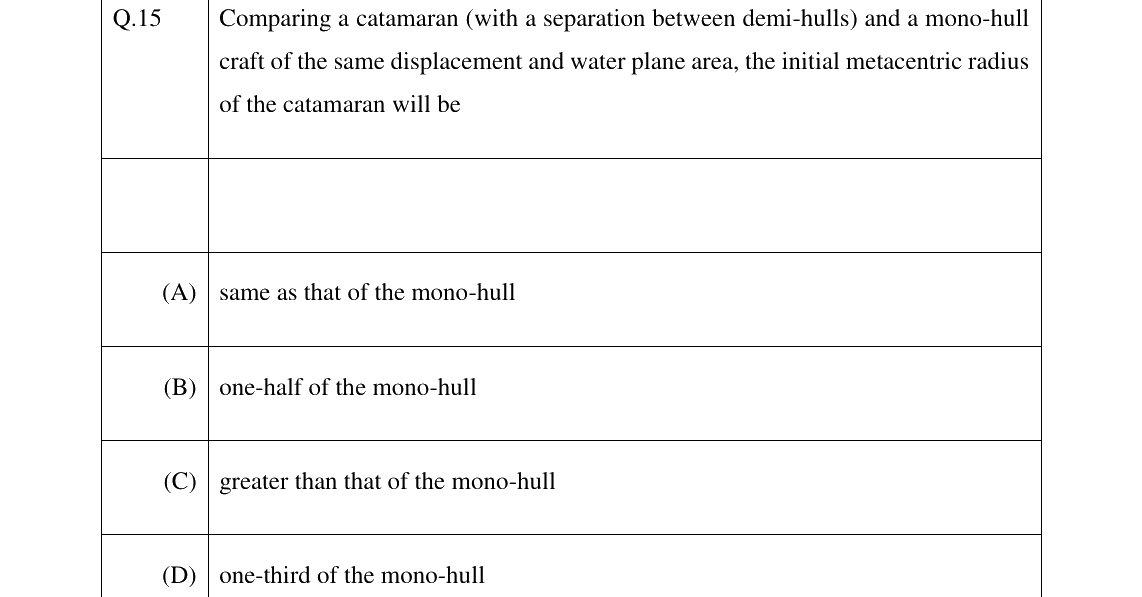

Q.15 · NM · 1 mark · MCQ
Show answer
Answer: C

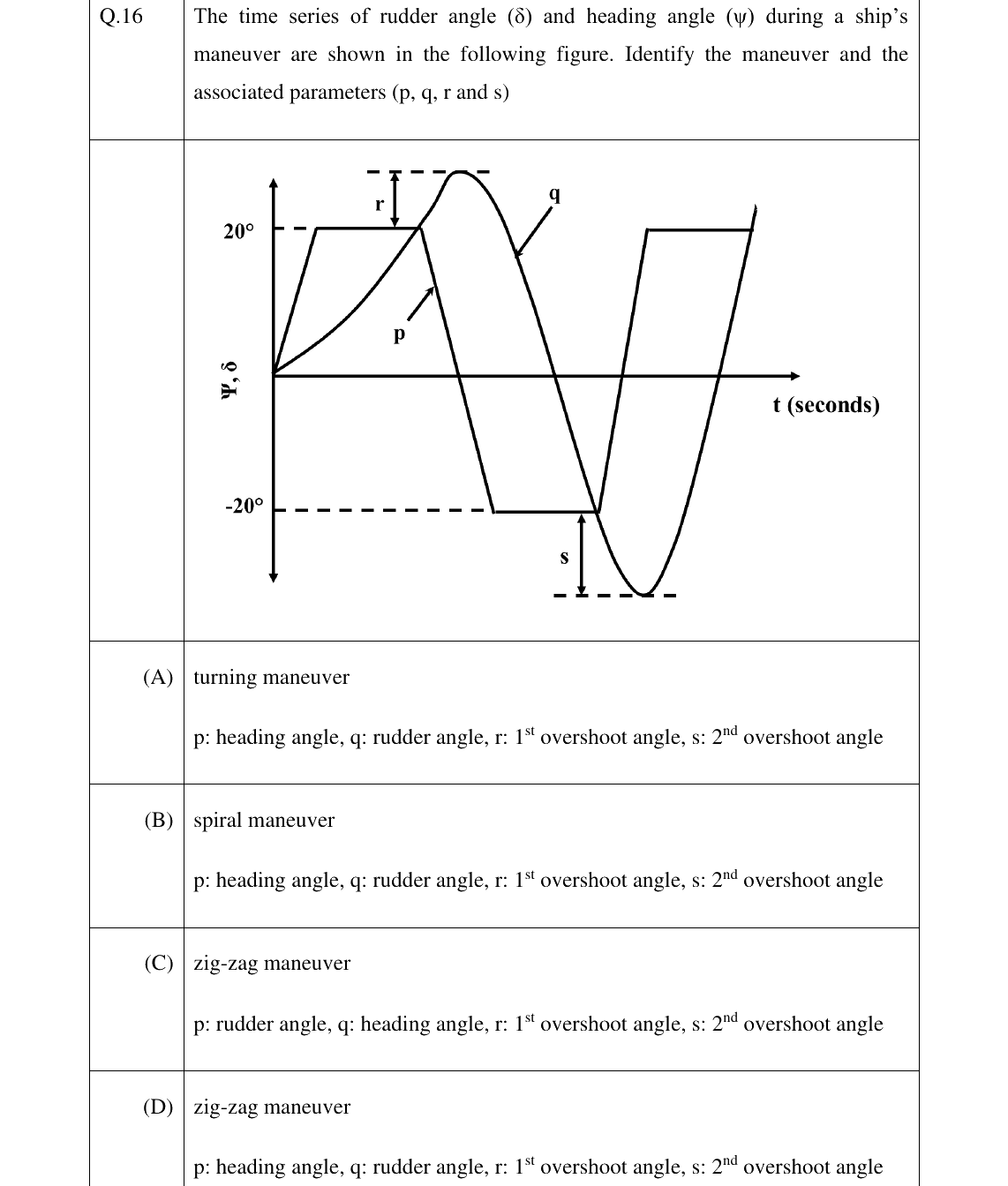

Q.16 · NM · 1 mark · MCQ
Show answer
Answer: C

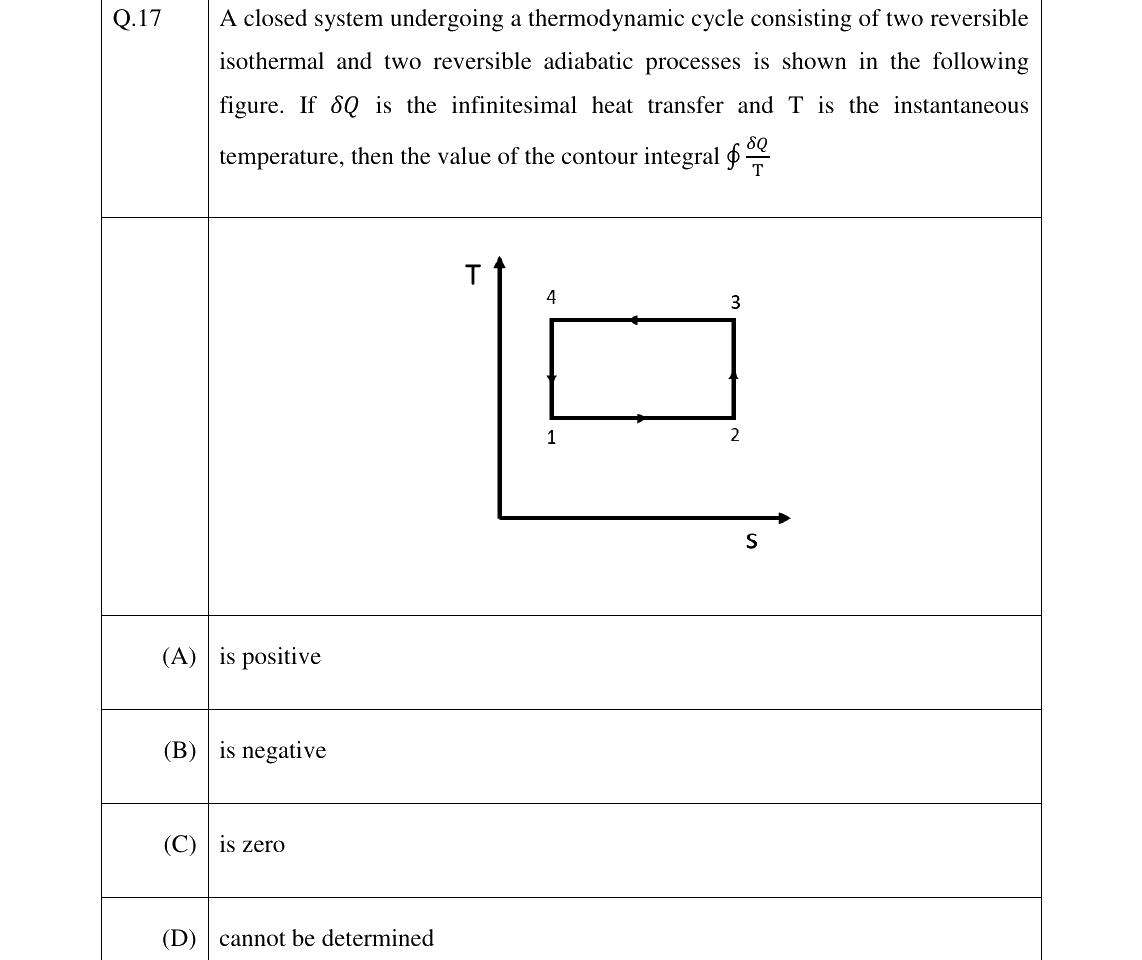

Q.17 · NM · 1 mark · MCQ
Show answer
Answer: C

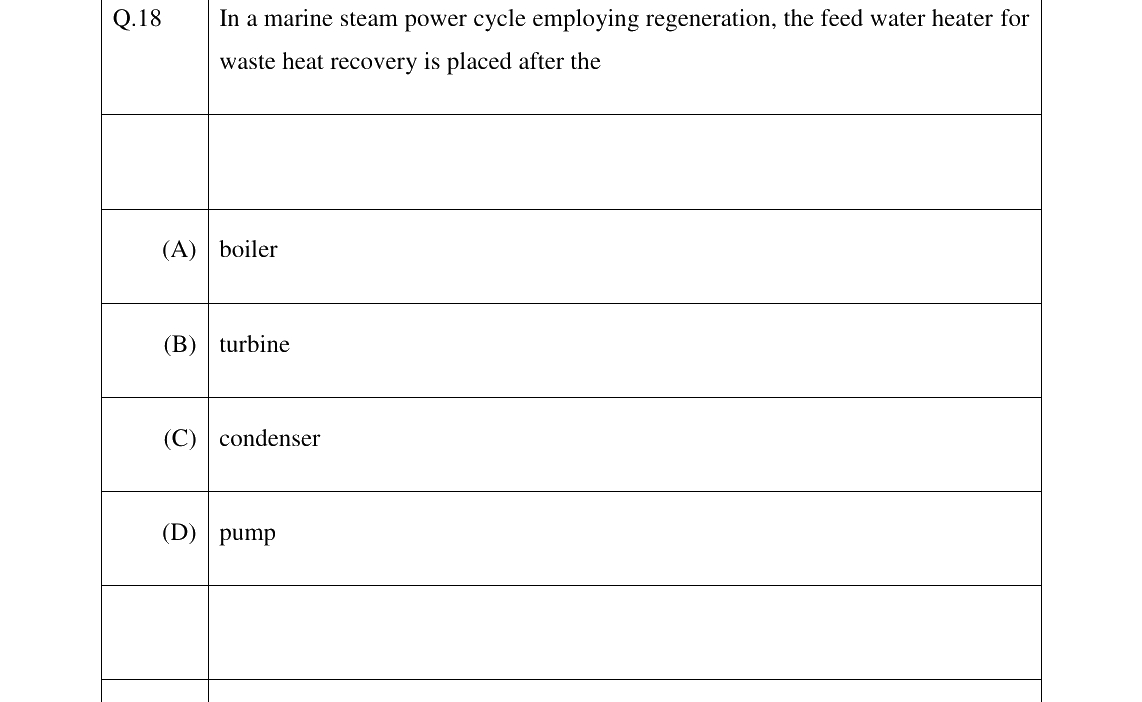

Q.18 · NM · 1 mark · MCQ
Show answer
Answer: D

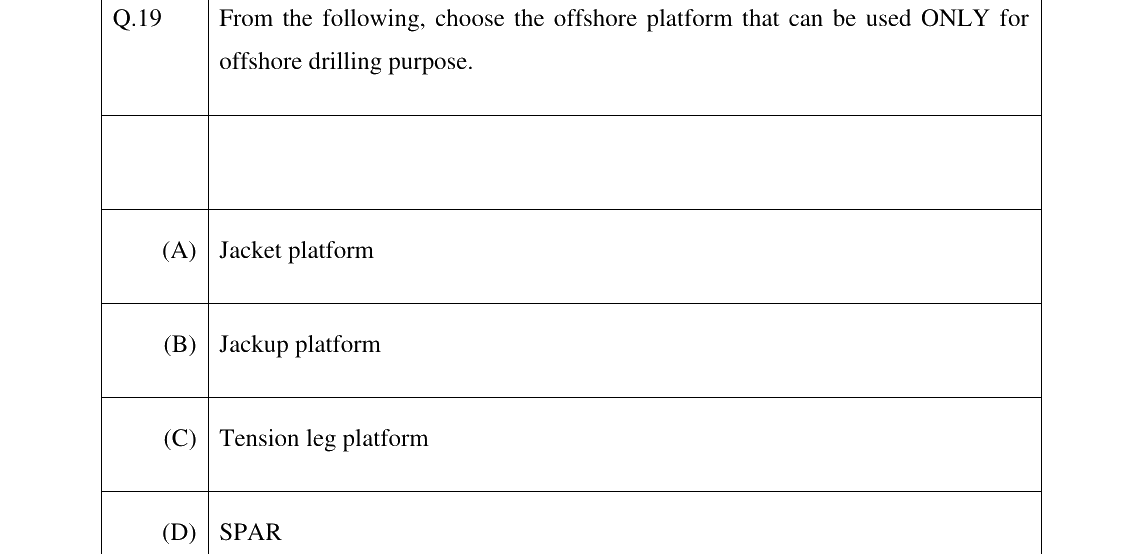

Q.19 · NM · 1 mark · MCQ
Show answer
Answer: B

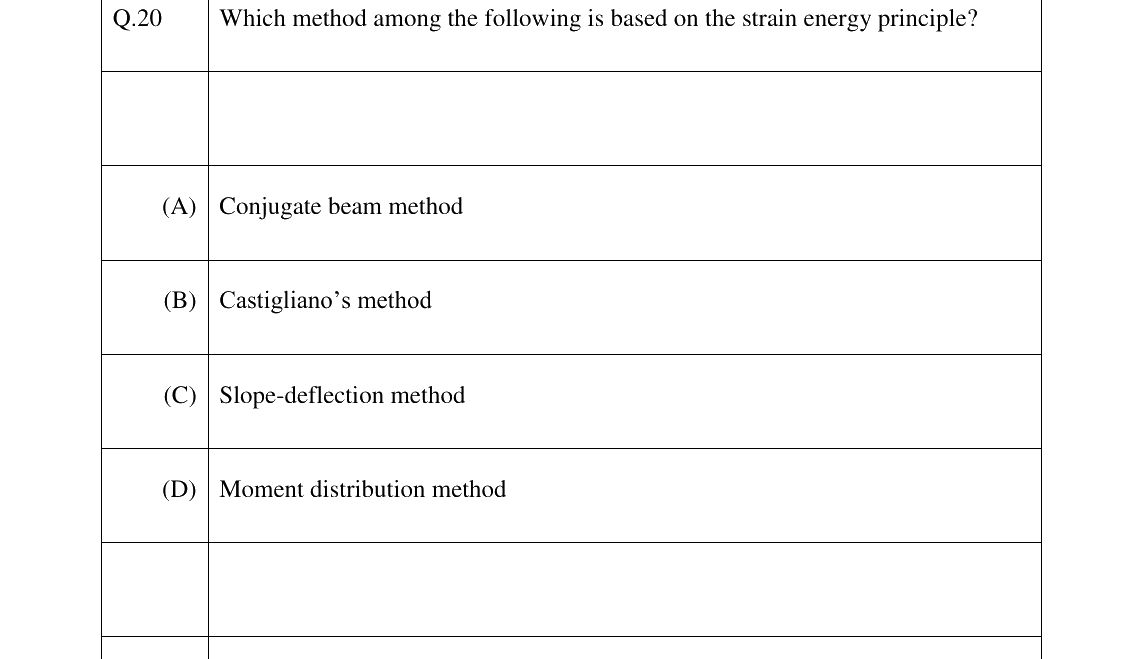

Q.20 · NM · 1 mark · MCQ
Show answer
Answer: B

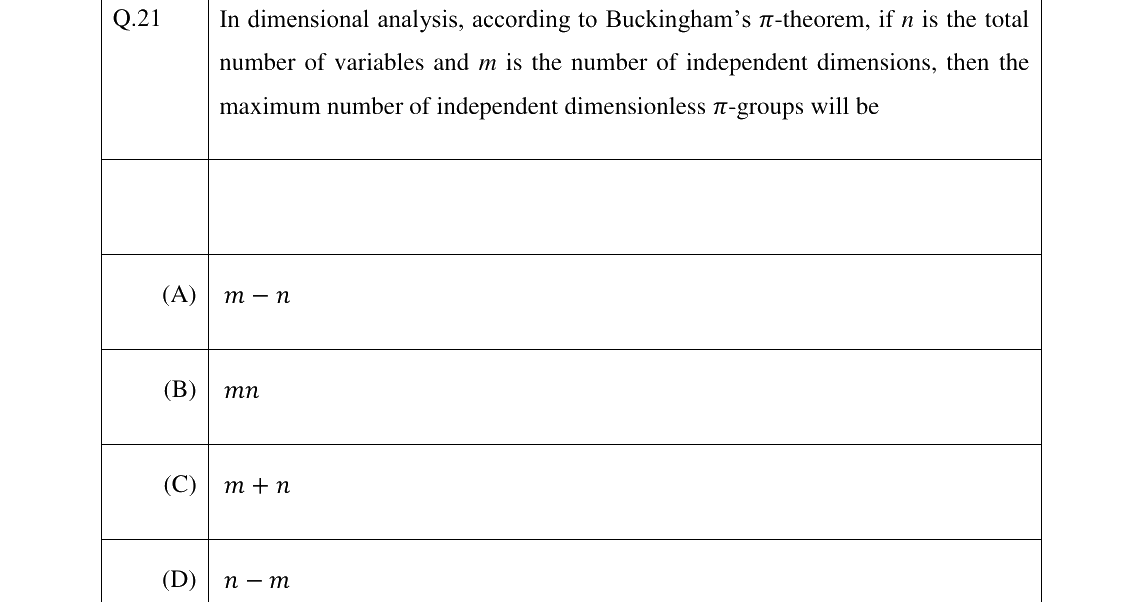

Q.21 · NM · 1 mark · MCQ
Show answer
Answer: D

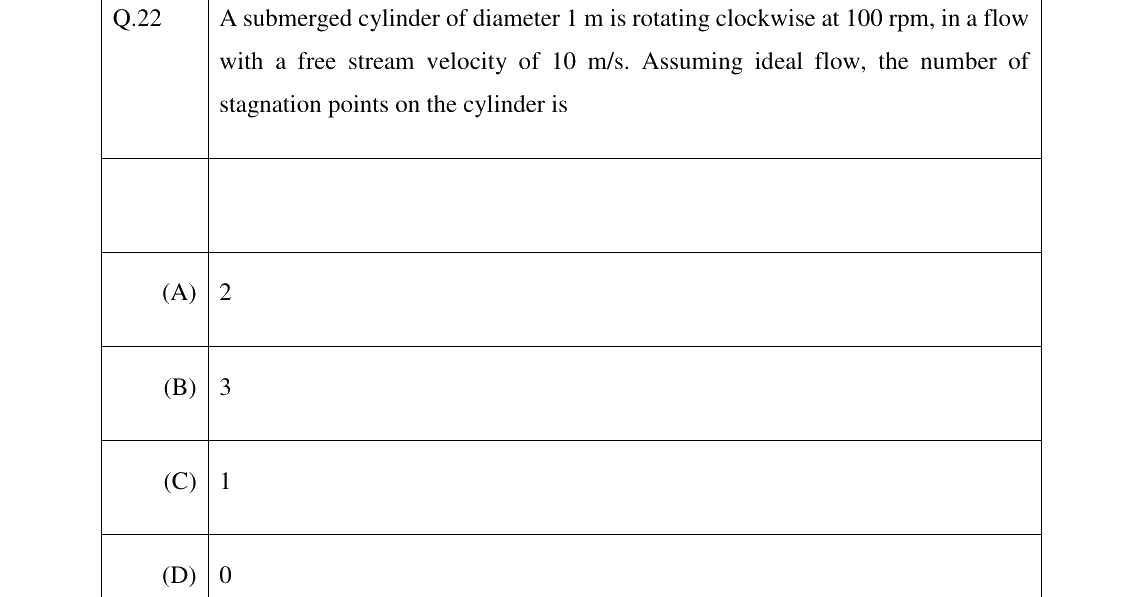

Q.22 · NM · 1 mark · MCQ
Show answer
Answer: A

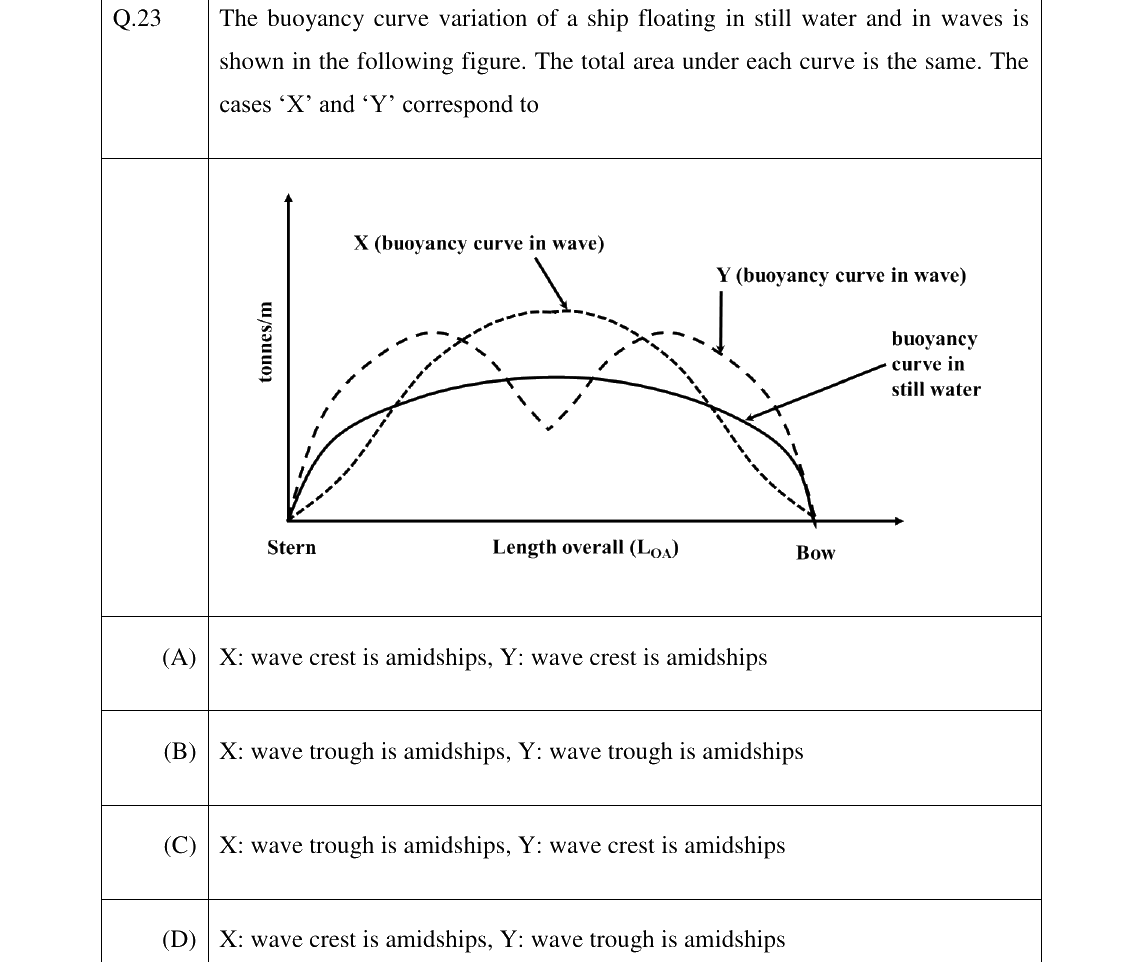

Q.23 · NM · 1 mark · MCQ
Show answer
Answer: D

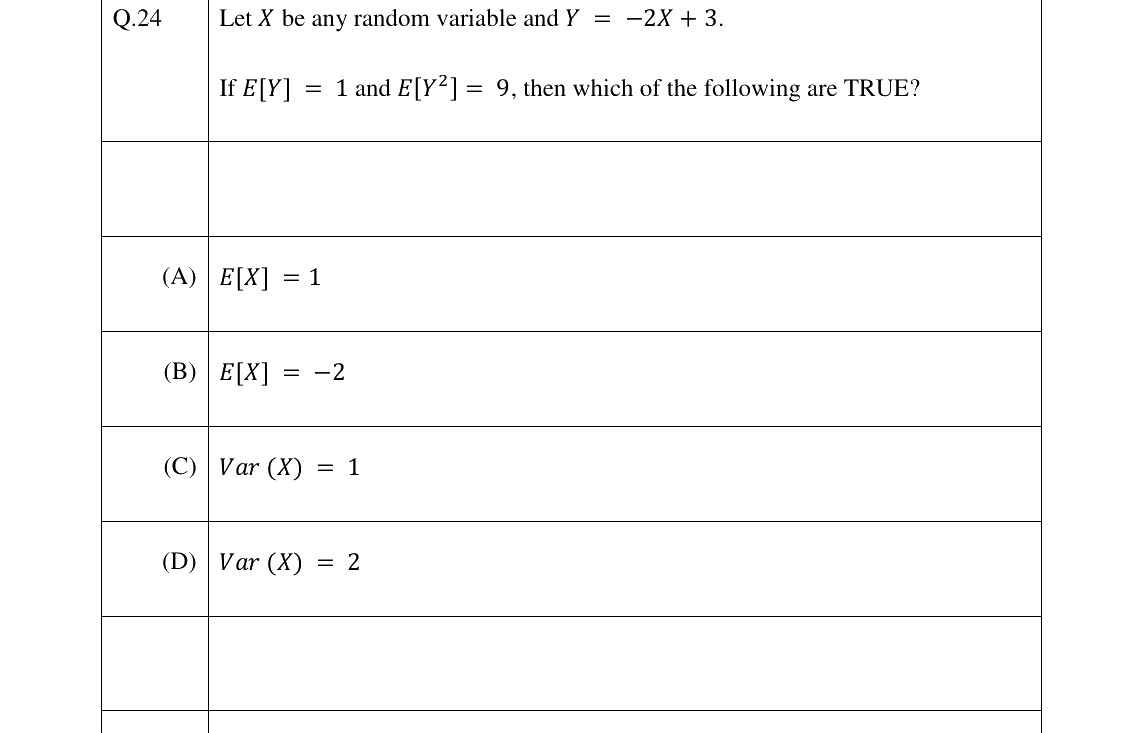

Q.24 · NM · 1 mark · MSQ
Show answer
Answer: A, D

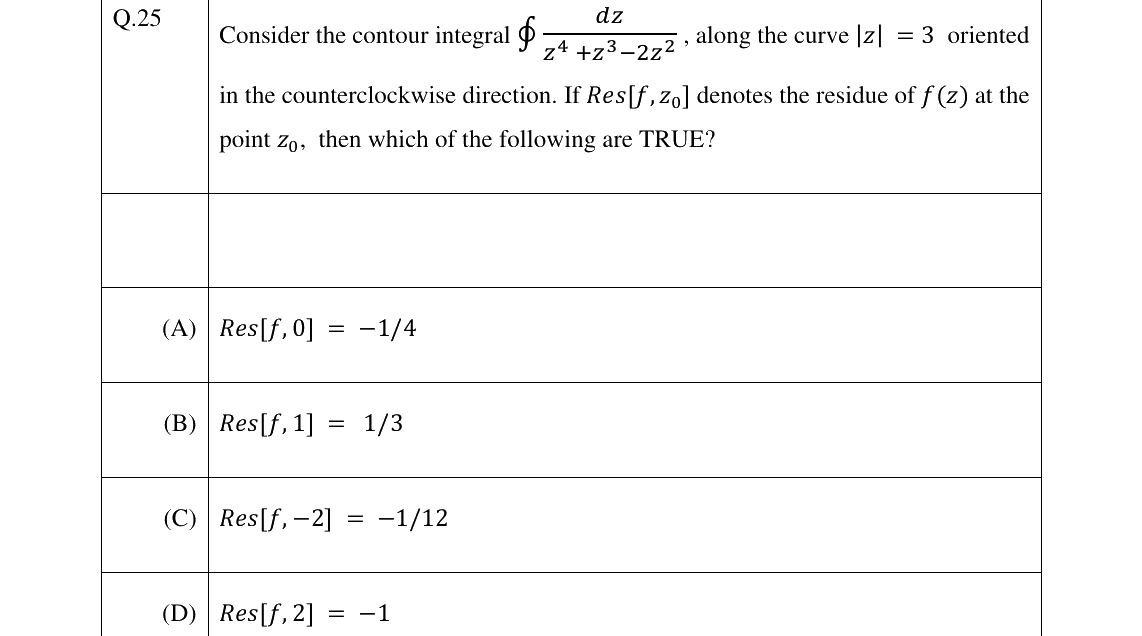

Q.25 · NM · 1 mark · MSQ
Show answer
Answer: A, B, C

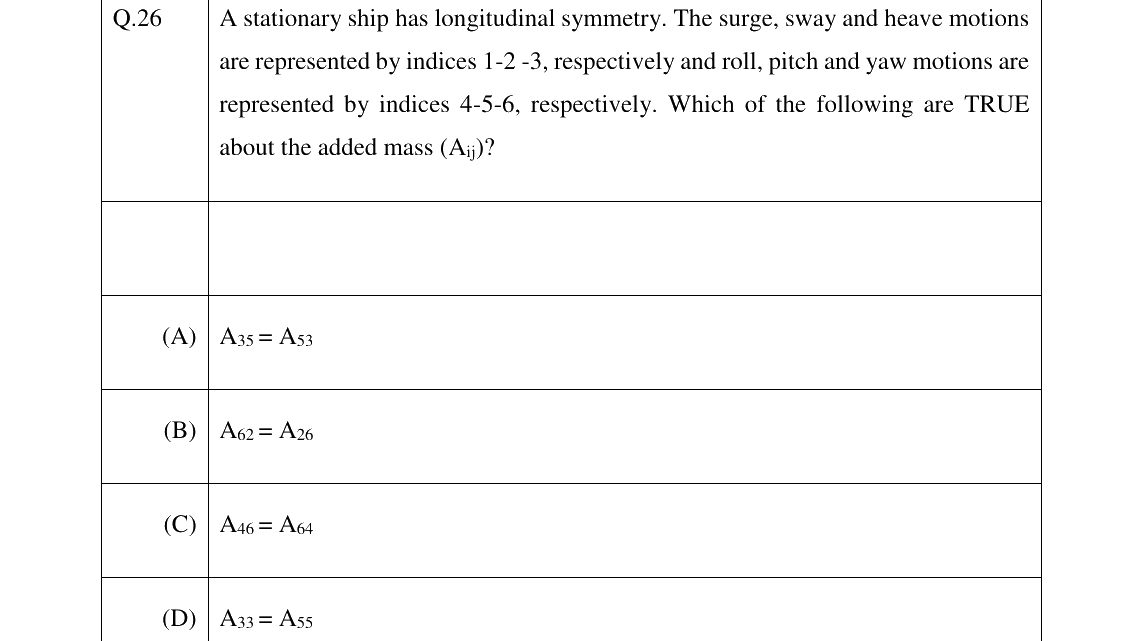

Q.26 · NM · 1 mark · MSQ
Show answer
Answer: A, B, C

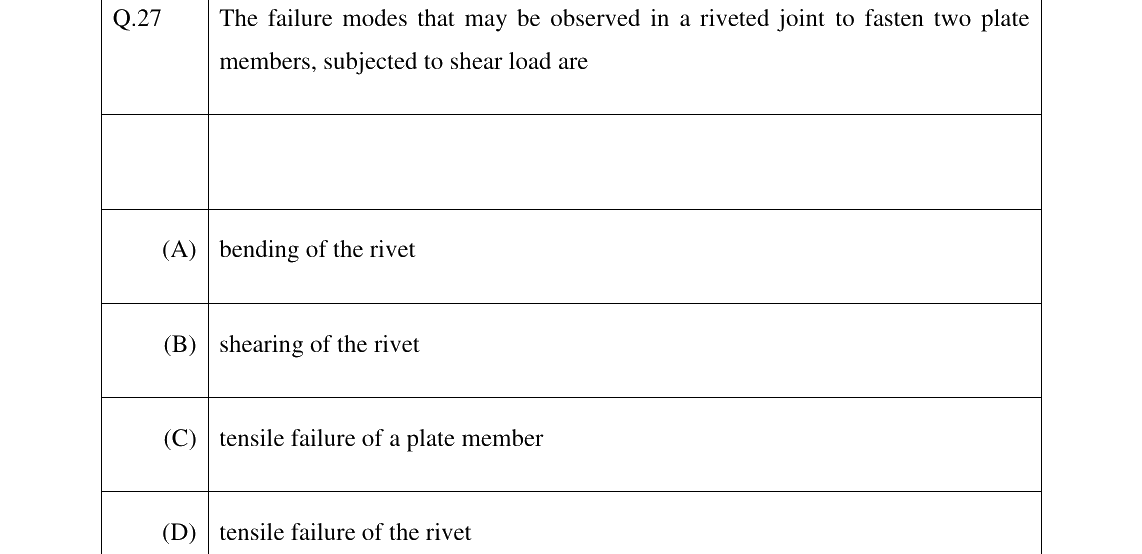

Q.27 · NM · 1 mark · MSQ
Show answer
Answer: A, B, C

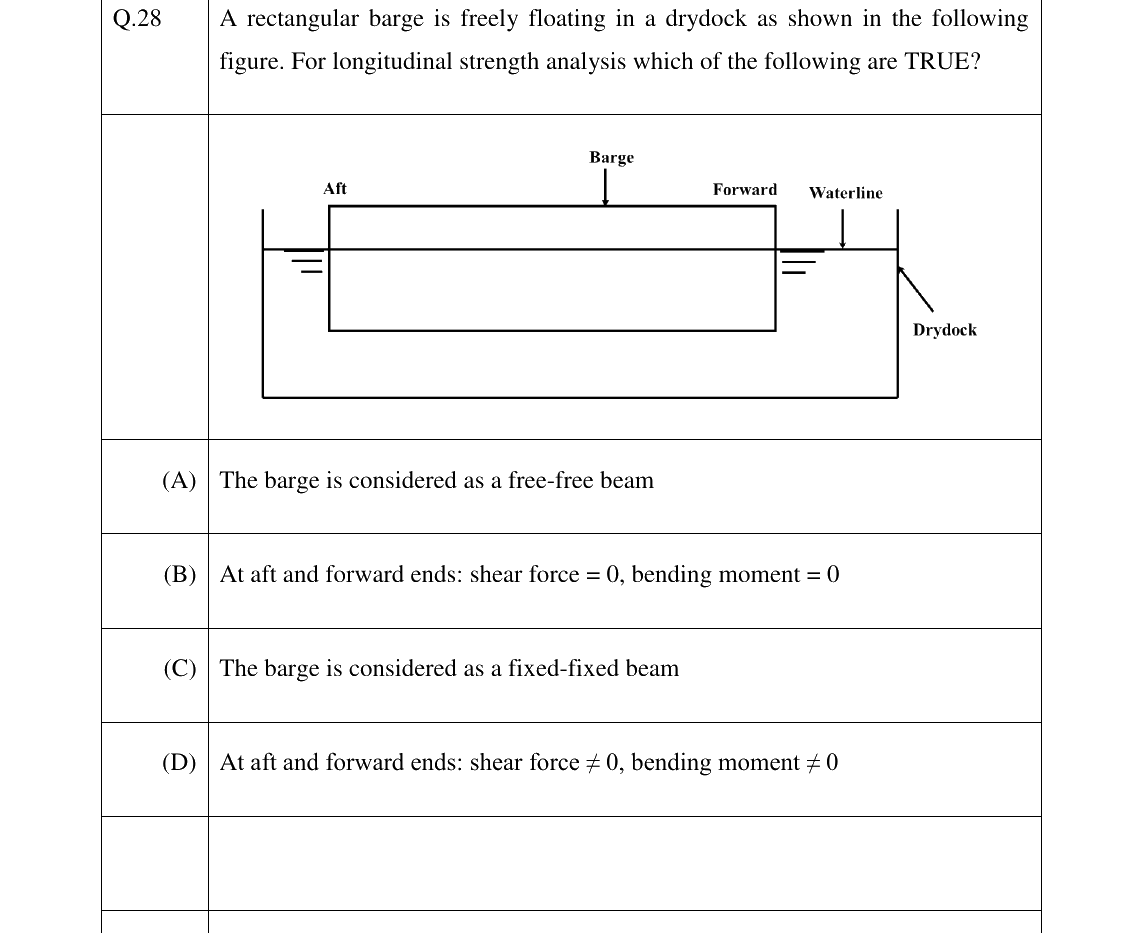

Q.28 · NM · 1 mark · MSQ
Show answer
Answer: A, B

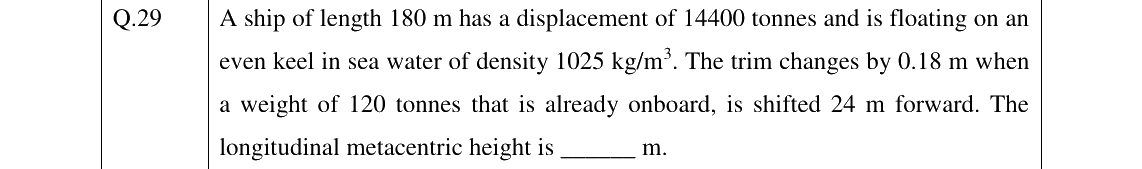

Q.29 · NM · 1 mark · NAT
Show answer
Answer: 200

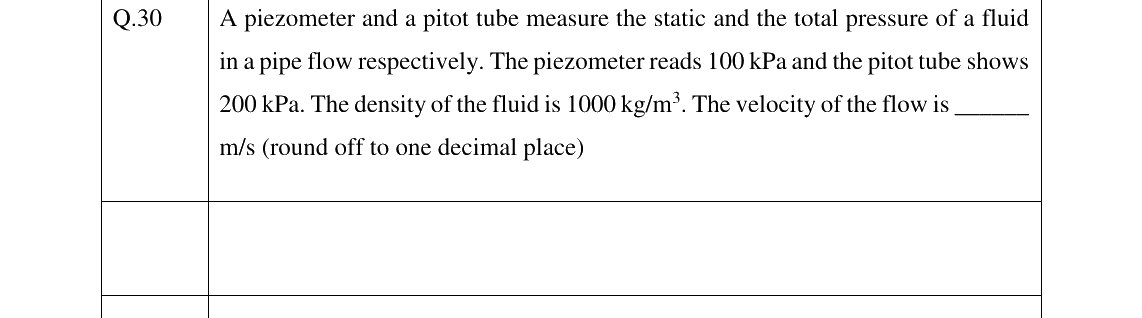

Q.30 · NM · 1 mark · NAT
Show answer
Answer: 13.5 to 14.5

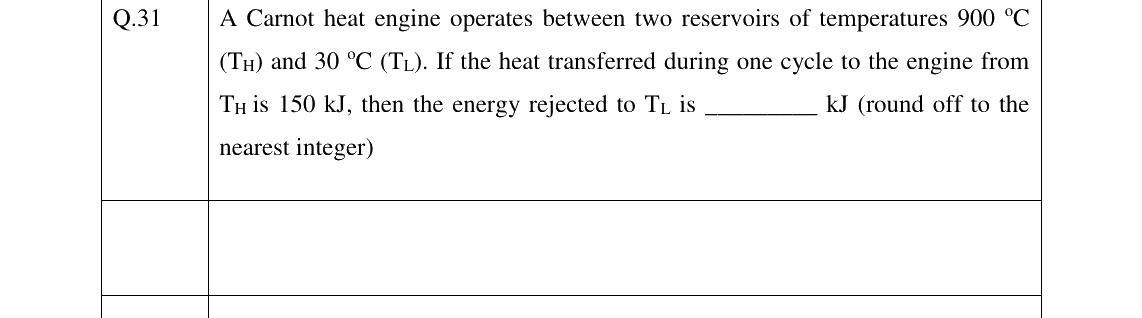

Q.31 · NM · 1 mark · NAT
Show answer
Answer: 38 to 39

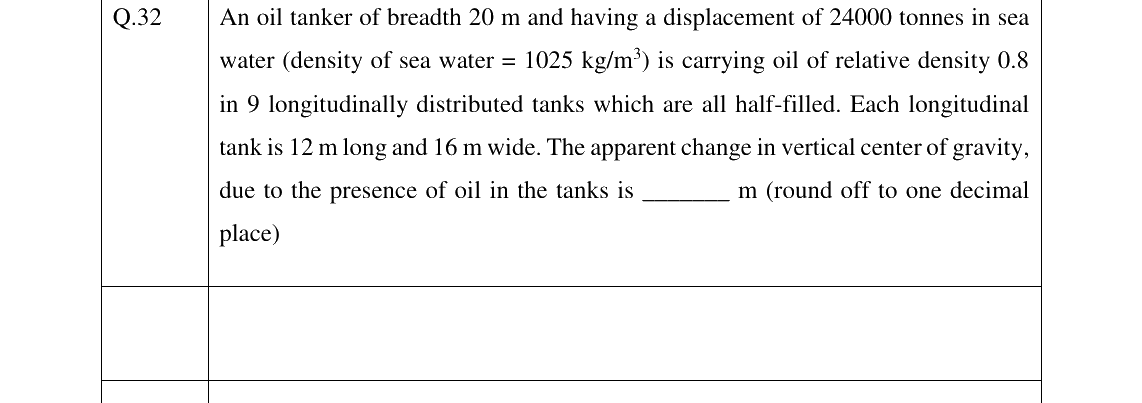

Q.32 · NM · 1 mark · NAT
Show answer
Answer: 1.1 to 1.3

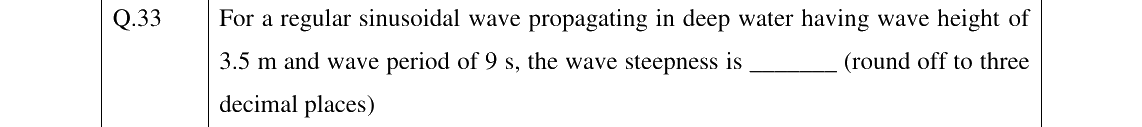

Q.33 · NM · 1 mark · NAT
Show answer
Answer: 0.025 to 0.032

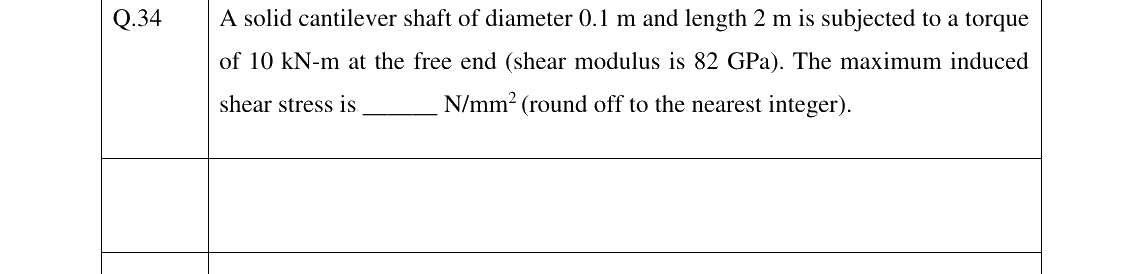

Q.34 · NM · 1 mark · NAT
Show answer
Answer: 50 to 52

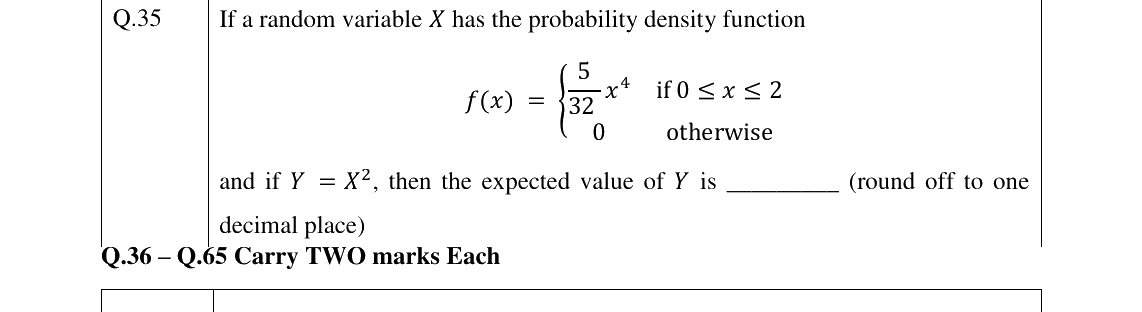

Q.35 · NM · 1 mark · NAT
Show answer
Answer: 2.8 to 2.9

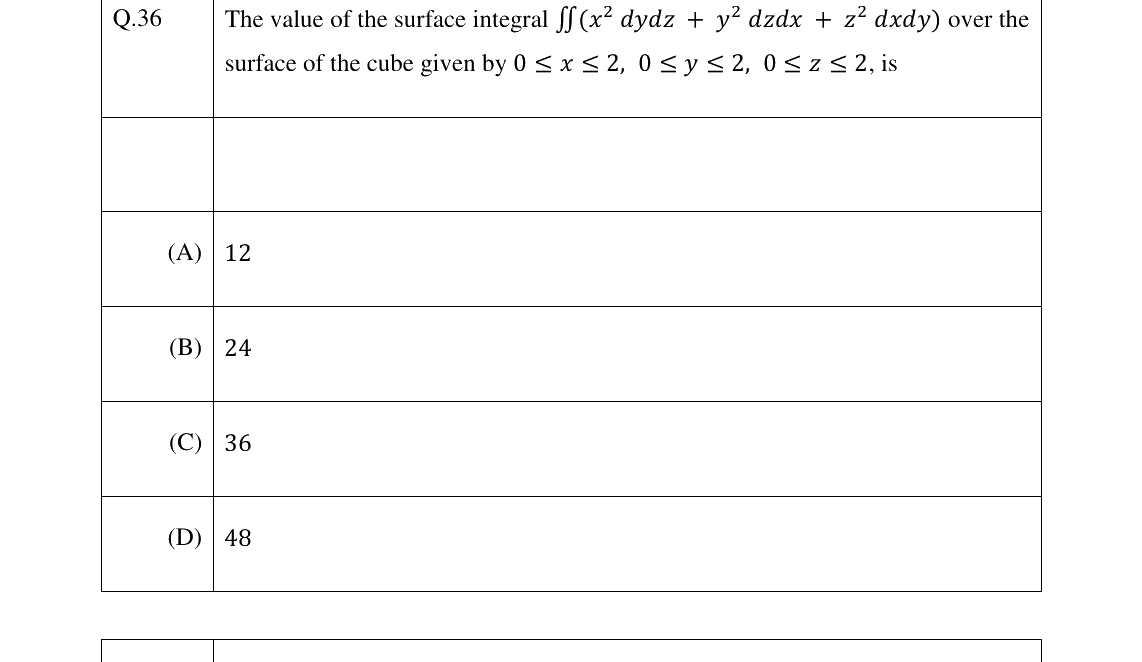

Q.36 · NM · 2 marks · MCQ
Show answer
Answer: D

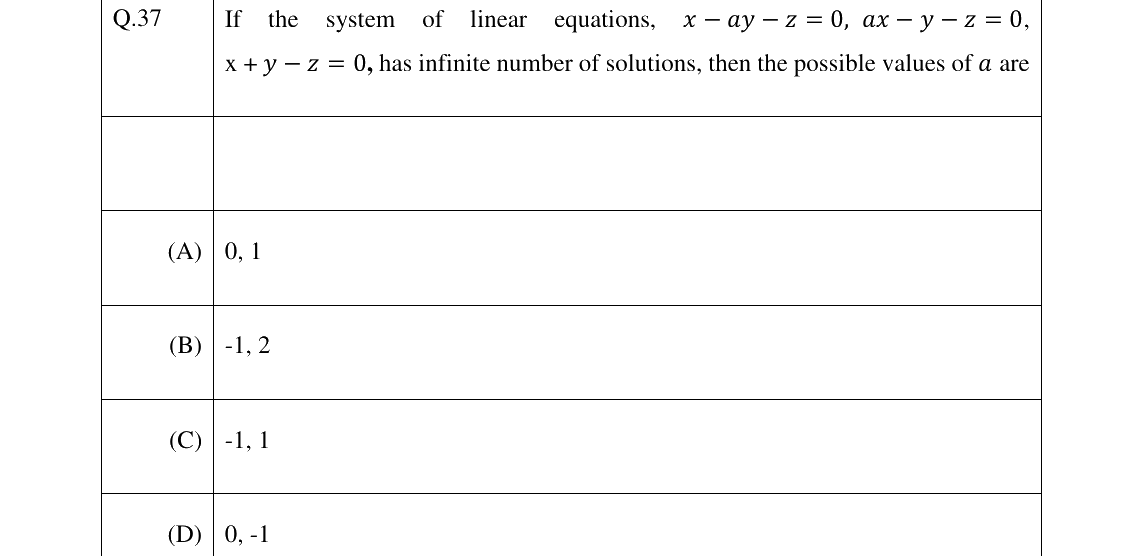

Q.37 · NM · 2 marks · MCQ
Show answer
Answer: C
Q.38 · NM · 2 marks · MCQ
Show answer
Answer: A
Q.39 · NM · 2 marks · MCQ
Show answer
Answer: A
Q.40 · NM · 2 marks · MCQ
Show answer
Answer: A

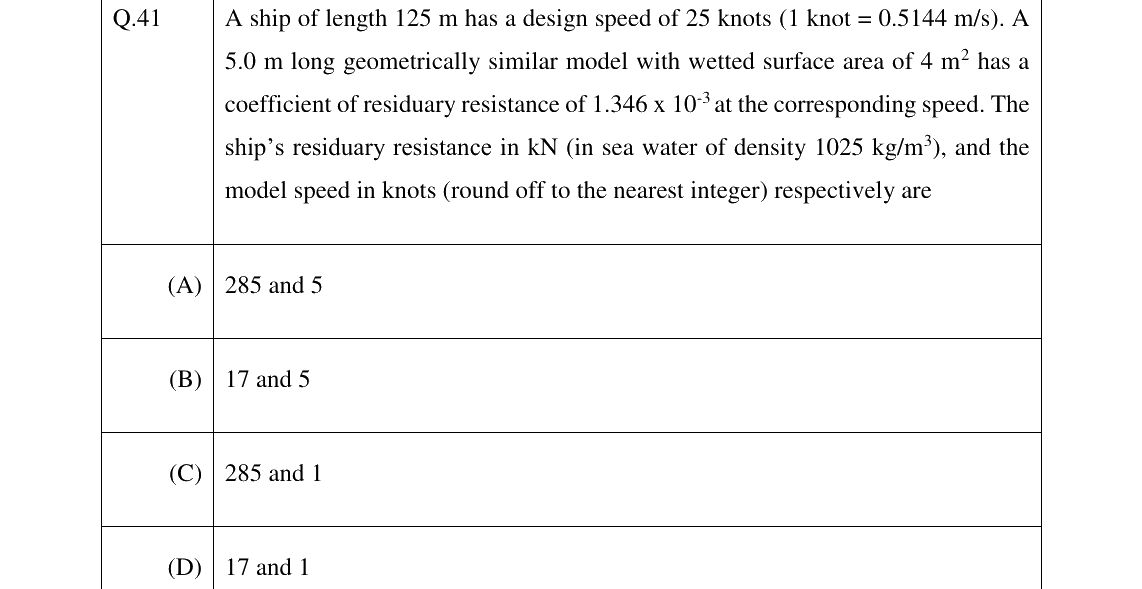

Q.41 · NM · 2 marks · MCQ
Show answer
Answer: A

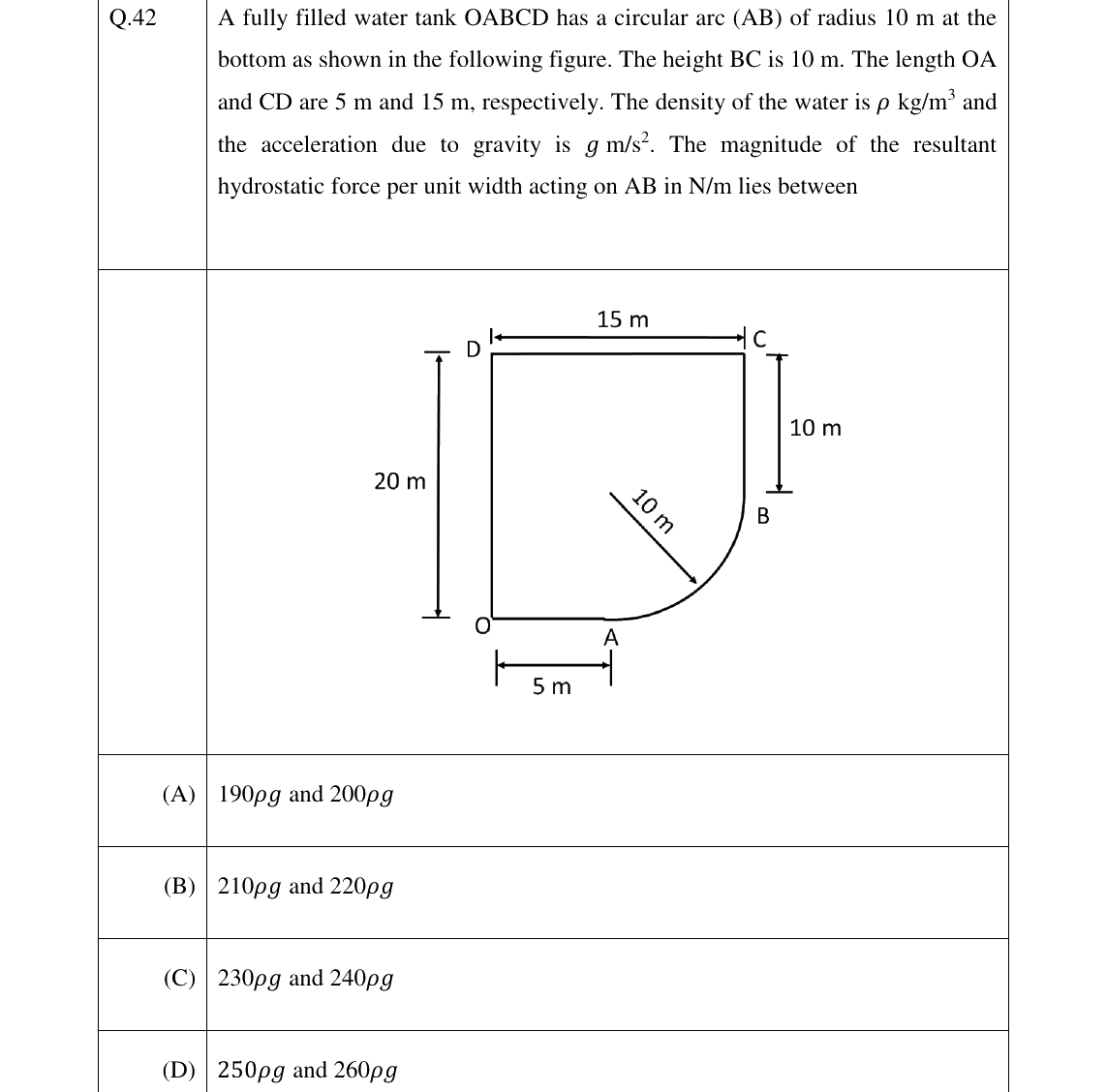

Q.42 · NM · 2 marks · MCQ
Show answer
Answer: C

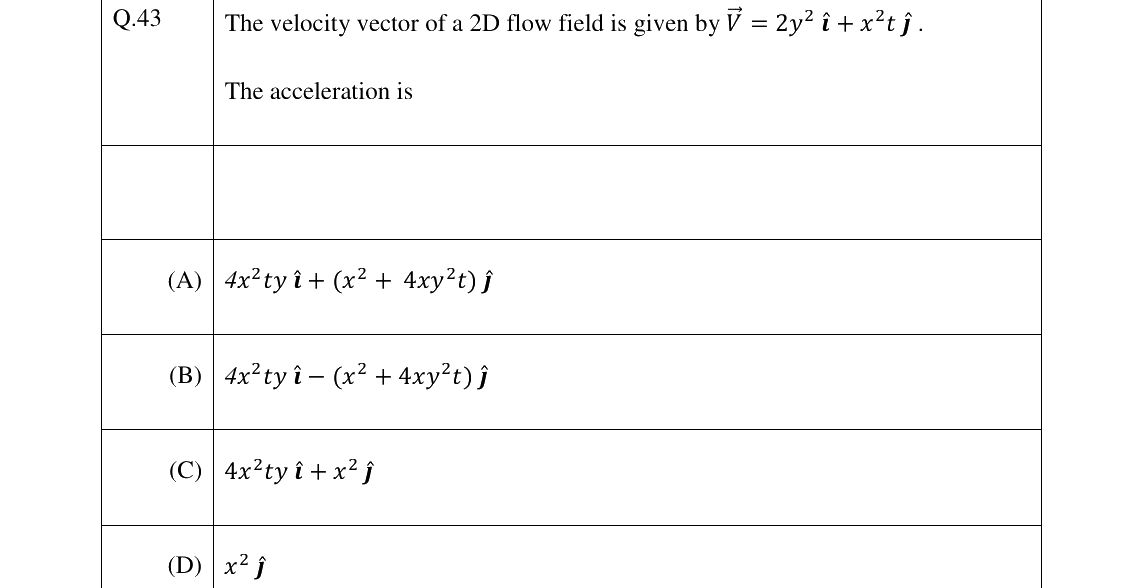

Q.43 · NM · 2 marks · MCQ
Show answer
Answer: A

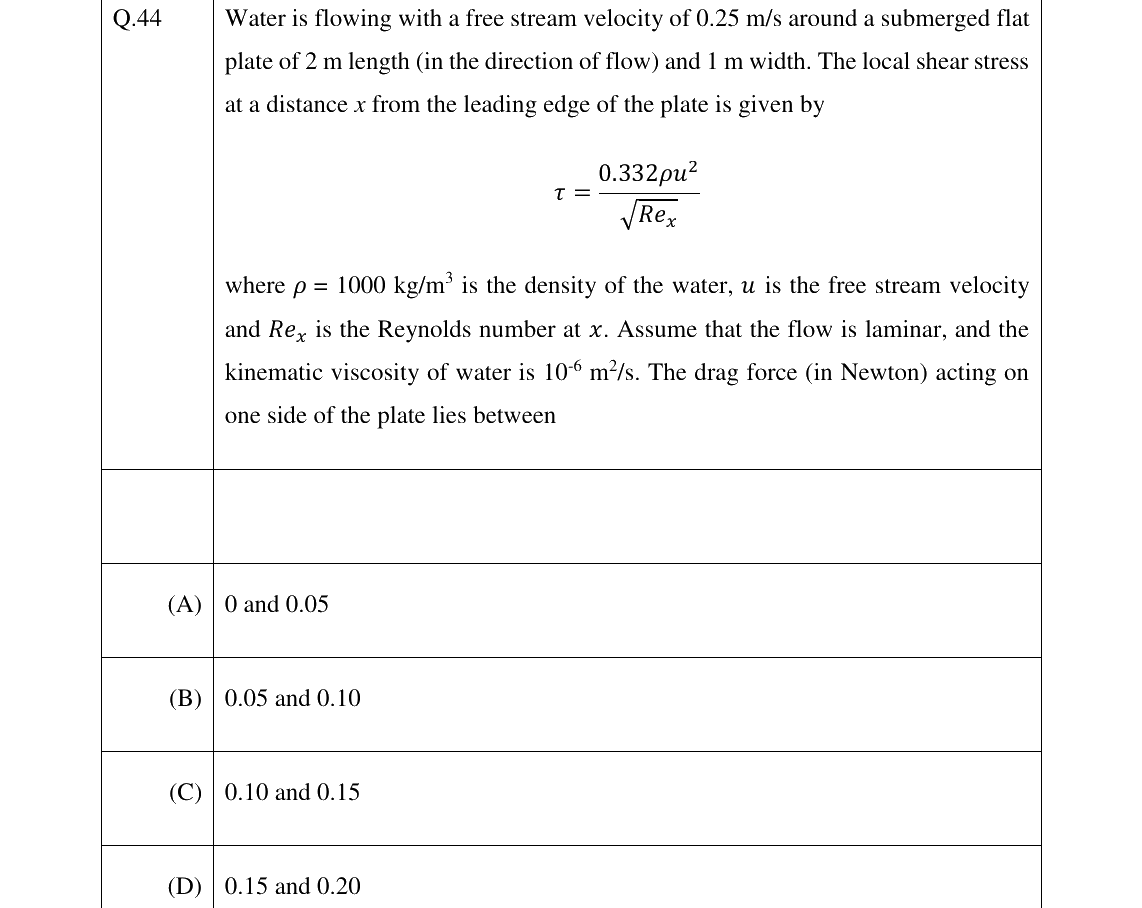

Q.44 · NM · 2 marks · MCQ
Show answer
Answer: C

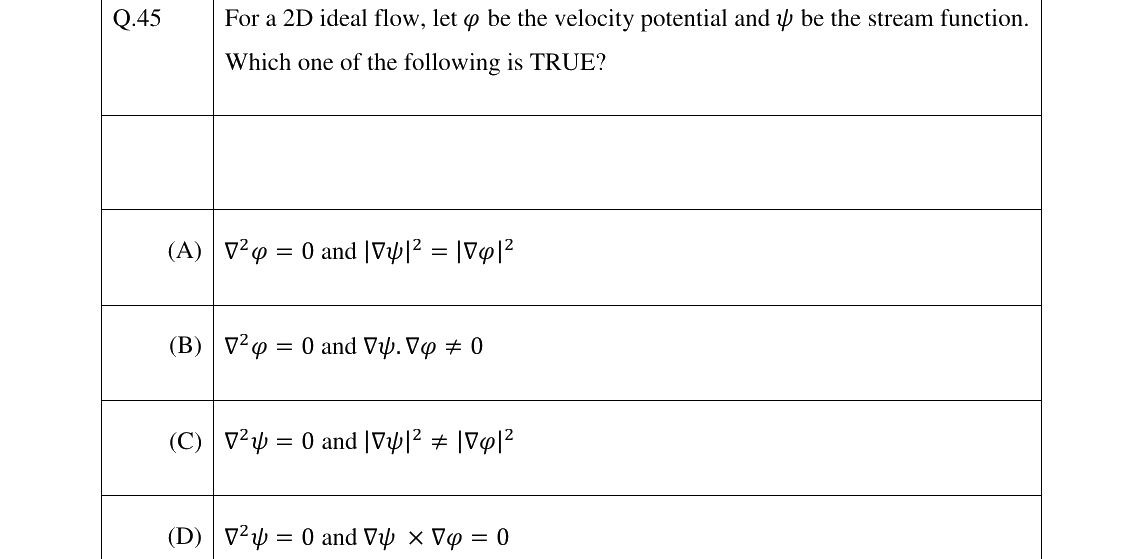

Q.45 · NM · 2 marks · MCQ
Show answer
Answer: A

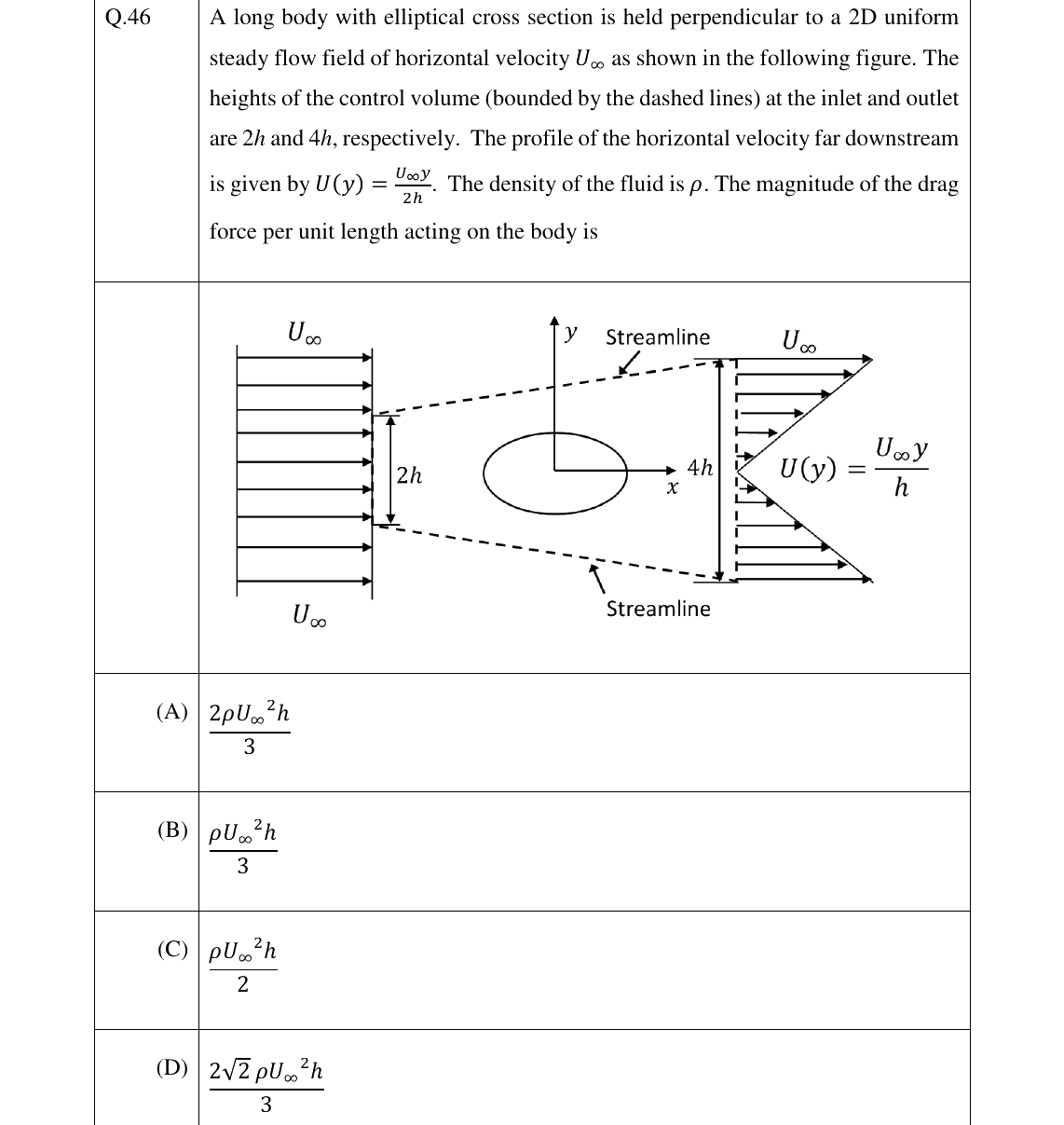

Q.46 · NM · 2 marks · MCQ
Show answer
Answer: A

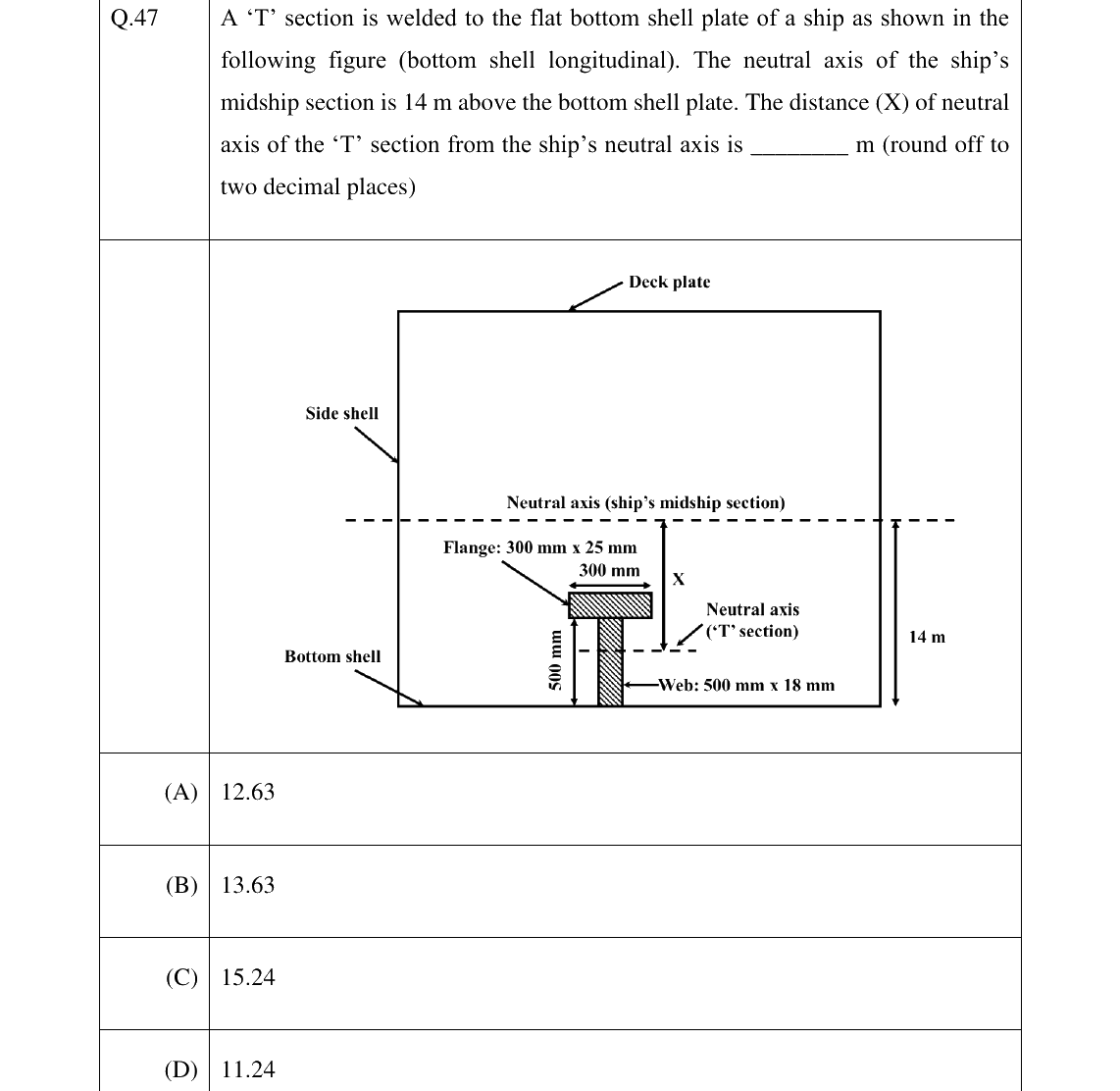

Q.47 · NM · 2 marks · MCQ
Show answer
Answer: B

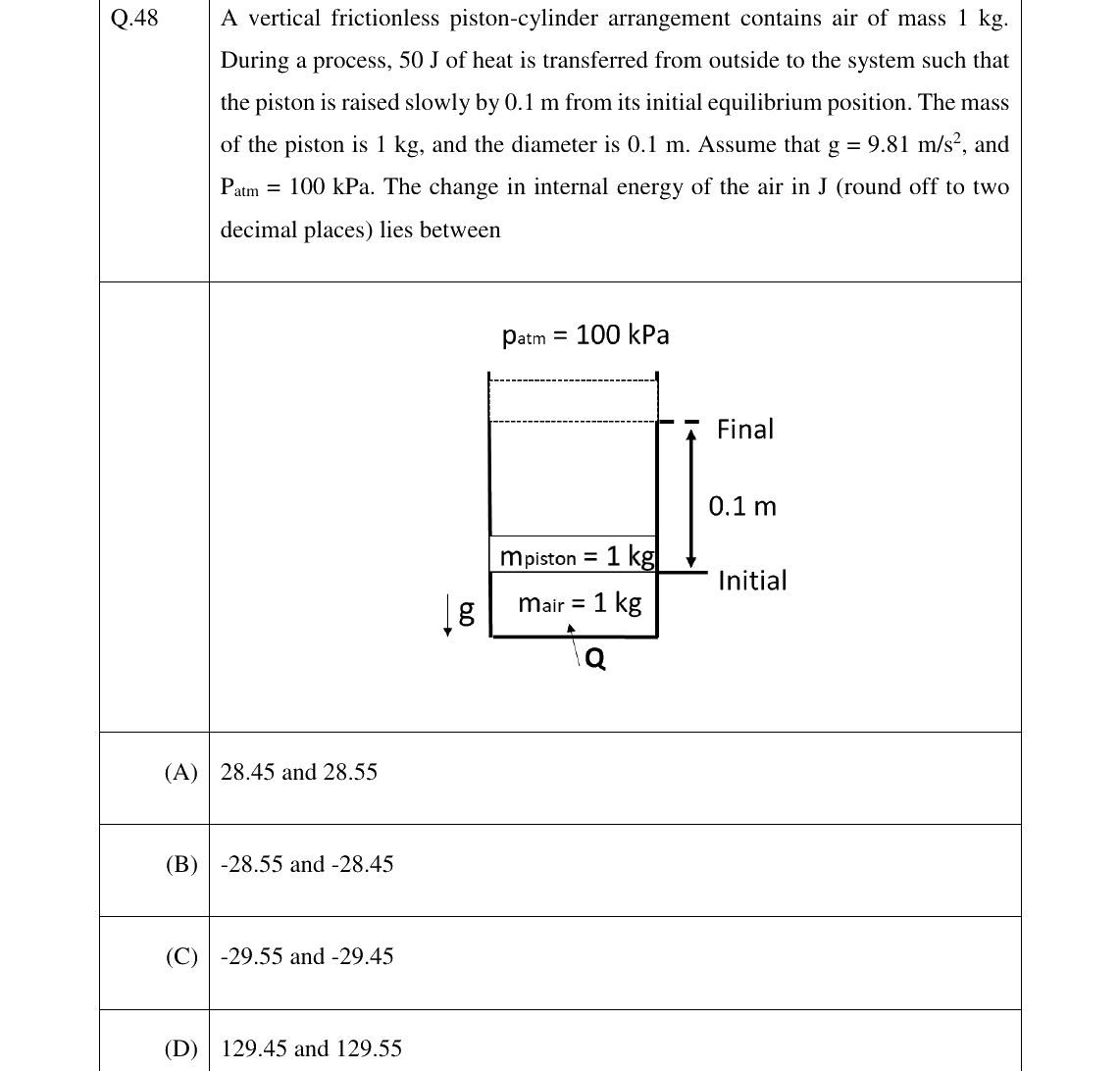

Q.48 · NM · 2 marks · MCQ
Show answer
Answer: C

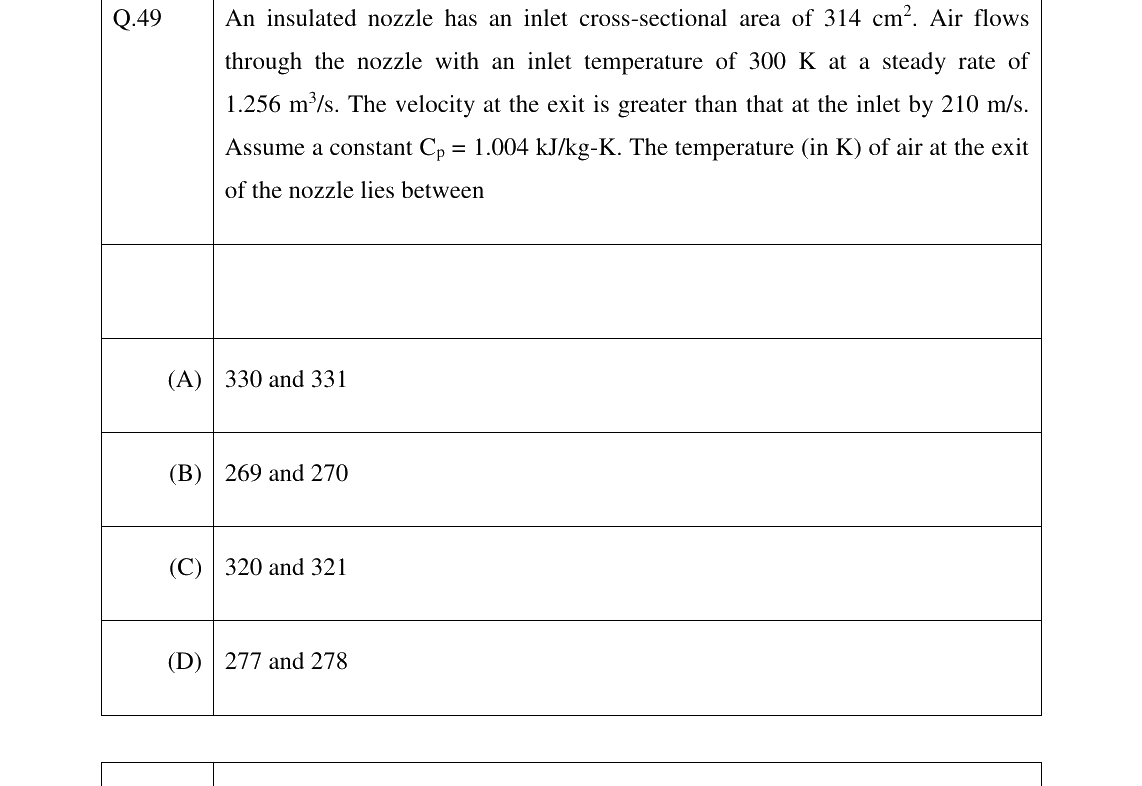

Q.49 · NM · 2 marks · MCQ
Show answer
Answer: B

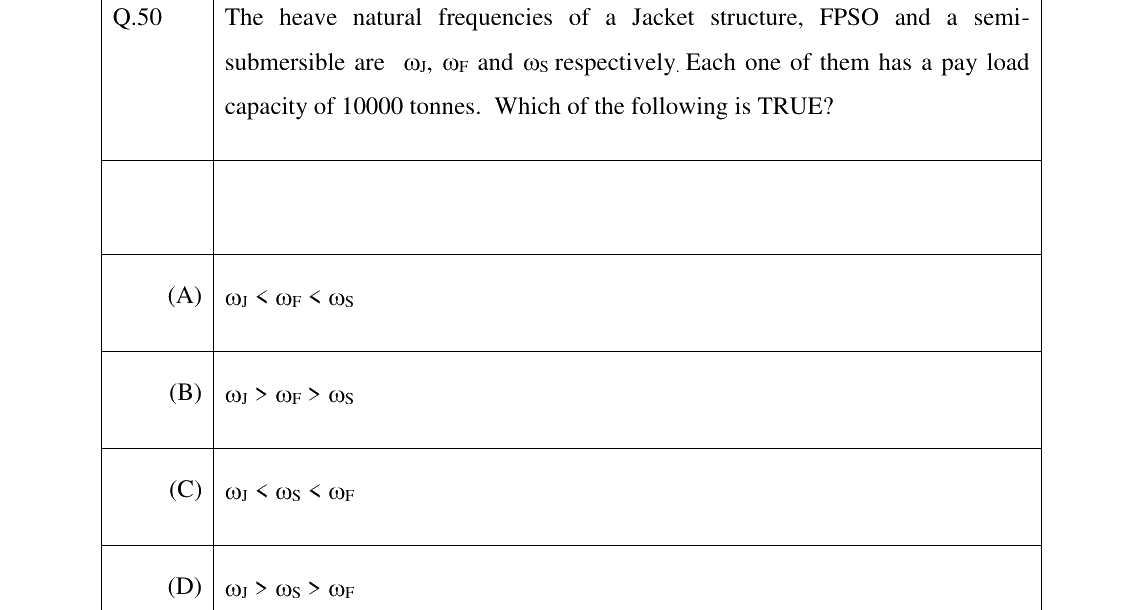

Q.50 · NM · 2 marks · MCQ
Show answer
Answer: B

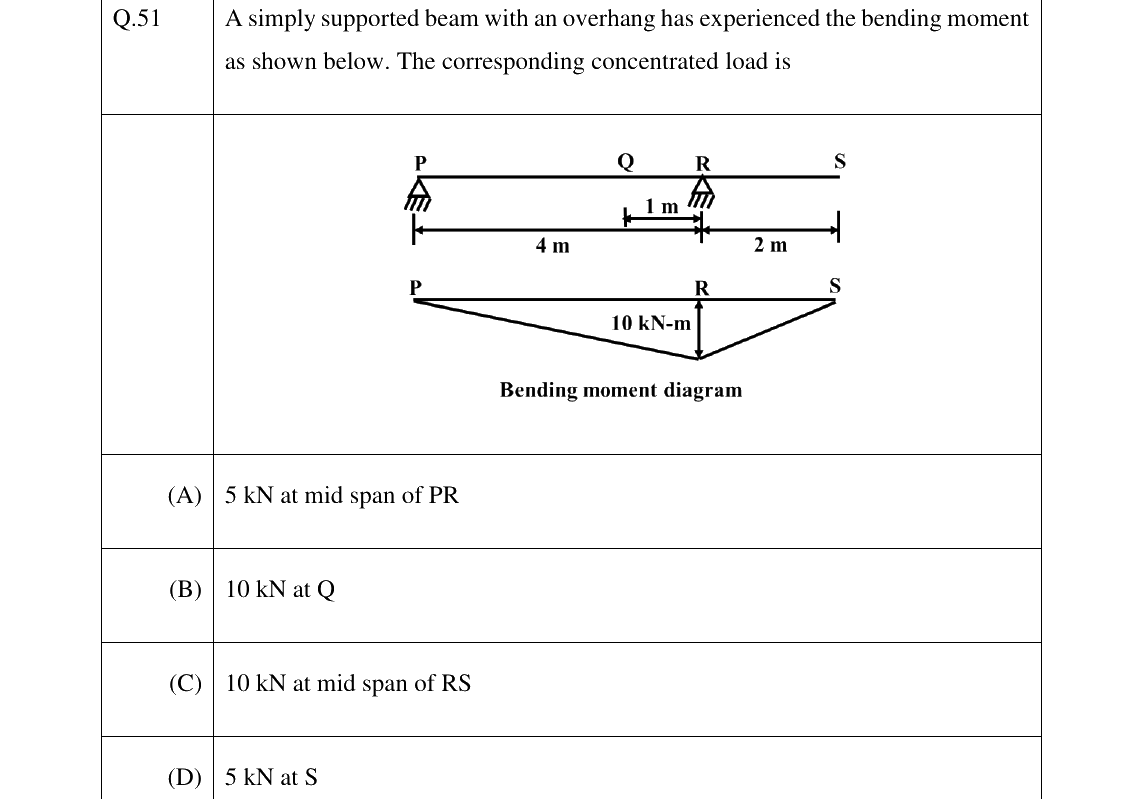

Q.51 · NM · 2 marks · MCQ
Show answer
Answer: D

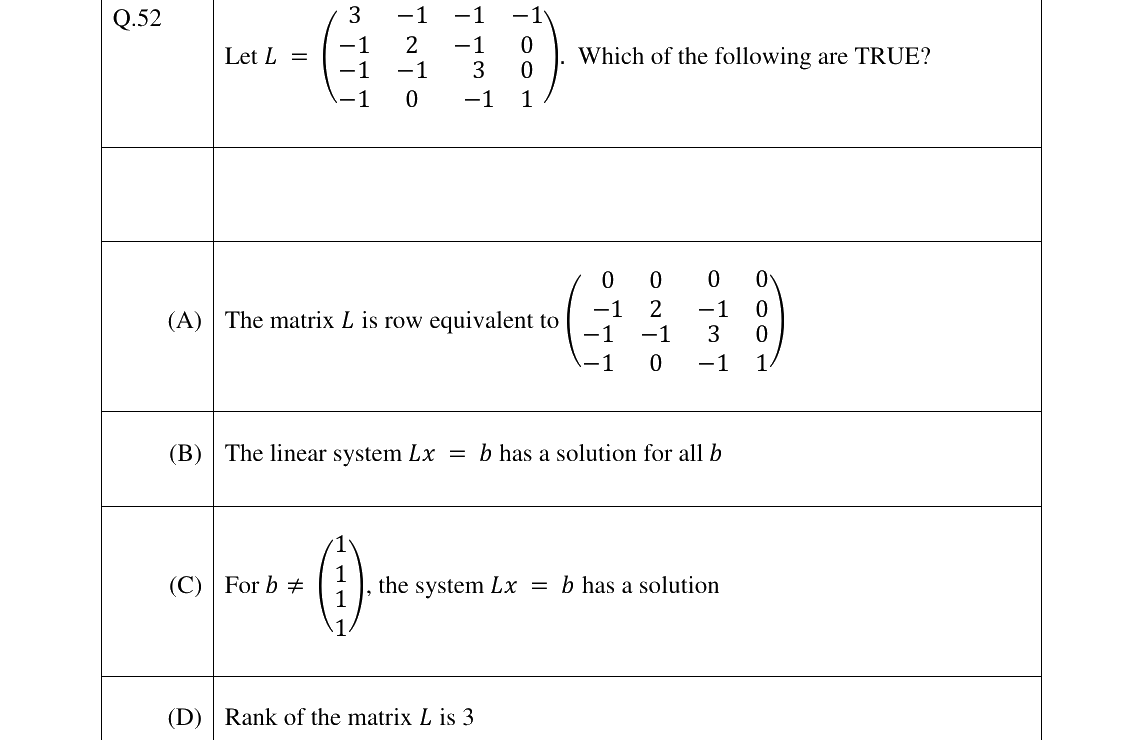

Q.52 · NM · 2 marks · MSQ
Show answer
Answer: A, D

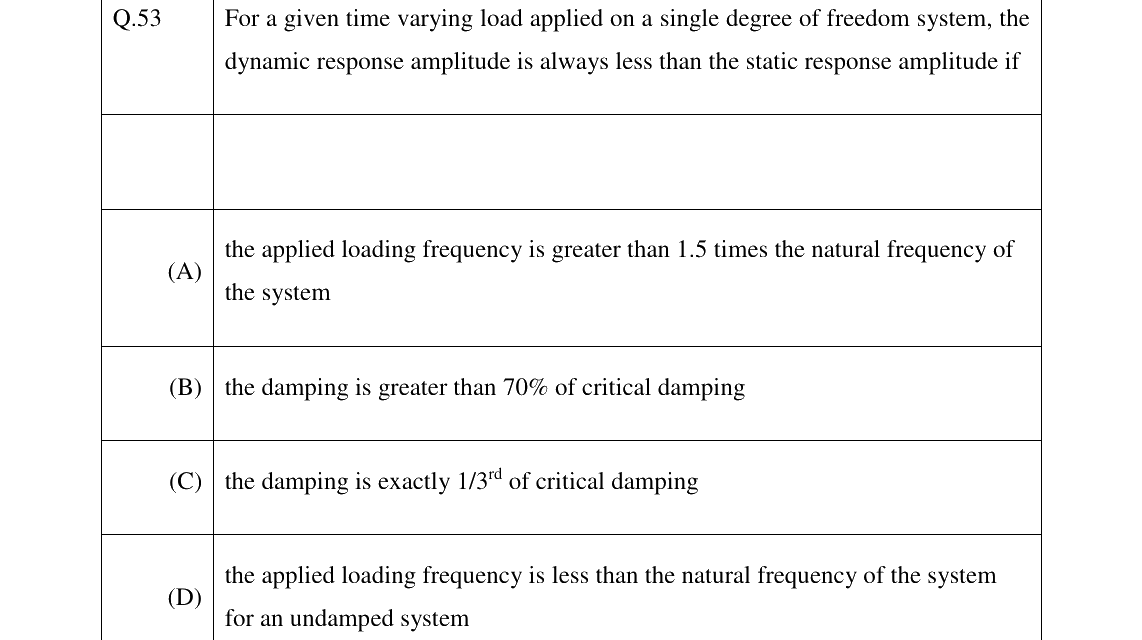

Q.53 · NM · 2 marks · MSQ
Show answer
Answer: A, B

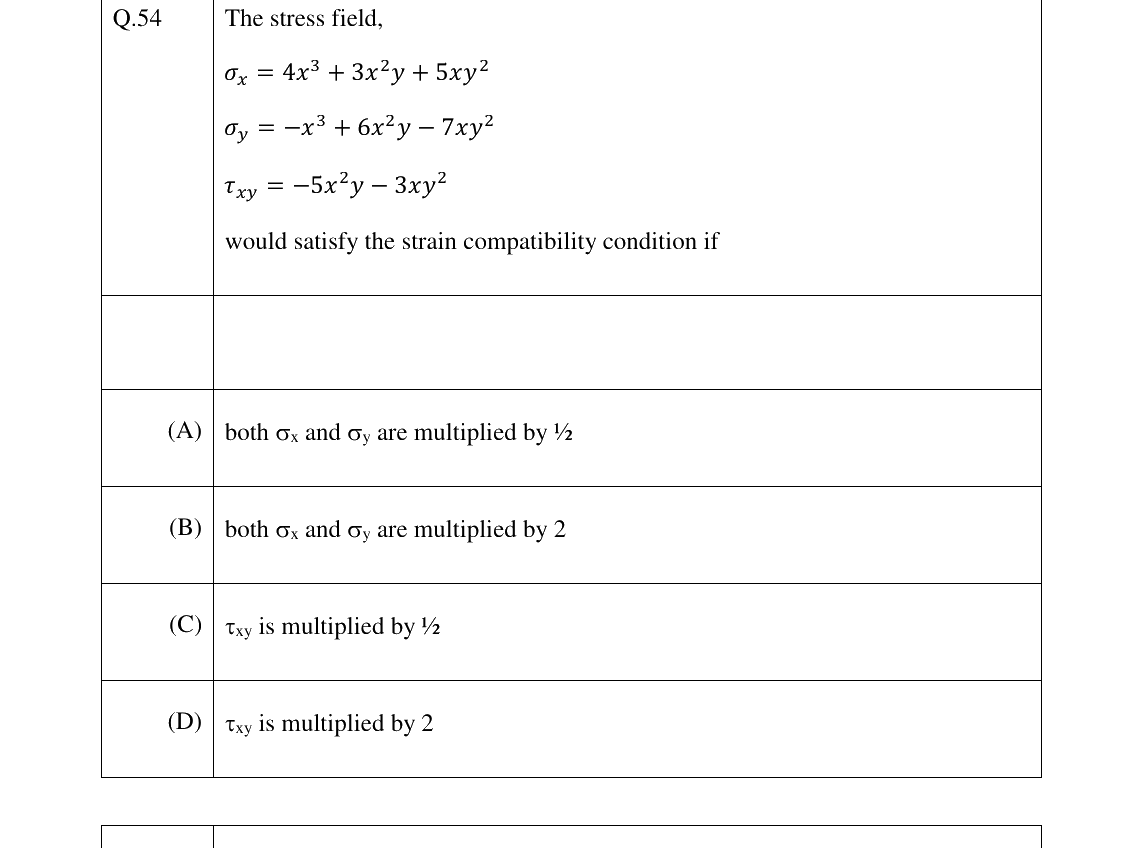

Q.54 · NM · 2 marks · MSQ
Show answer
Answer: B, C

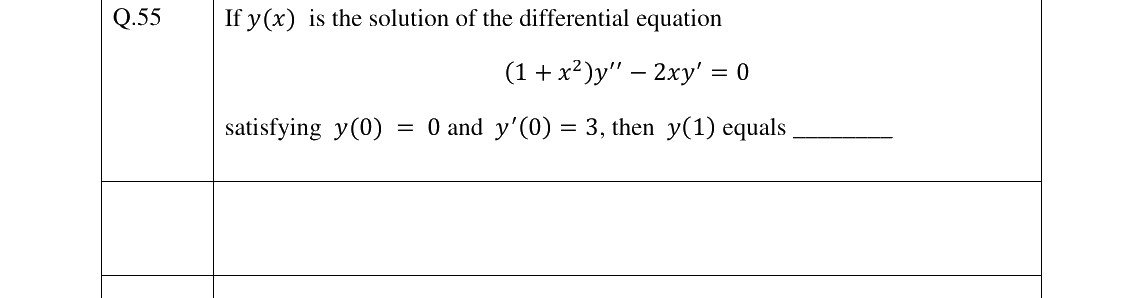

Q.55 · NM · 2 marks · NAT
Show answer
Answer: 4

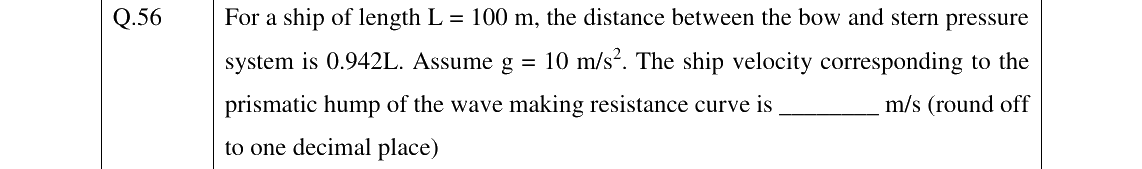

Q.56 · NM · 2 marks · NAT
Show answer
Answer: 9.9 to 10.1

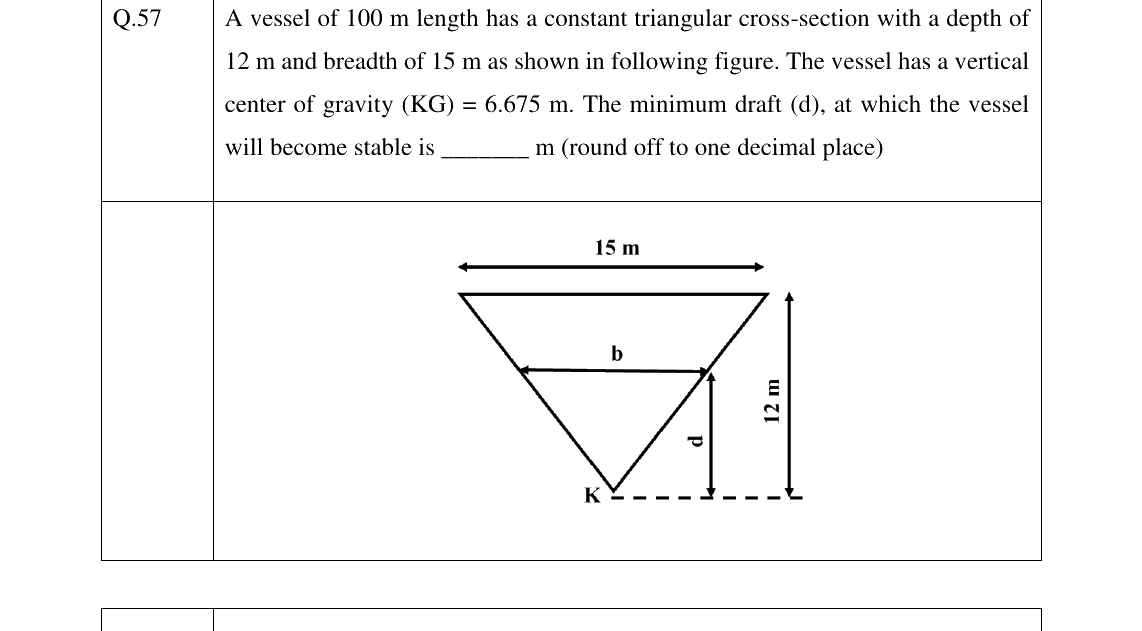

Q.57 · NM · 2 marks · NAT
Show answer
Answer: 7.1 to 7.3

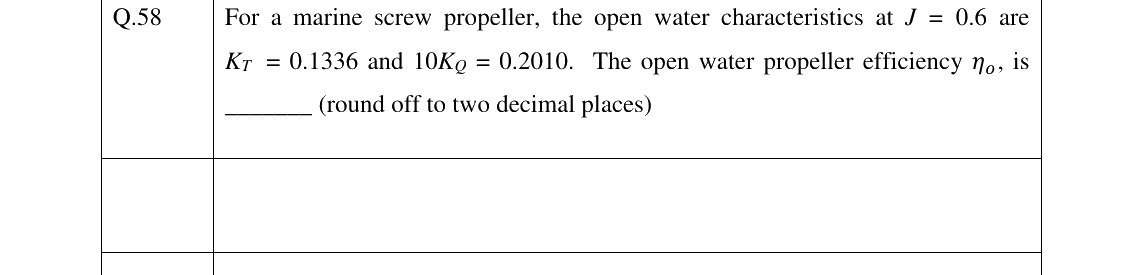

Q.58 · NM · 2 marks · NAT
Show answer
Answer: 0.62 to 0.65

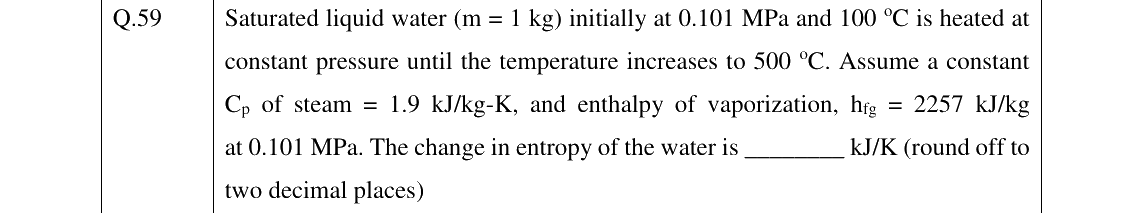

Q.59 · NM · 2 marks · NAT
Show answer
Answer: 7.35 to 7.55

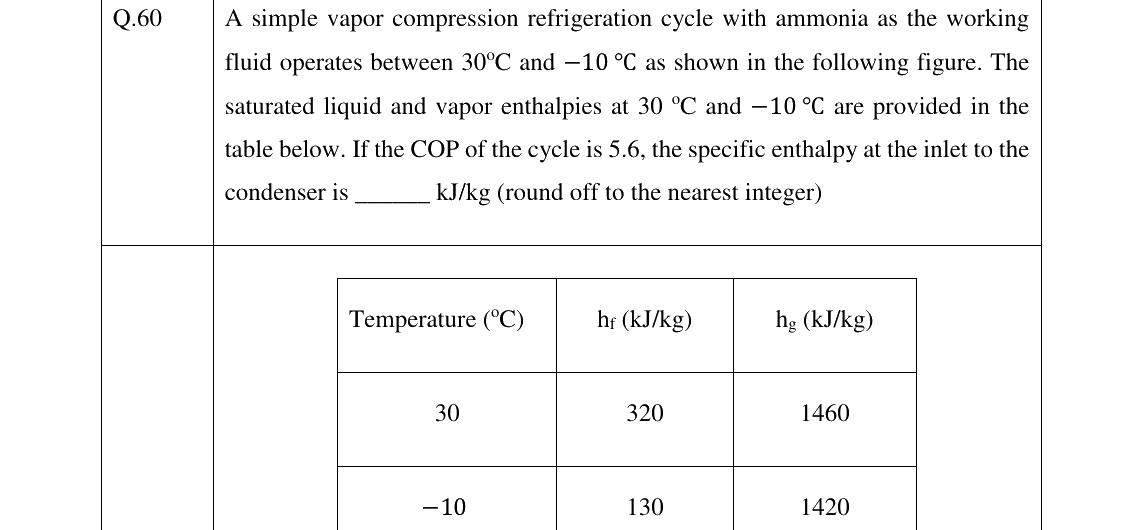

Q.60 · NM · 2 marks · NAT
Show answer
Answer: 1615 to 1617

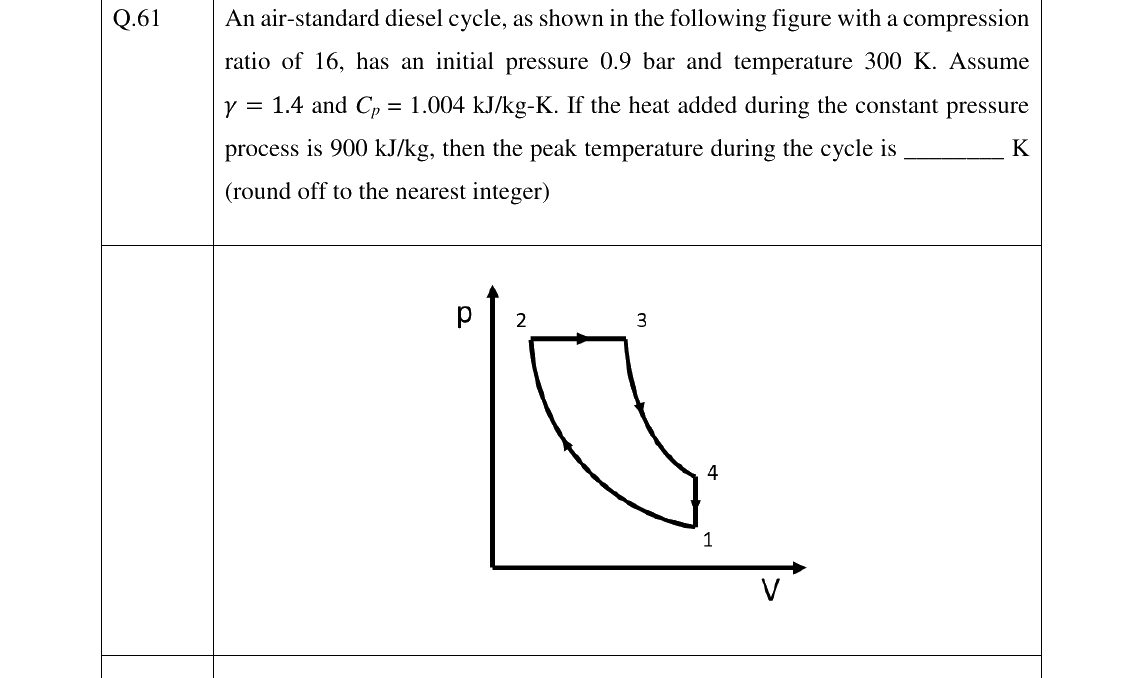

Q.61 · NM · 2 marks · NAT
Show answer
Answer: 1805 to 1807

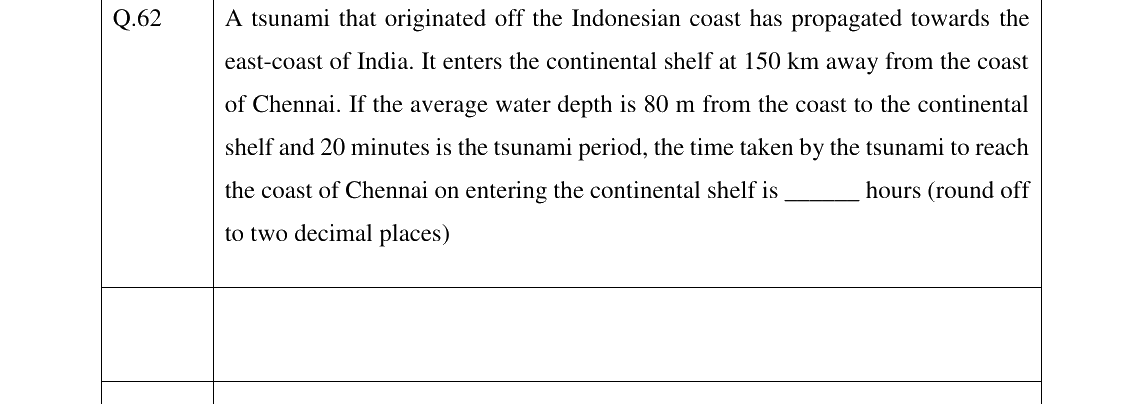

Q.62 · NM · 2 marks · NAT
Show answer
Answer: 1.45 to 1.5

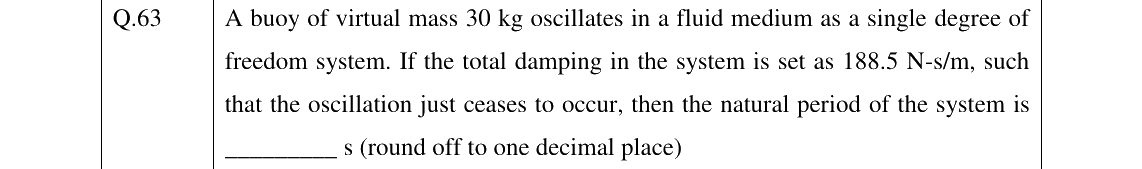

Q.63 · NM · 2 marks · NAT
Show answer
Answer: 1.9 to 2.1

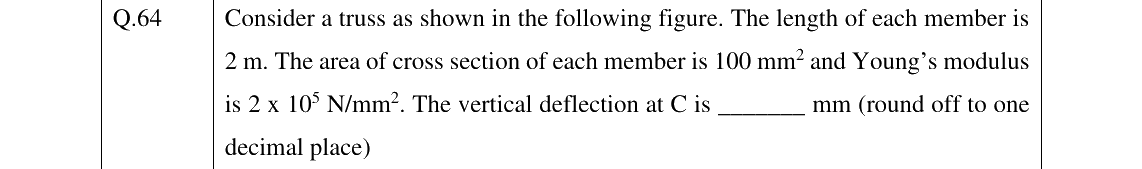

Q.64 · NM · 2 marks · NAT
Show answer
Answer: 0.7 to 0.8

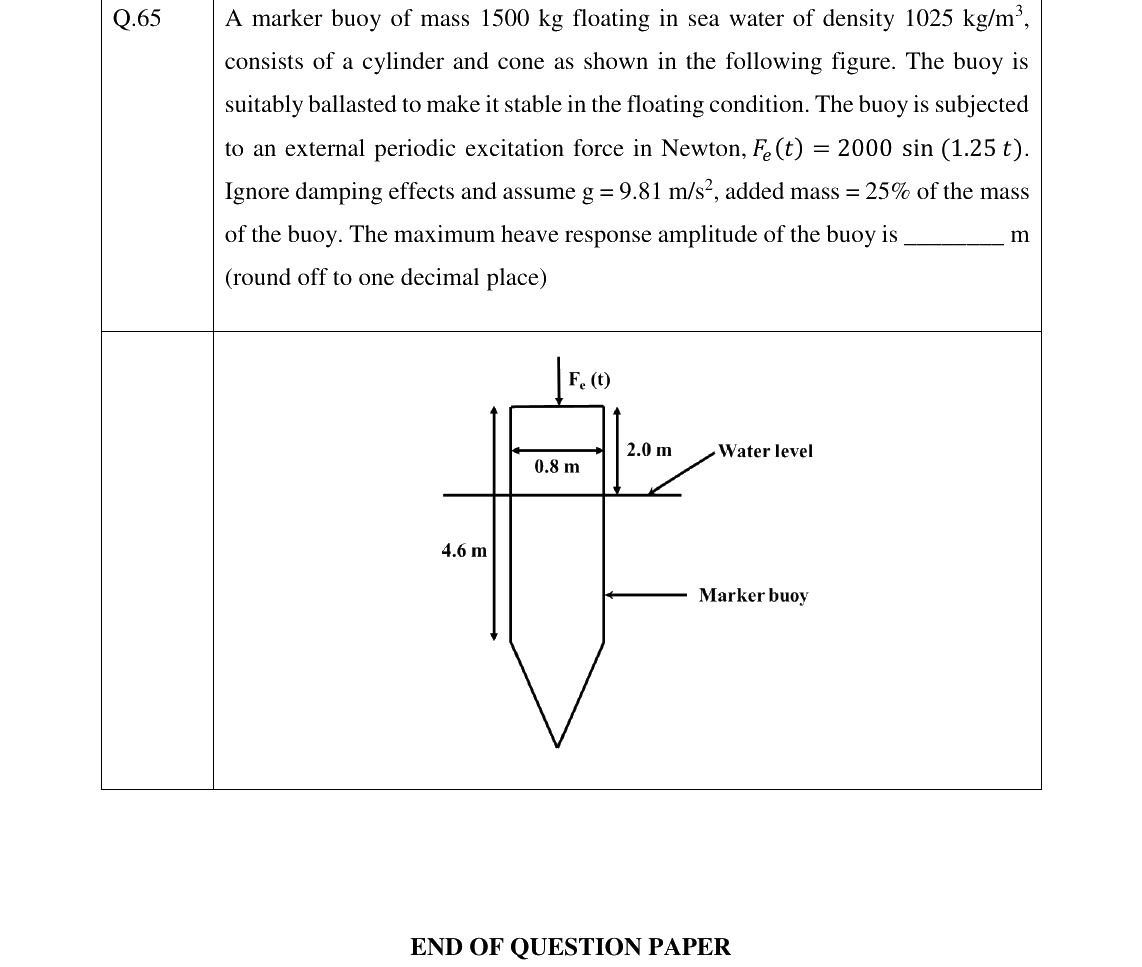

Q.65 · NM · 2 marks · NAT
Show answer
Answer: 0.9 to 1
GATE 2023 NM official answer key
From the official GATE answer key ↗. Numerical answers are accepted anywhere in the range shown.
| Q. | Section | Type | Marks | Answer |
|---|---|---|---|---|
| 1 | GA | MCQ | 1 | B |
| 2 | GA | MCQ | 1 | C |
| 3 | GA | MCQ | 1 | B |
| 4 | GA | MCQ | 1 | D |
| 5 | GA | MCQ | 1 | C |
| 6 | GA | MCQ | 2 | D |
| 7 | GA | MCQ | 2 | A |
| 8 | GA | MCQ | 2 | C |
| 9 | GA | MCQ | 2 | A |
| 10 | GA | MCQ | 2 | D |
| 11 | NM | MCQ | 1 | B |
| 12 | NM | MCQ | 1 | C |
| 13 | NM | MCQ | 1 | C |
| 14 | NM | MCQ | 1 | A |
| 15 | NM | MCQ | 1 | C |
| 16 | NM | MCQ | 1 | C |
| 17 | NM | MCQ | 1 | C |
| 18 | NM | MCQ | 1 | D |
| 19 | NM | MCQ | 1 | B |
| 20 | NM | MCQ | 1 | B |
| 21 | NM | MCQ | 1 | D |
| 22 | NM | MCQ | 1 | A |
| 23 | NM | MCQ | 1 | D |
| 24 | NM | MSQ | 1 | A, D |
| 25 | NM | MSQ | 1 | A, B, C |
| 26 | NM | MSQ | 1 | A, B, C |
| 27 | NM | MSQ | 1 | A, B, C |
| 28 | NM | MSQ | 1 | A, B |
| 29 | NM | NAT | 1 | 200 |
| 30 | NM | NAT | 1 | 13.5 to 14.5 |
| 31 | NM | NAT | 1 | 38 to 39 |
| 32 | NM | NAT | 1 | 1.1 to 1.3 |
| 33 | NM | NAT | 1 | 0.025 to 0.032 |
| 34 | NM | NAT | 1 | 50 to 52 |
| 35 | NM | NAT | 1 | 2.8 to 2.9 |
| 36 | NM | MCQ | 2 | D |
| 37 | NM | MCQ | 2 | C |
| 38 | NM | MCQ | 2 | A |
| 39 | NM | MCQ | 2 | A |
| 40 | NM | MCQ | 2 | A |
| 41 | NM | MCQ | 2 | A |
| 42 | NM | MCQ | 2 | C |
| 43 | NM | MCQ | 2 | A |
| 44 | NM | MCQ | 2 | C |
| 45 | NM | MCQ | 2 | A |
| 46 | NM | MCQ | 2 | A |
| 47 | NM | MCQ | 2 | B |
| 48 | NM | MCQ | 2 | C |
| 49 | NM | MCQ | 2 | B |
| 50 | NM | MCQ | 2 | B |
| 51 | NM | MCQ | 2 | D |
| 52 | NM | MSQ | 2 | A, D |
| 53 | NM | MSQ | 2 | A, B |
| 54 | NM | MSQ | 2 | B, C |
| 55 | NM | NAT | 2 | 4 |
| 56 | NM | NAT | 2 | 9.9 to 10.1 |
| 57 | NM | NAT | 2 | 7.1 to 7.3 |
| 58 | NM | NAT | 2 | 0.62 to 0.65 |
| 59 | NM | NAT | 2 | 7.35 to 7.55 |
| 60 | NM | NAT | 2 | 1615 to 1617 |
| 61 | NM | NAT | 2 | 1805 to 1807 |
| 62 | NM | NAT | 2 | 1.45 to 1.5 |
| 63 | NM | NAT | 2 | 1.9 to 2.1 |
| 64 | NM | NAT | 2 | 0.7 to 0.8 |
| 65 | NM | NAT | 2 | 0.9 to 1 |
