GATE 2024 EC question paper with official answer key
The complete GATE 2024 Electronics and Communication Engineering (EC) paper: 65 questions for 100 marks, with the official answer to every question. Try each question first, then open its answer, or practise the whole paper free with a 3-hour timer and your score.
GATE 2024 EC paper at a glance
- Questions
- 65
- Total marks
- 100
- General Aptitude
- 10 questions · 15 marks
- EC subject
- 55 questions · 85 marks
- Question types
- 39 MCQ · 8 MSQ · 18 NAT
- Duration
- 3 hours
In GATE, each MCQ carries 1 or 2 marks; a wrong MCQ answer costs one-third of its marks (−1/3 for a 1-mark and −2/3 for a 2-mark question). MSQ (multiple select) and NAT (numerical answer) questions have no negative marking. In this paper, 3 questions were dropped by GATE and given full marks to everyone.
All 65 questions
Each question is shown exactly as in the official paper. Tap “Show answer” to check yourself.

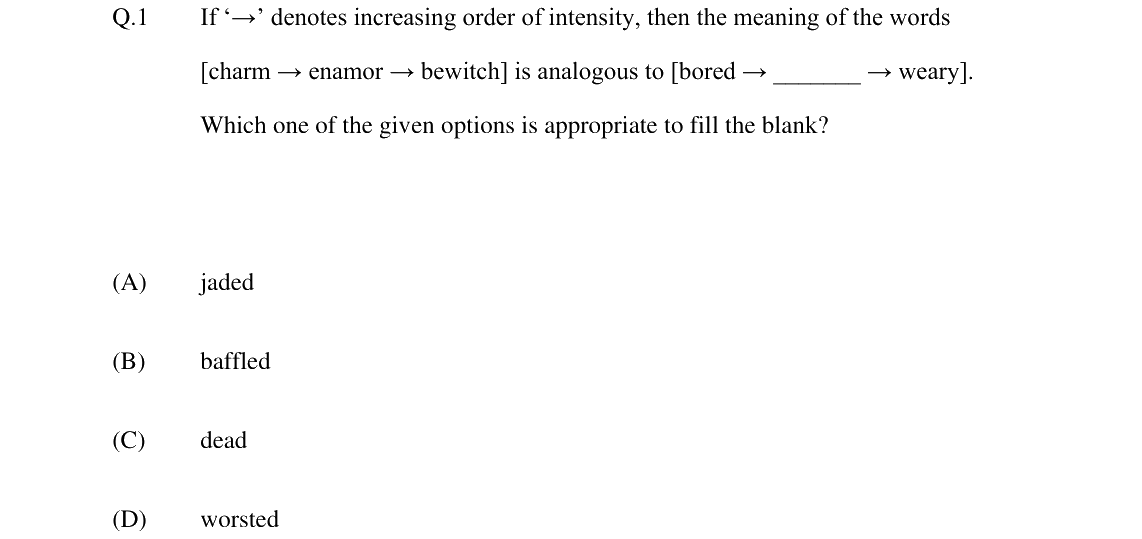

Q.1 · General Aptitude · 1 mark · MCQ
Show answer
Answer: A

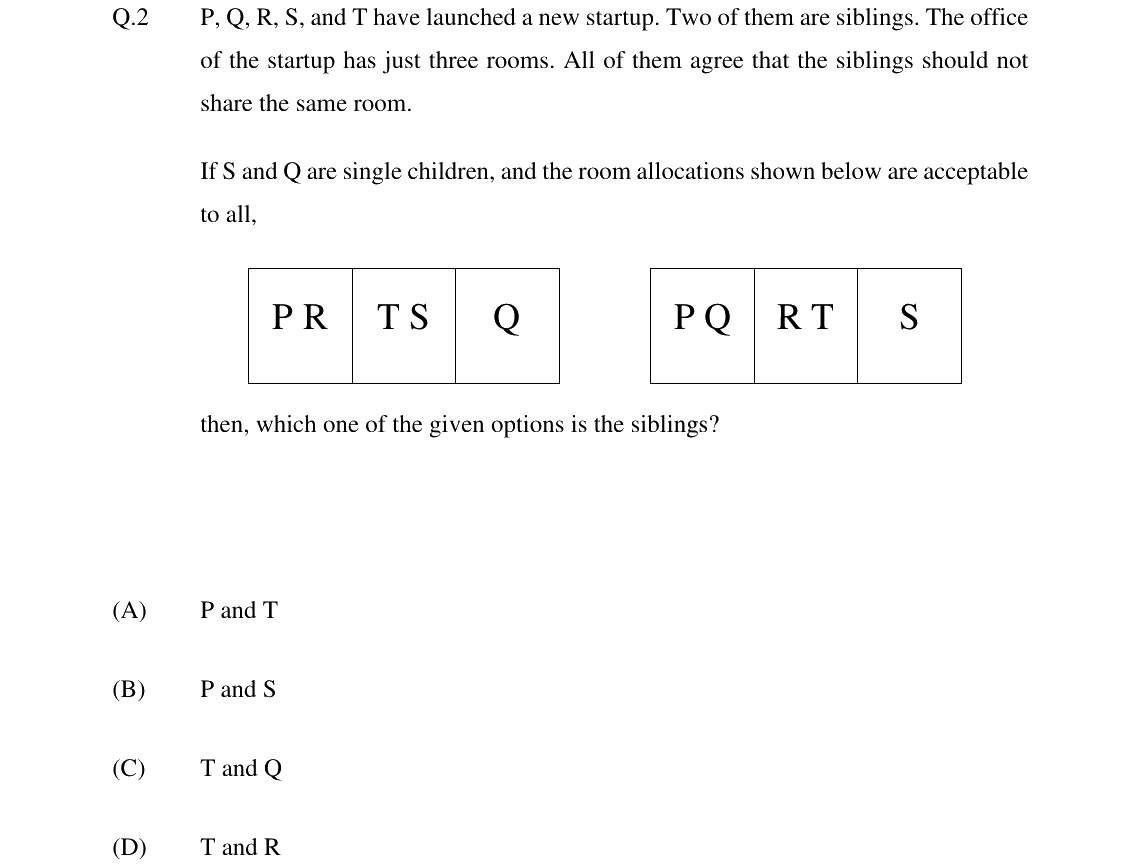

Q.2 · General Aptitude · 1 mark · MCQ
Show answer
Answer: A

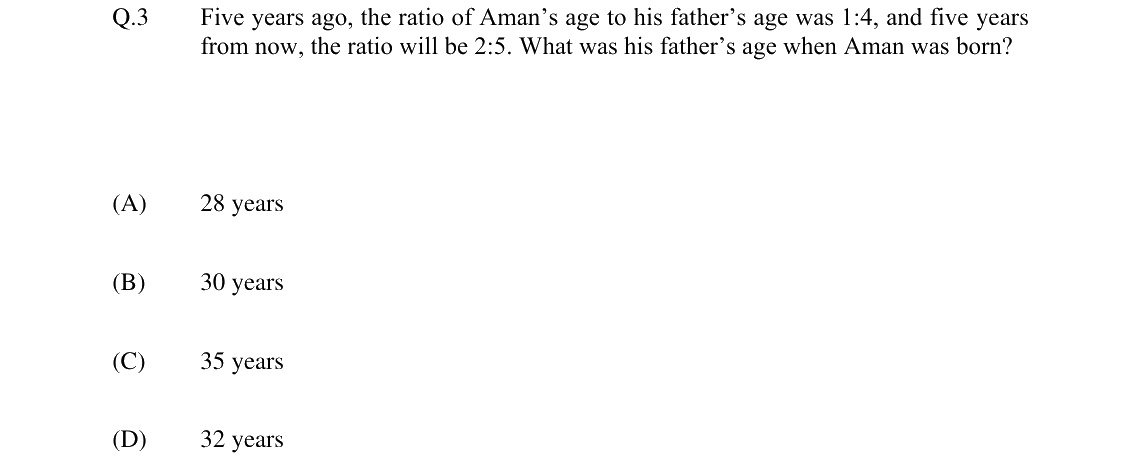

Q.3 · General Aptitude · 1 mark · MCQ
Show answer
Answer: B

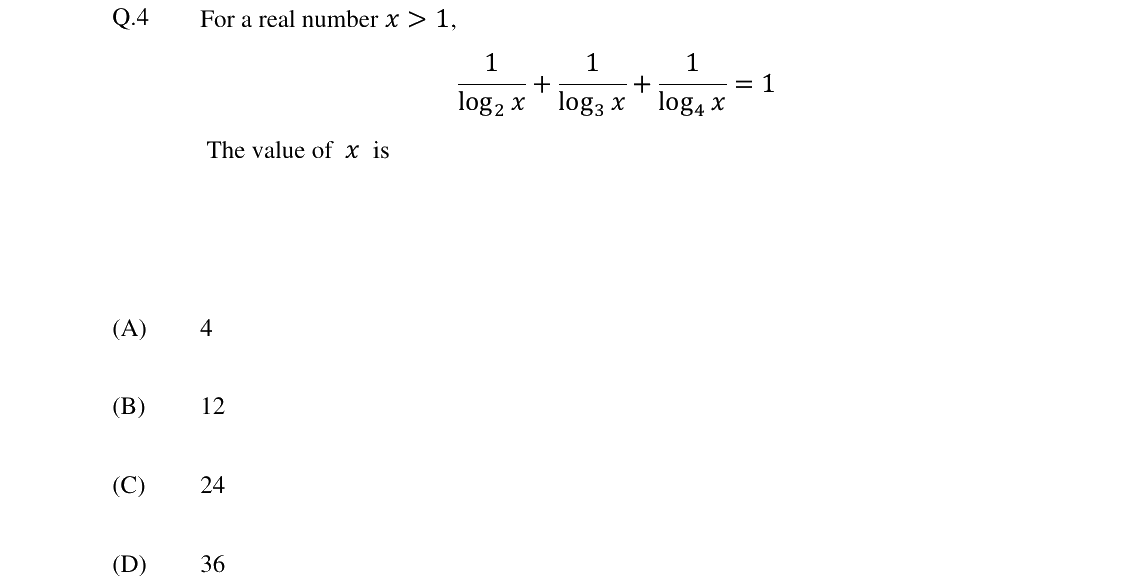

Q.4 · General Aptitude · 1 mark · MCQ
Show answer
Answer: C

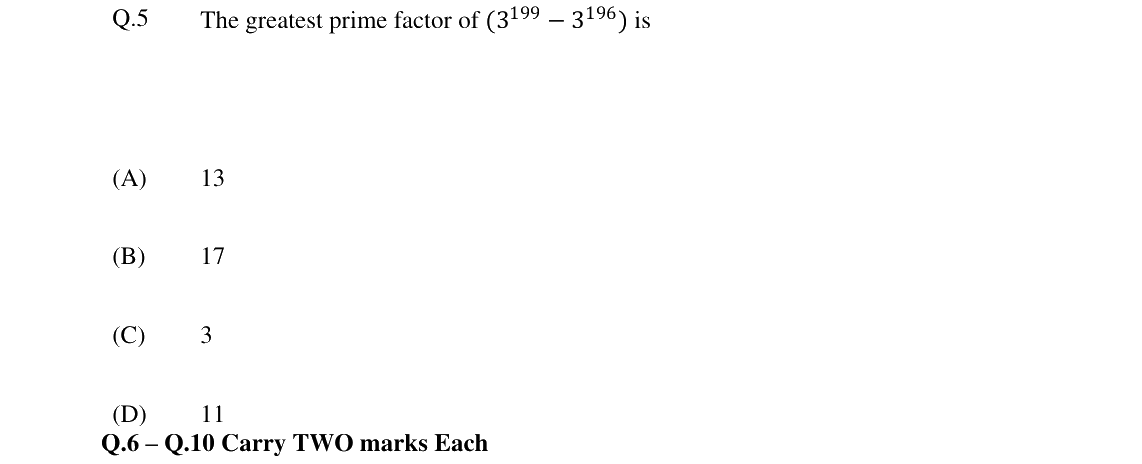

Q.5 · General Aptitude · 1 mark · MCQ
Show answer
Answer: A

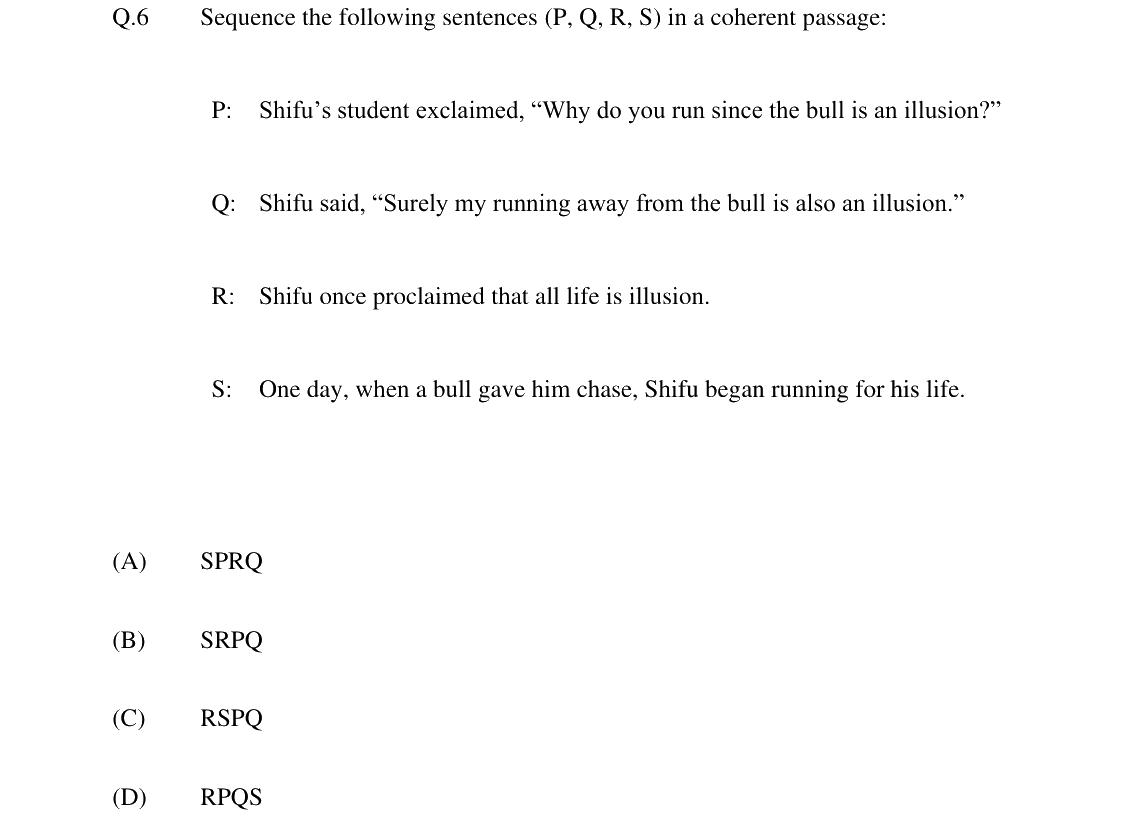

Q.6 · General Aptitude · 2 marks · MCQ
Show answer
Answer: C

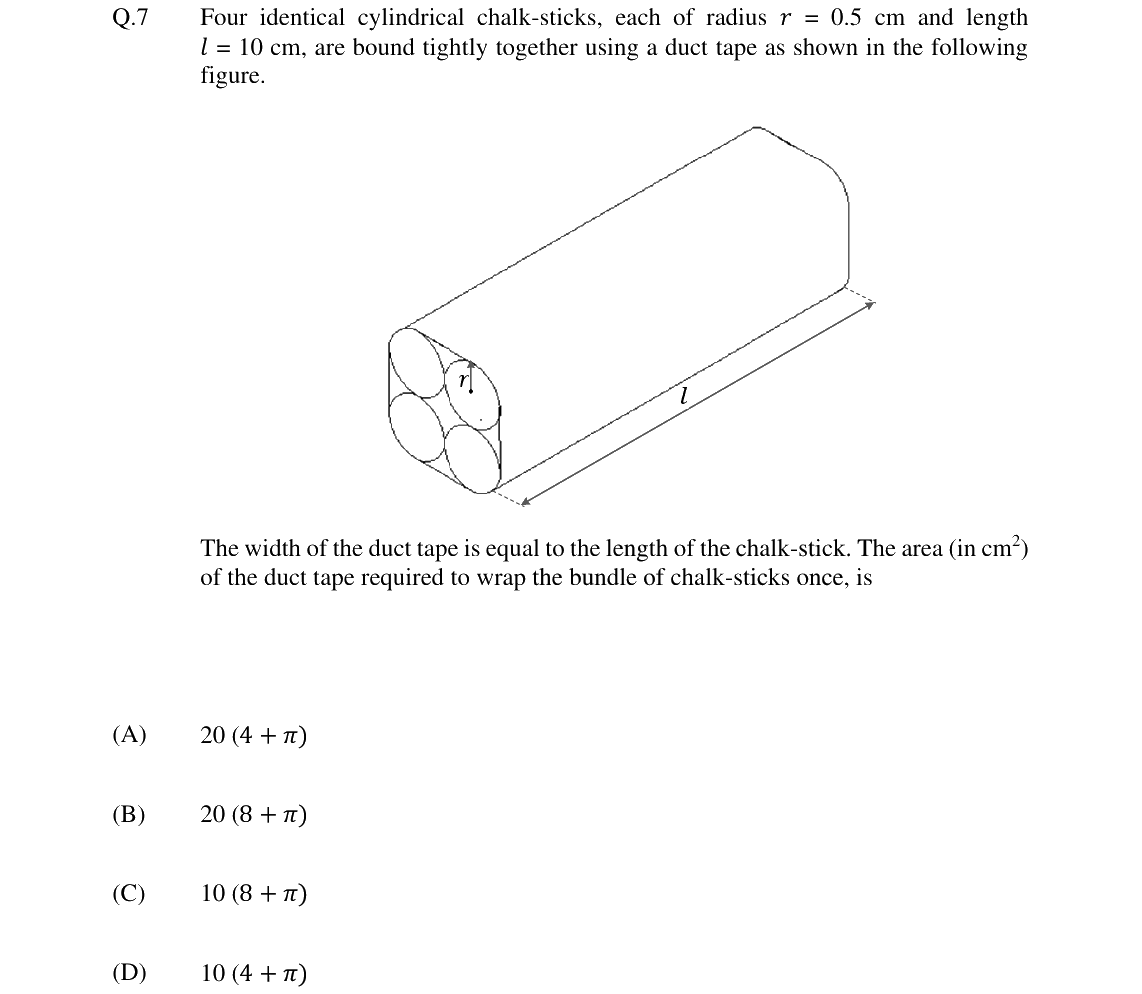

Q.7 · General Aptitude · 2 marks · MCQ
Show answer
Answer: D

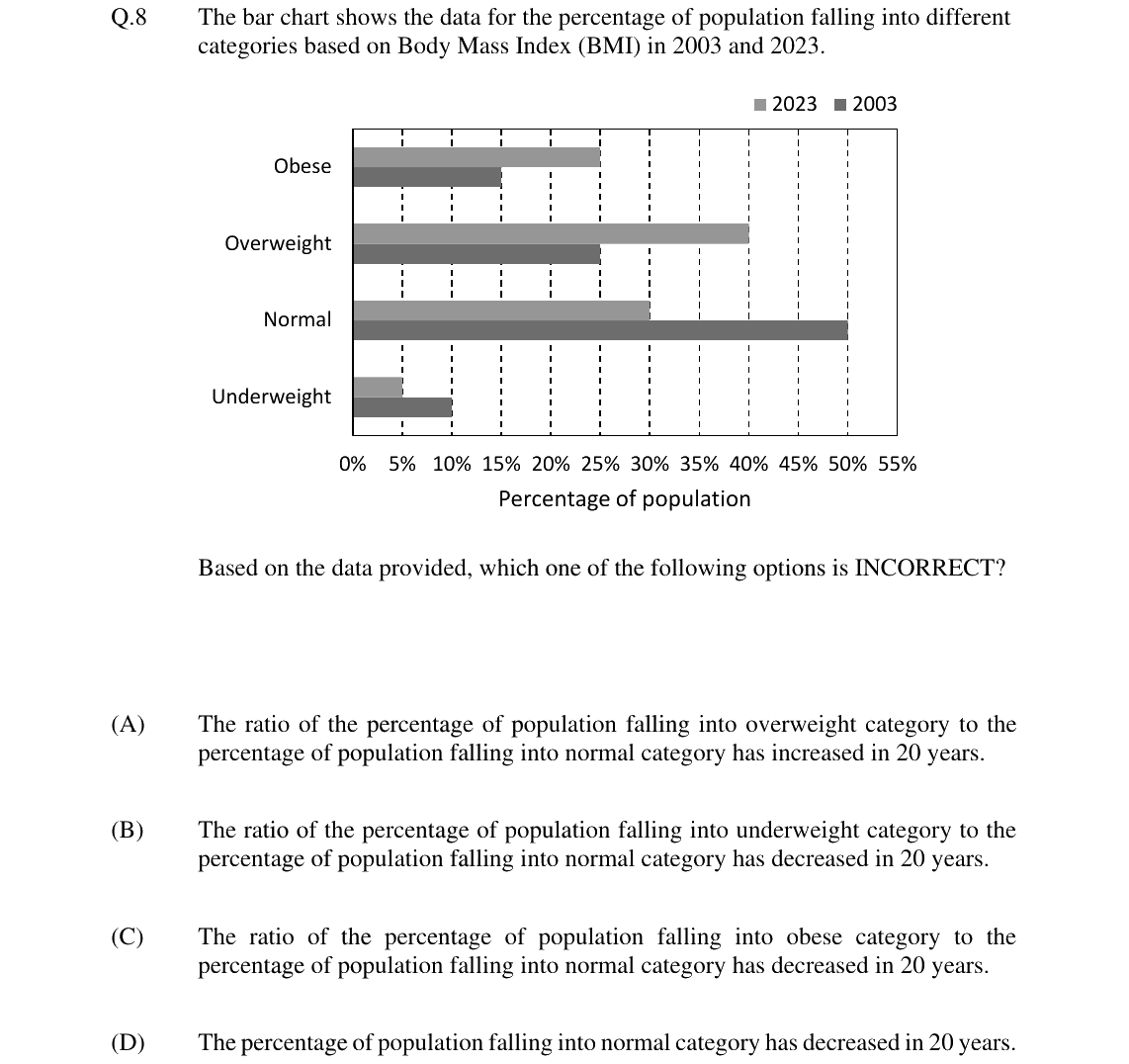

Q.8 · General Aptitude · 2 marks · MCQ
Show answer
Answer: C

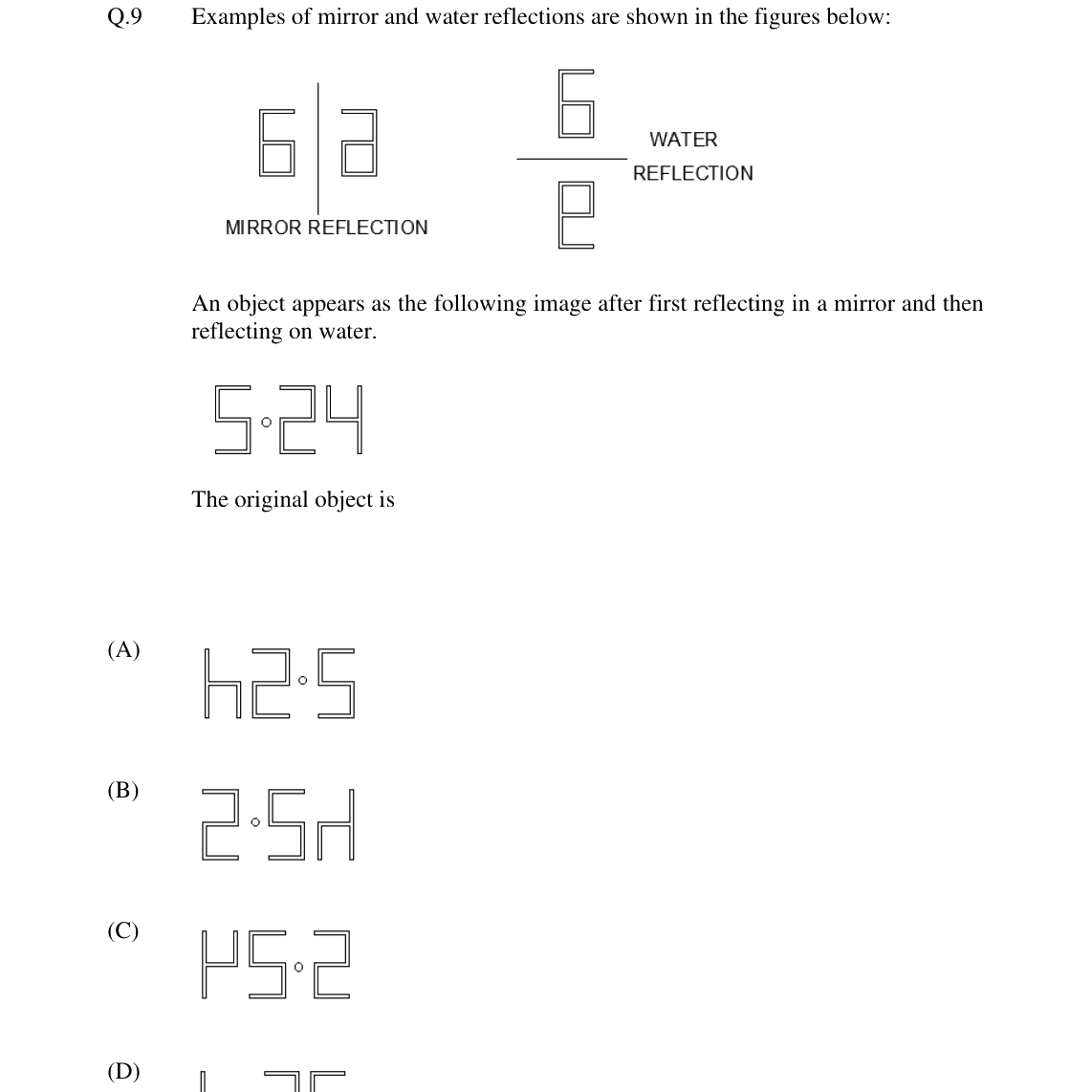

Q.9 · General Aptitude · 2 marks · MCQ
Show answer
Answer: A

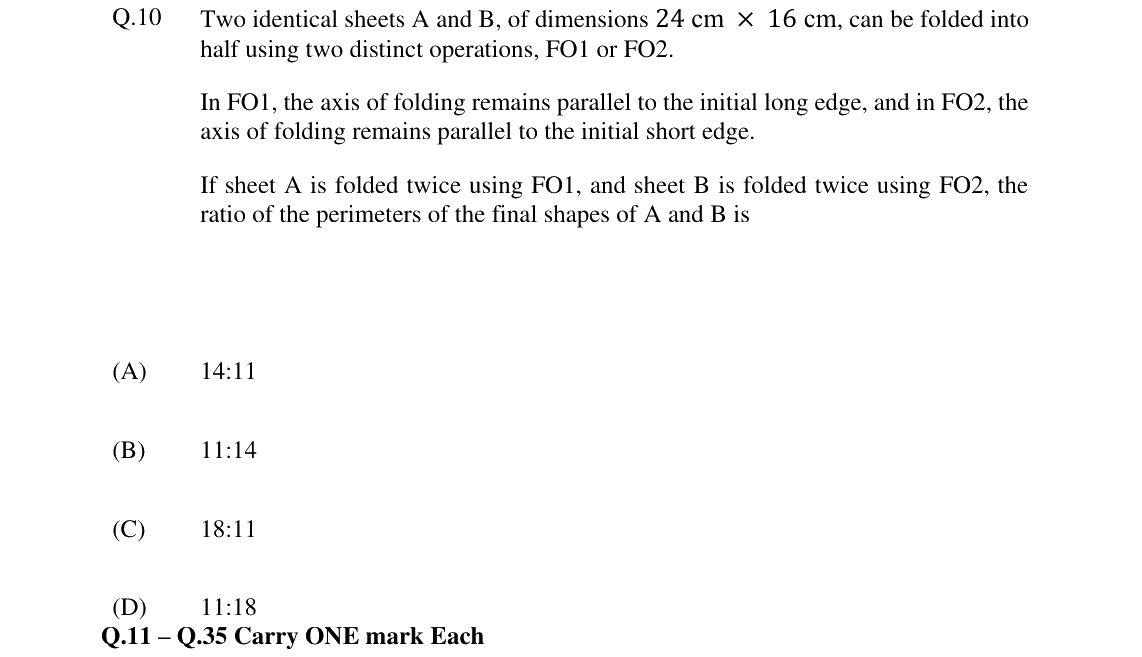

Q.10 · General Aptitude · 2 marks · MCQ
Show answer
Answer: A

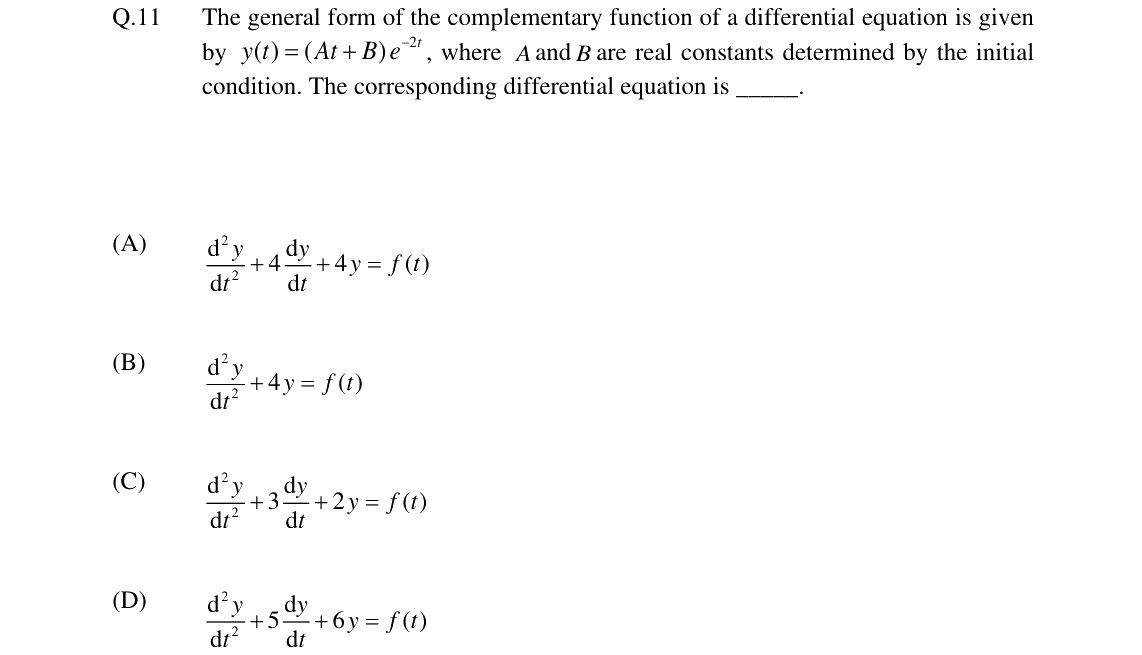

Q.11 · EC · 1 mark · MCQ
Show answer
Answer: A

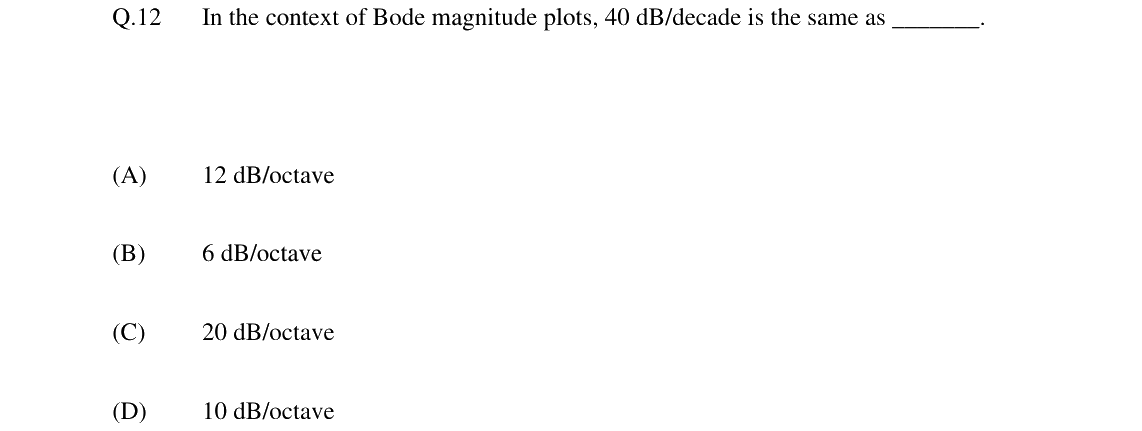

Q.12 · EC · 1 mark · MCQ
Show answer
Answer: A

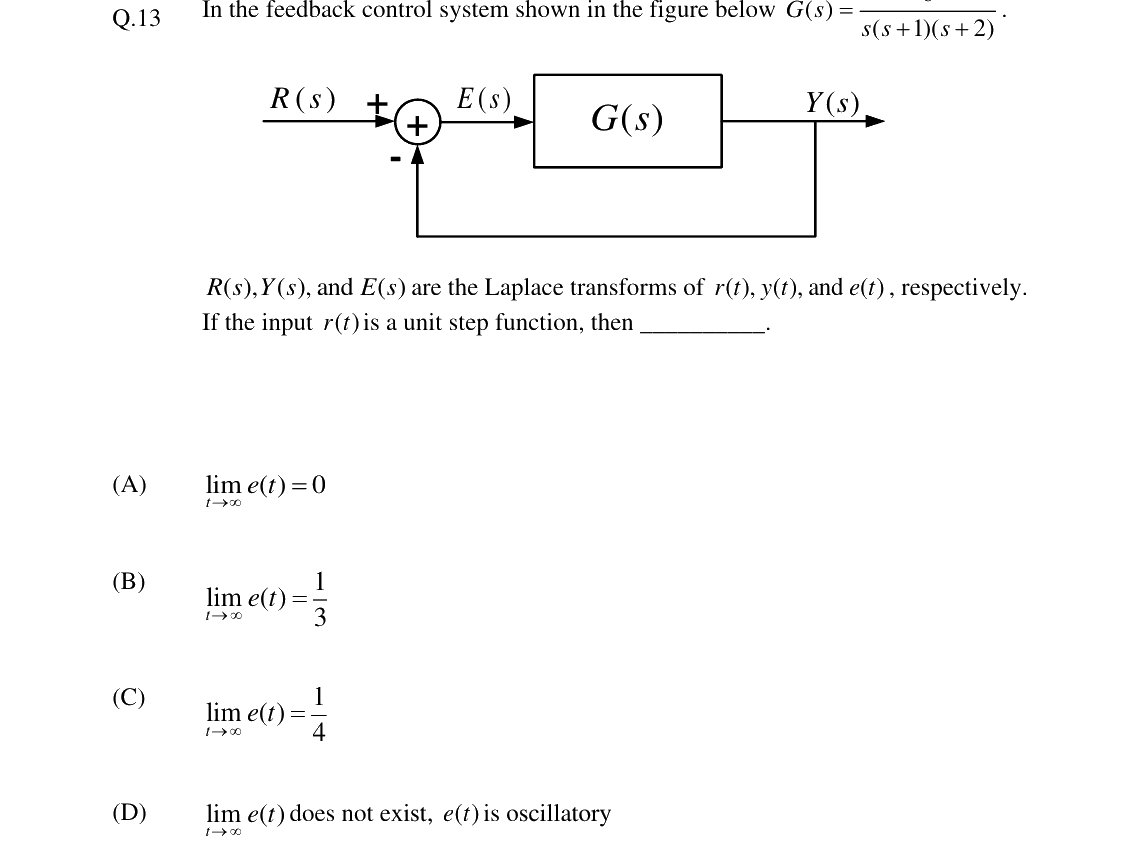

Q.13 · EC · 1 mark · MCQ
Show answer
Answer: D

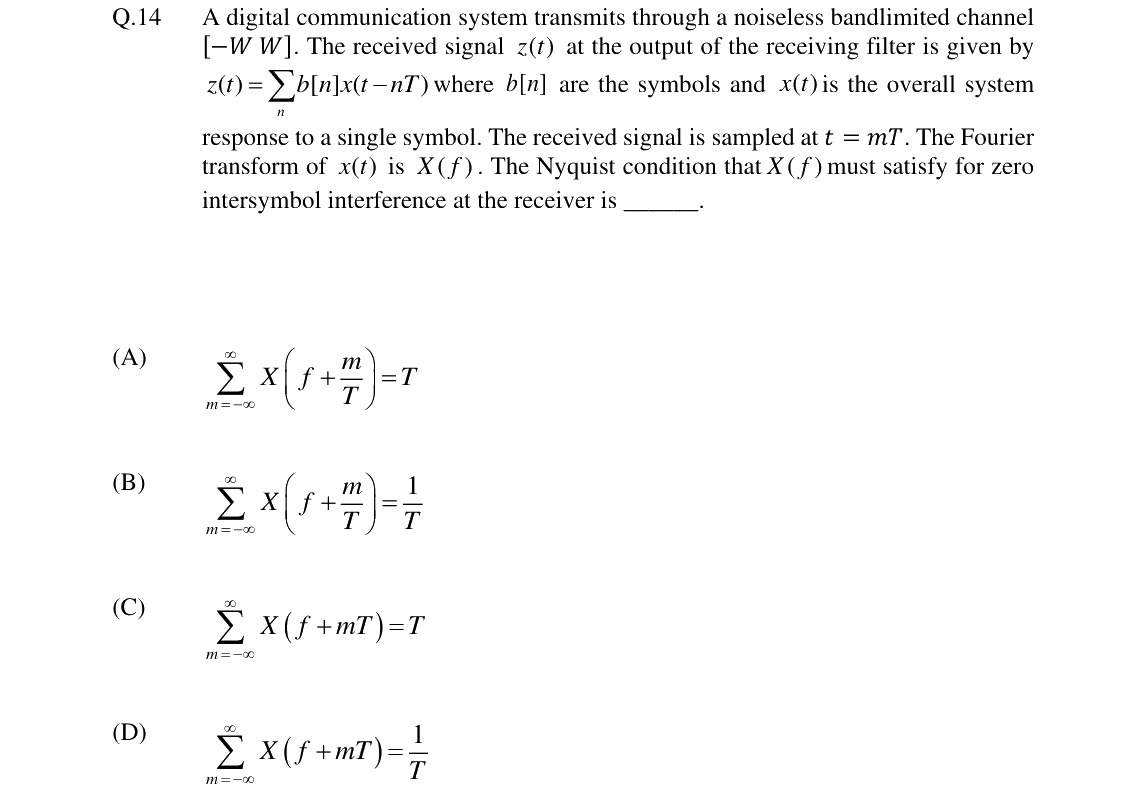

Q.14 · EC · 1 mark · MCQ
Show answer
Answer: Marks to all (question dropped)

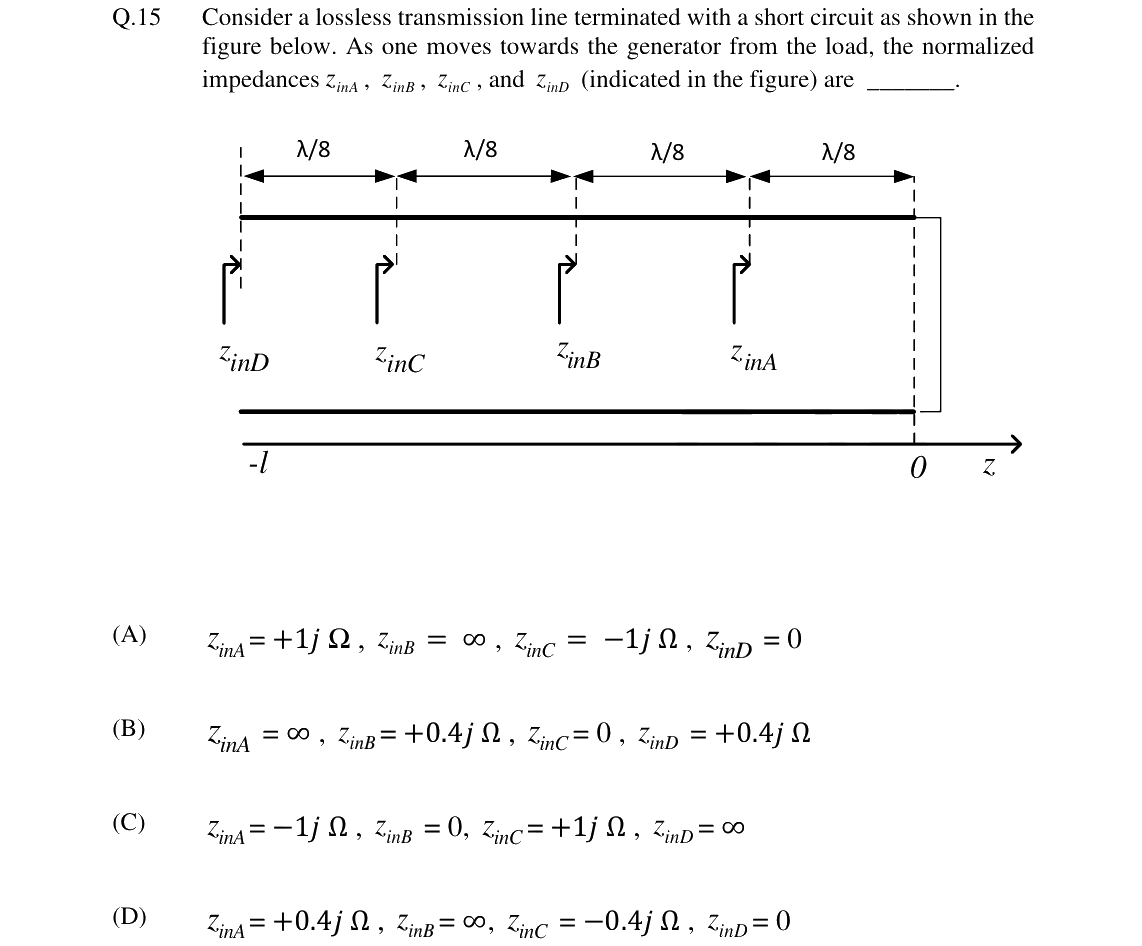

Q.15 · EC · 1 mark · MCQ
Show answer
Answer: A

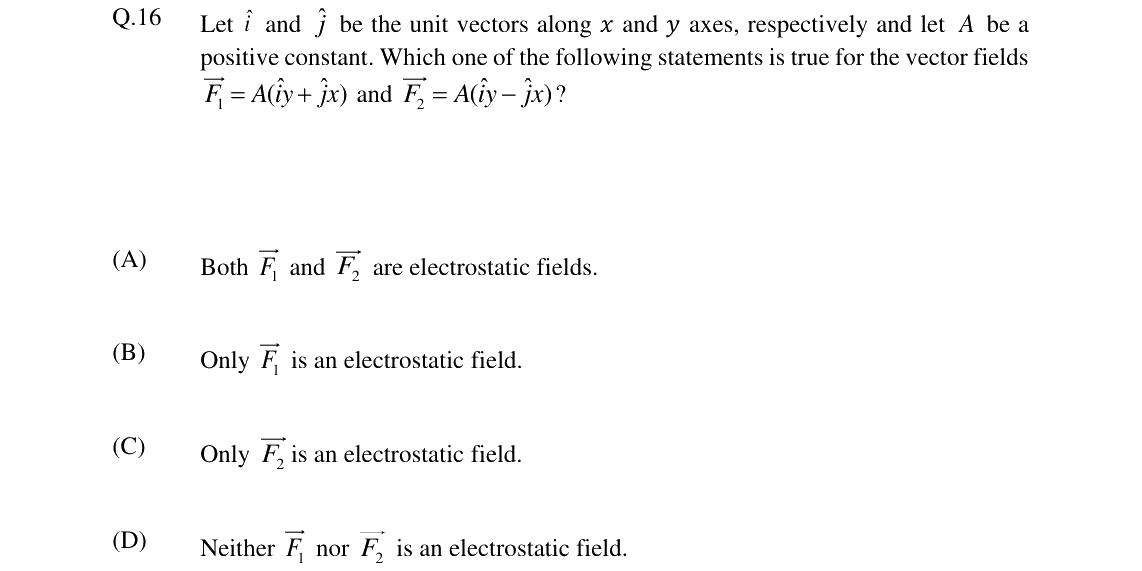

Q.16 · EC · 1 mark · MCQ
Show answer
Answer: B

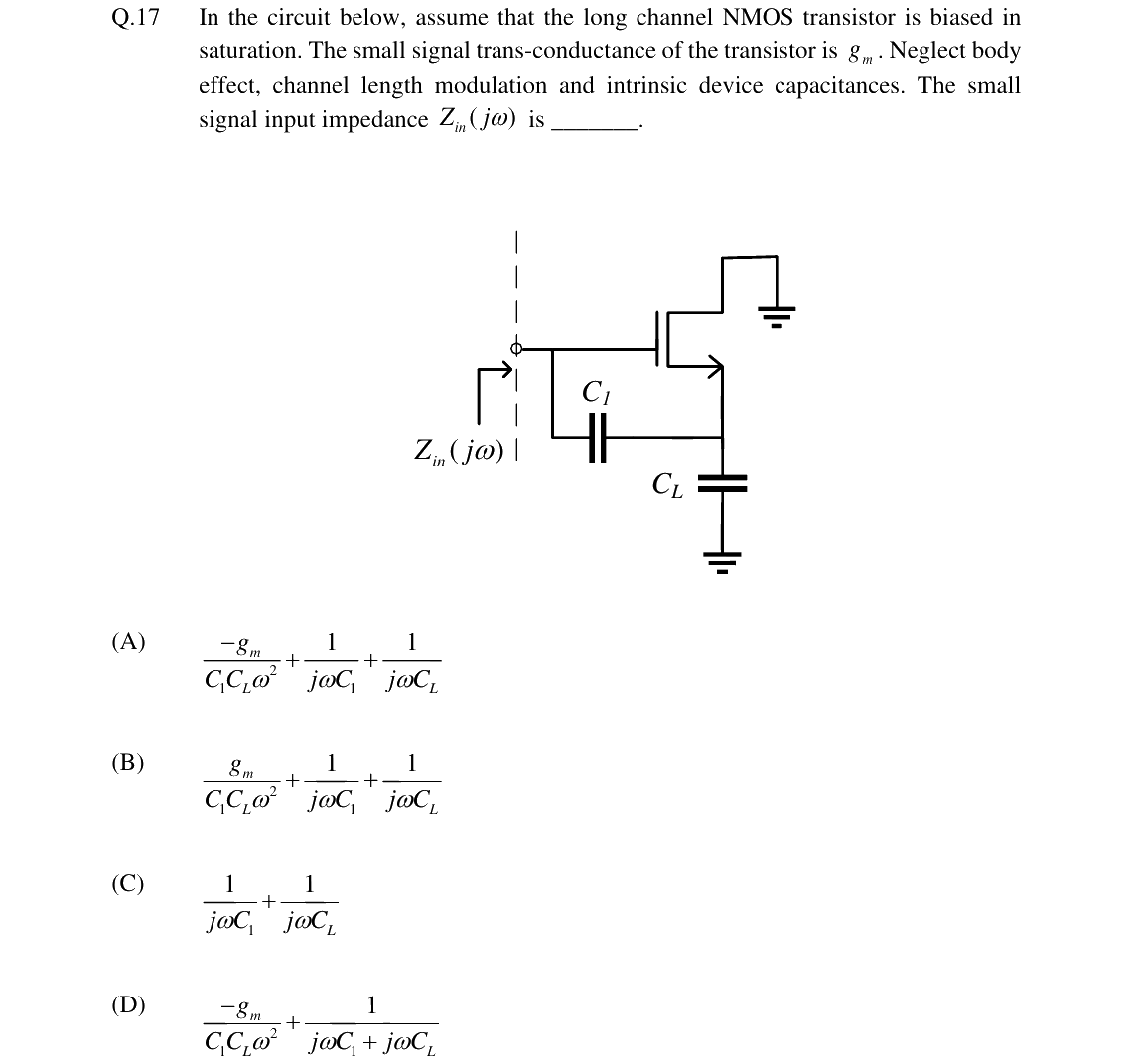

Q.17 · EC · 1 mark · MCQ
Show answer
Answer: A

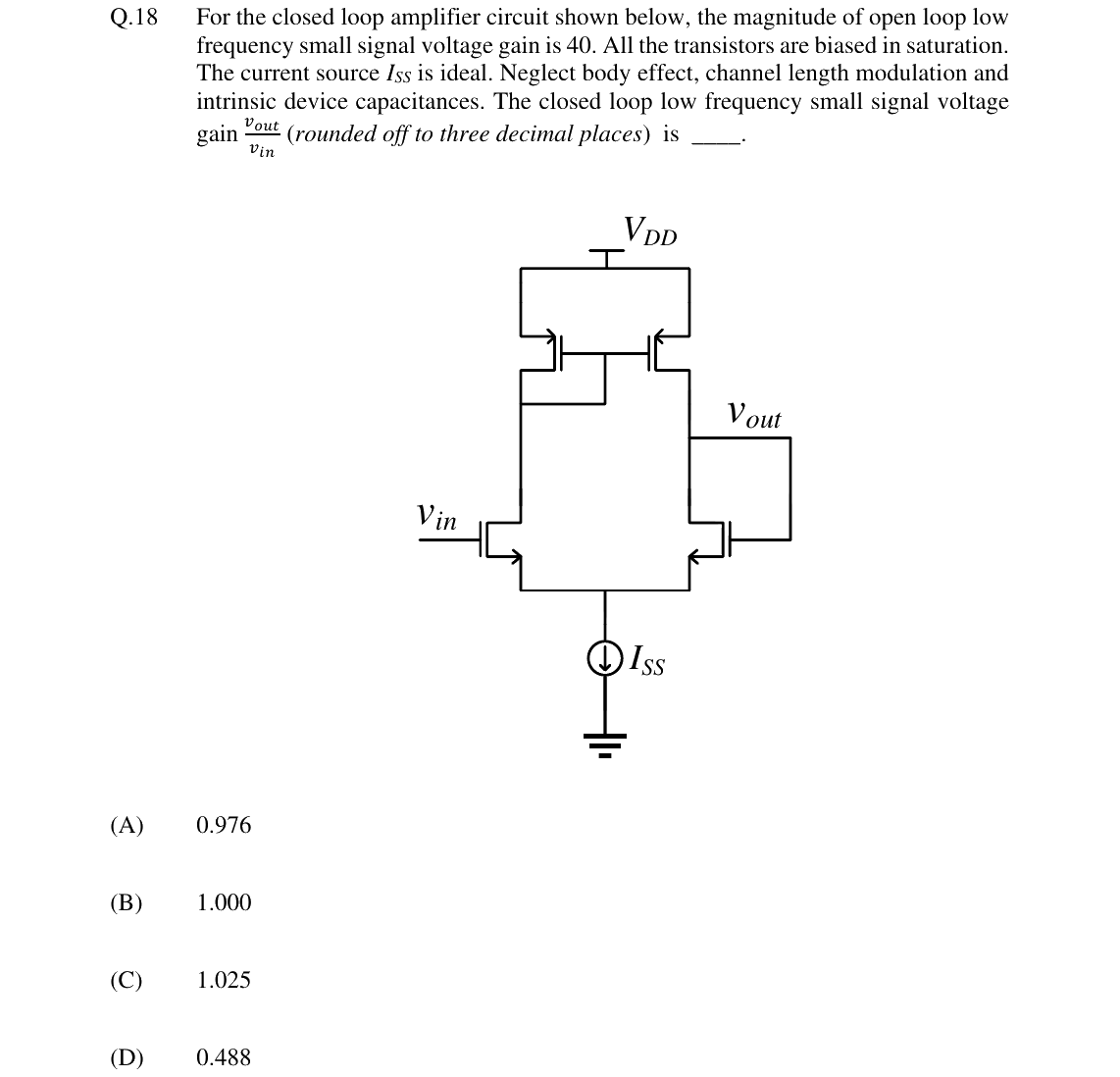

Q.18 · EC · 1 mark · MCQ
Show answer
Answer: A

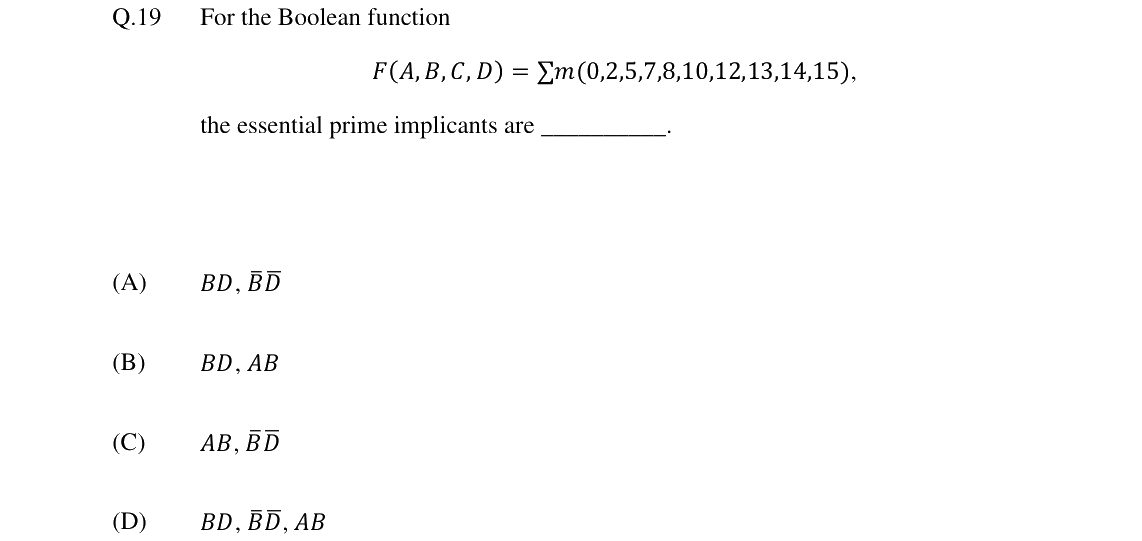

Q.19 · EC · 1 mark · MCQ
Show answer
Answer: A

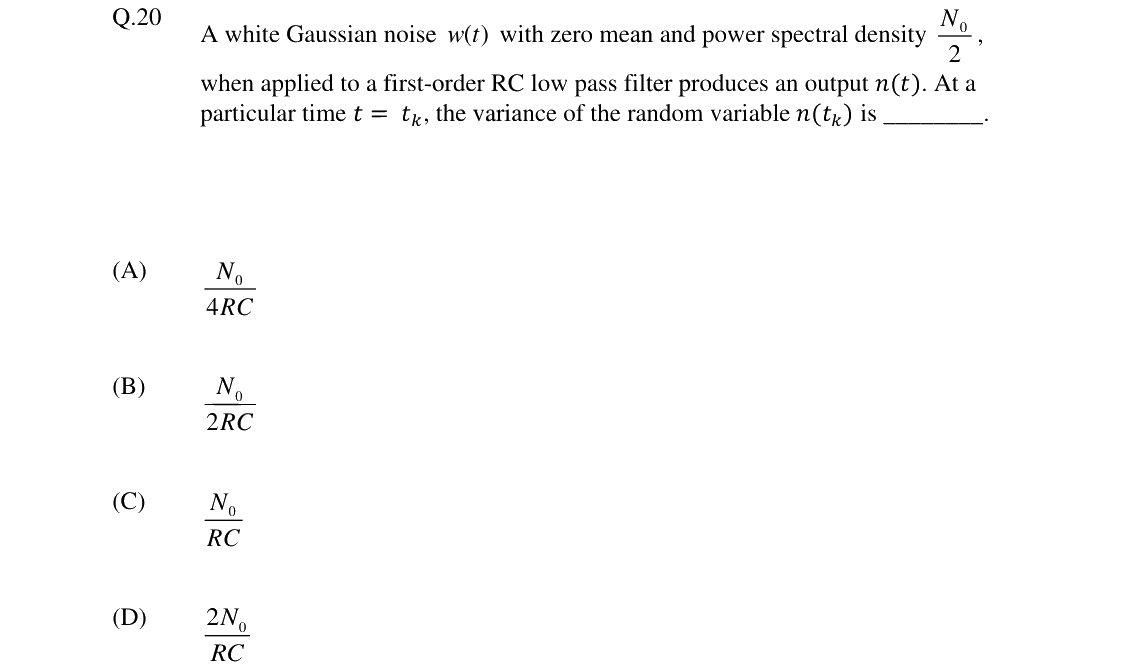

Q.20 · EC · 1 mark · MCQ
Show answer
Answer: A

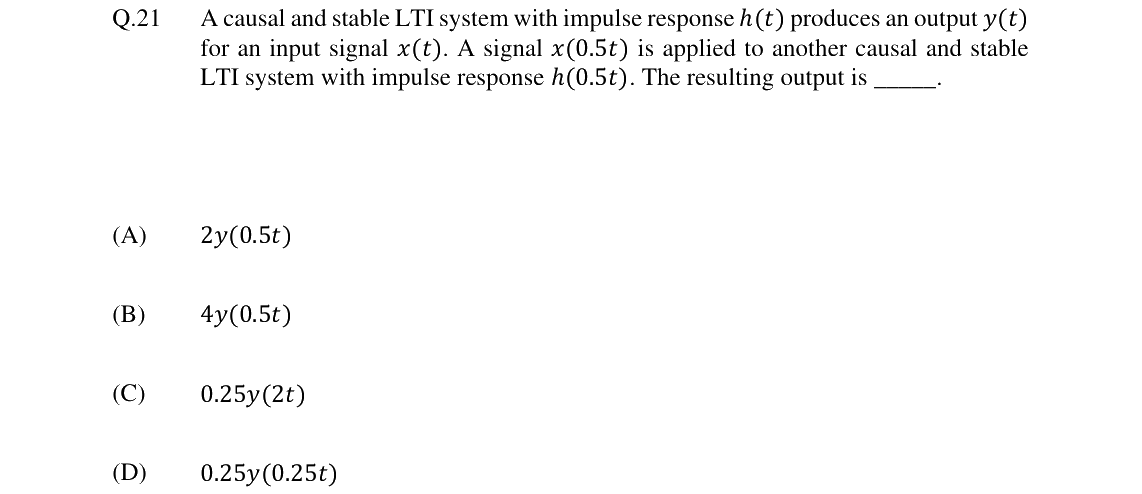

Q.21 · EC · 1 mark · MCQ
Show answer
Answer: A
Q.22 · EC · 1 mark · MCQ
Show answer
Answer: A

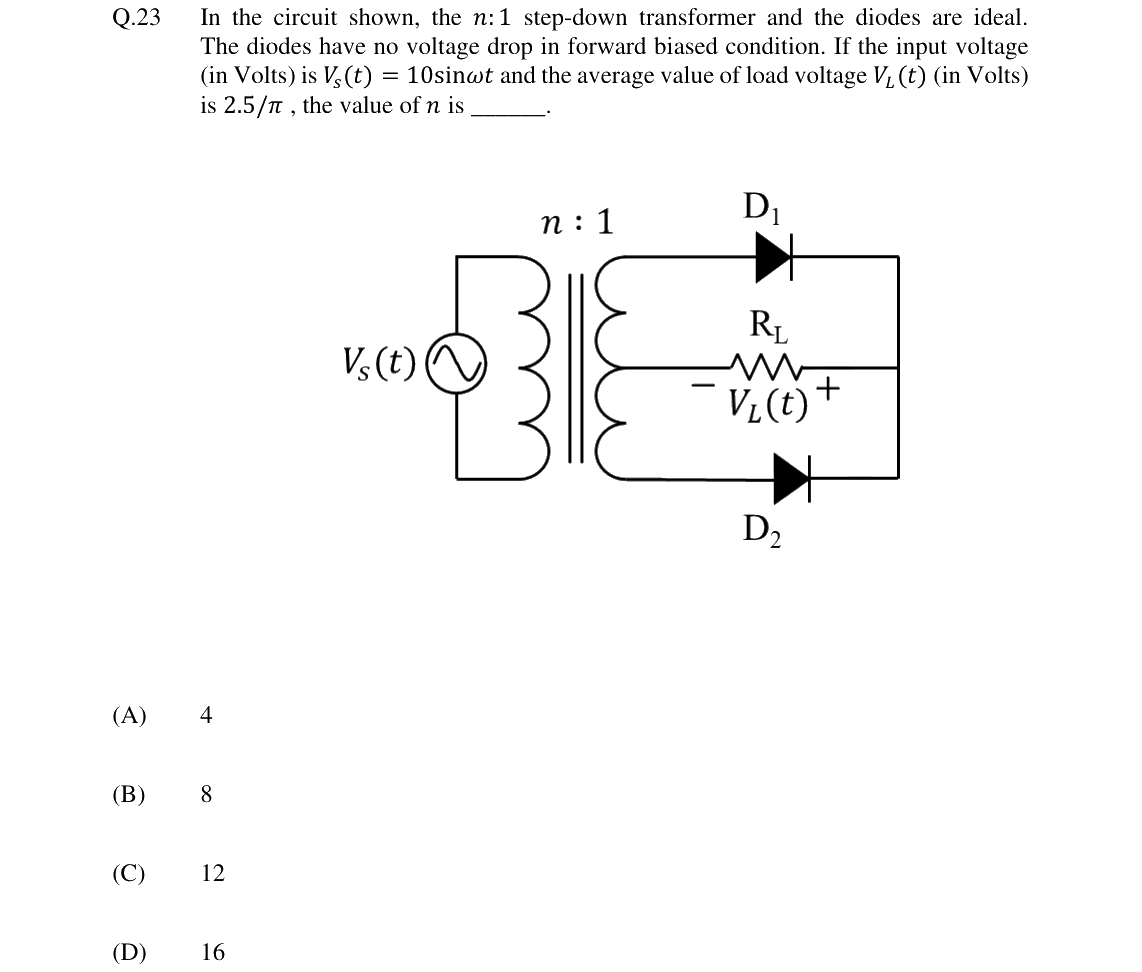

Q.23 · EC · 1 mark · MCQ
Show answer
Answer: A

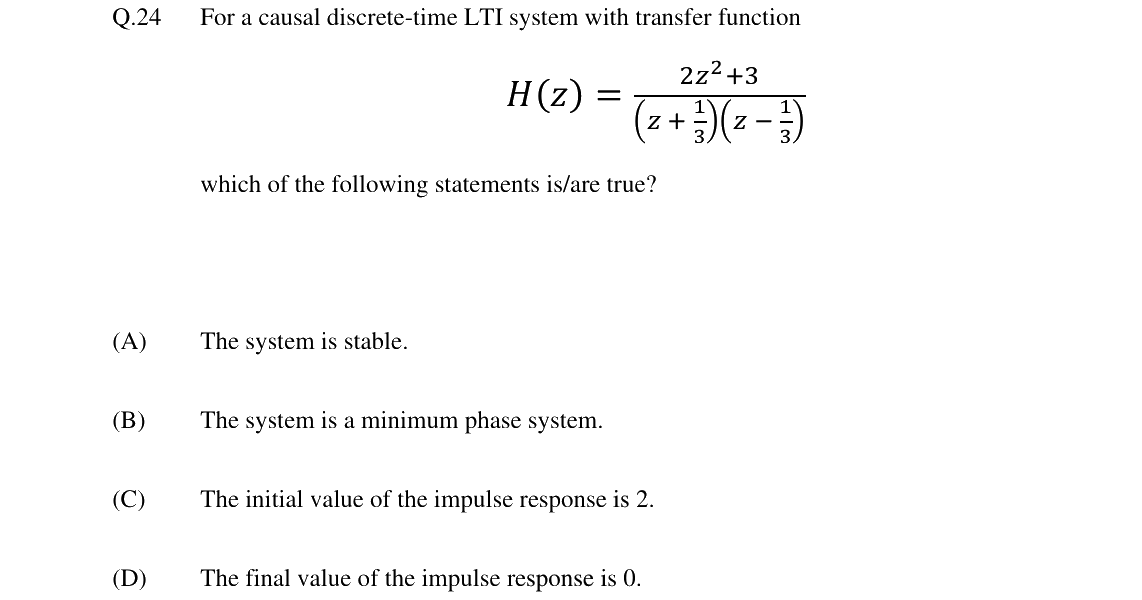

Q.24 · EC · 1 mark · MSQ
Show answer
Answer: A, C, D

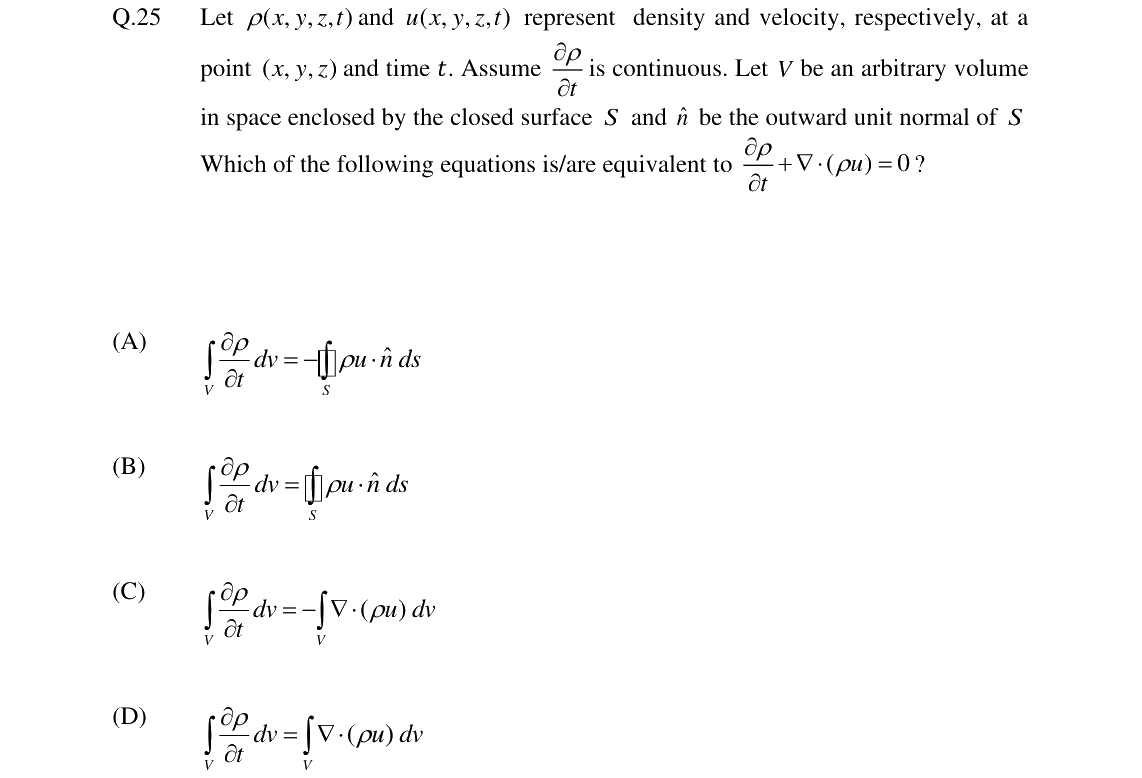

Q.25 · EC · 1 mark · MSQ
Show answer
Answer: A, C

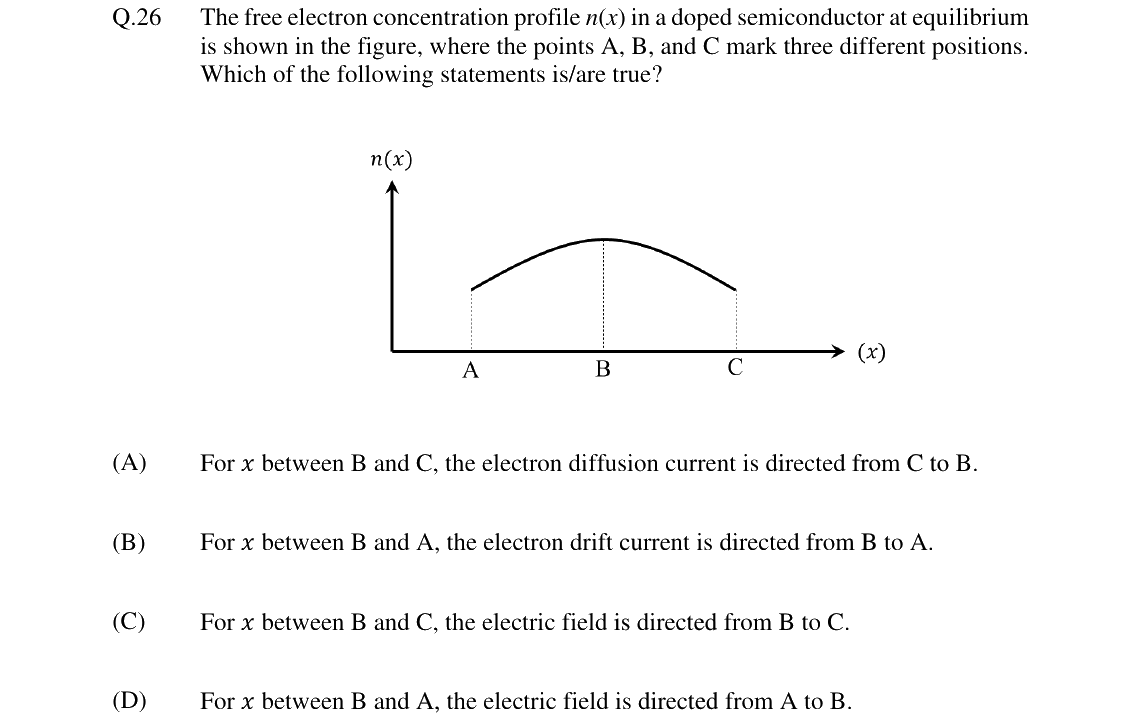

Q.26 · EC · 1 mark · MSQ
Show answer
Answer: A, B, C

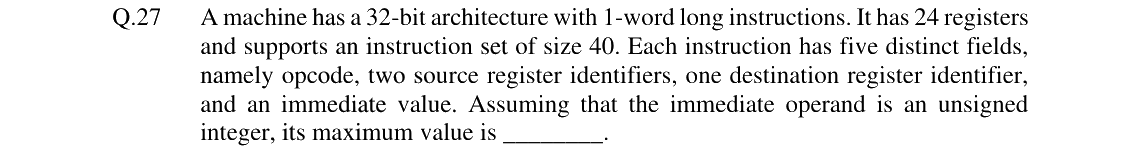

Q.27 · EC · 1 mark · NAT
Show answer
Answer: 2047

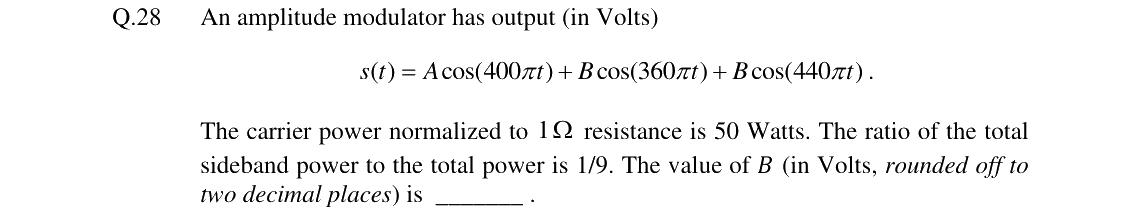

Q.28 · EC · 1 mark · NAT
Show answer
Answer: 2.49 to 2.51
Q.29 · EC · 1 mark · NAT
Show answer
Answer: 11

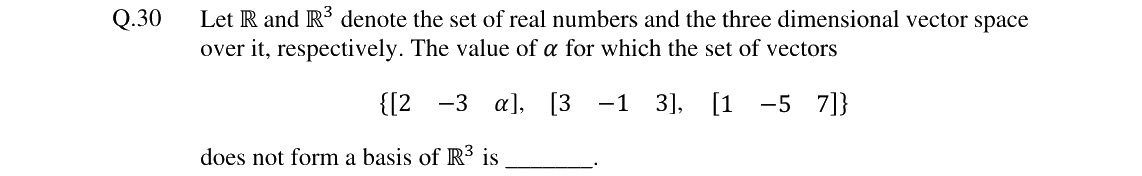

Q.30 · EC · 1 mark · NAT
Show answer
Answer: 5

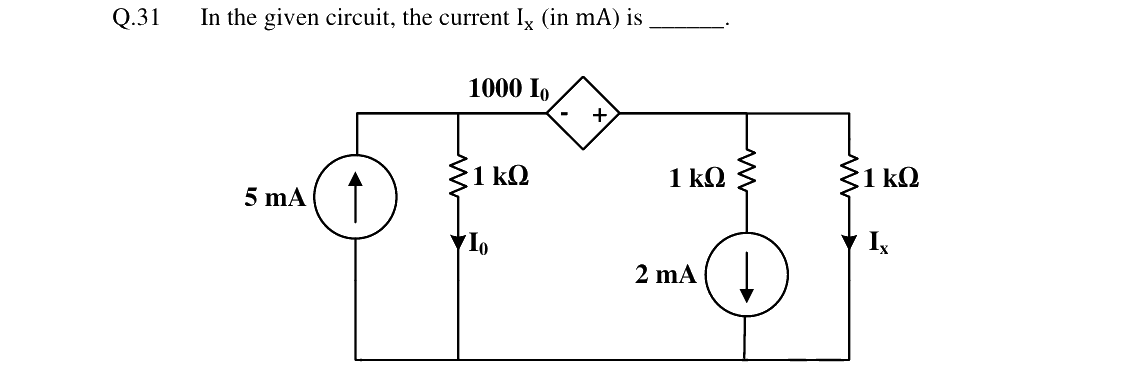

Q.31 · EC · 1 mark · NAT
Show answer
Answer: 2
Q.32 · EC · 1 mark · NAT
Show answer
Answer: 0.75
Q.33 · EC · 1 mark · NAT
Show answer
Answer: 0.5
Q.34 · EC · 1 mark · NAT
Show answer
Answer: 4

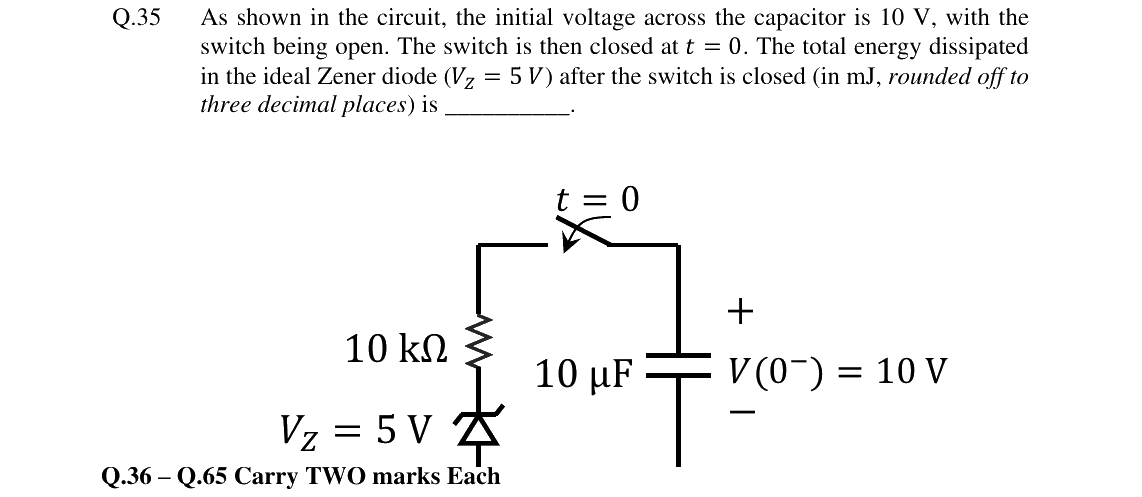

Q.35 · EC · 1 mark · NAT
Show answer
Answer: 0.25

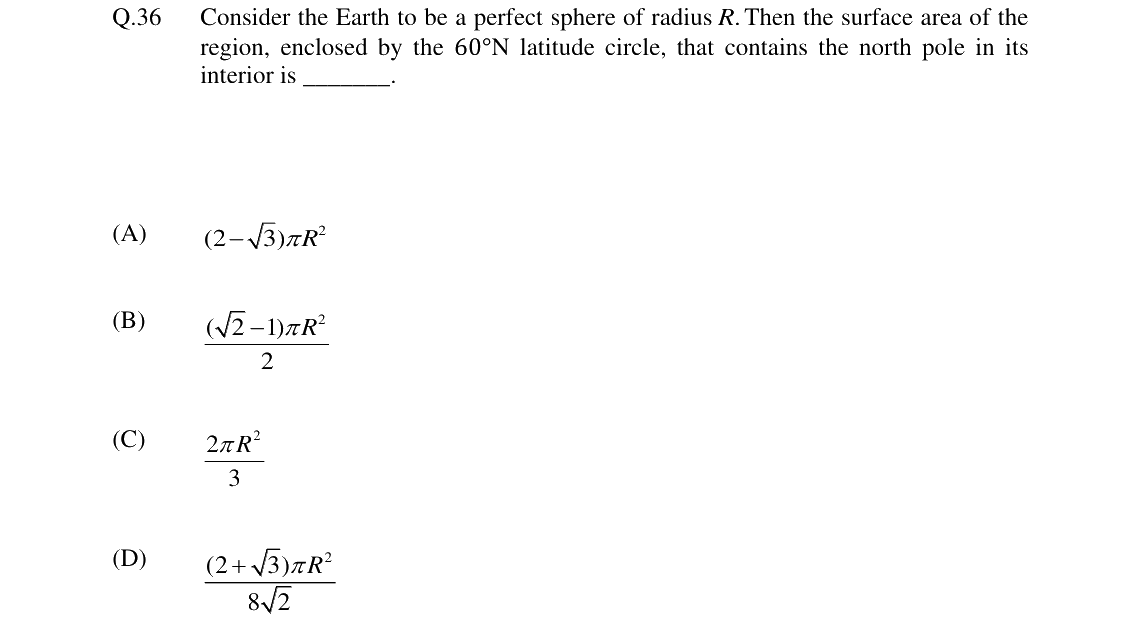

Q.36 · EC · 2 marks · MCQ
Show answer
Answer: A

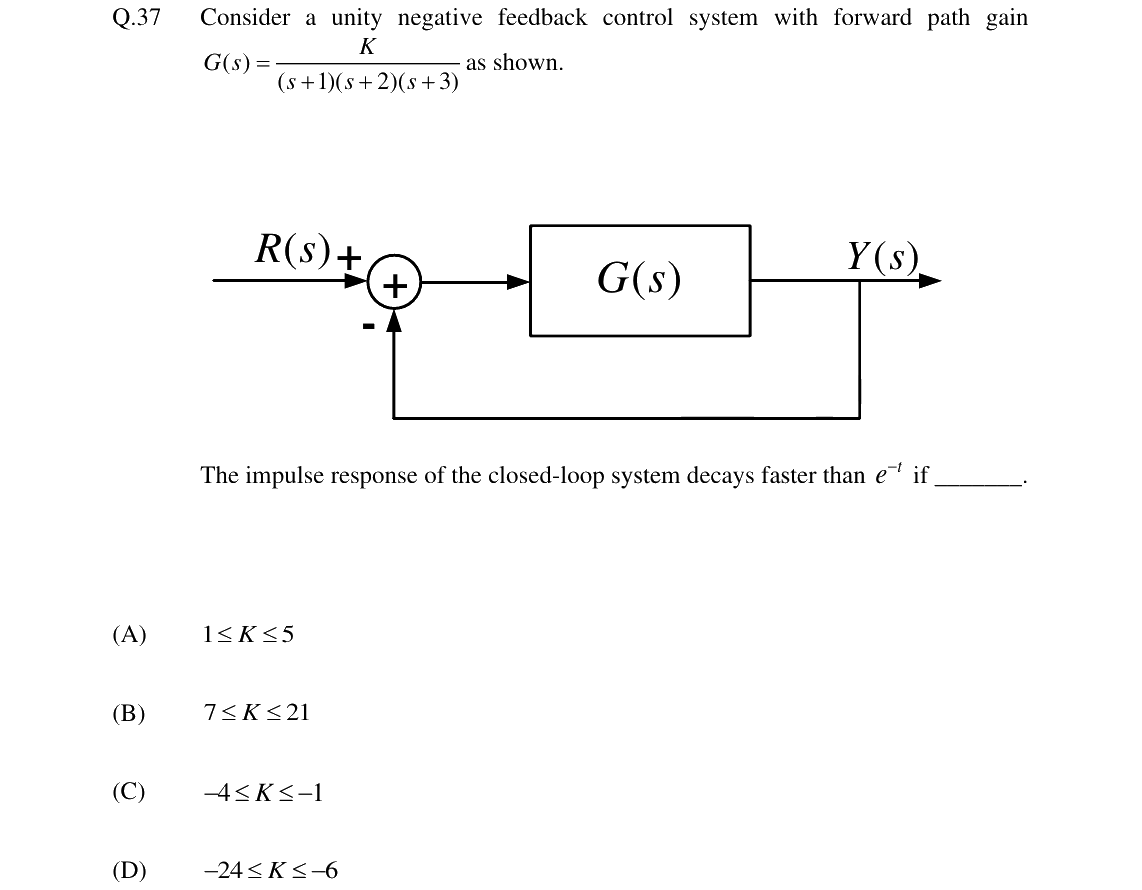

Q.37 · EC · 2 marks · MCQ
Show answer
Answer: A

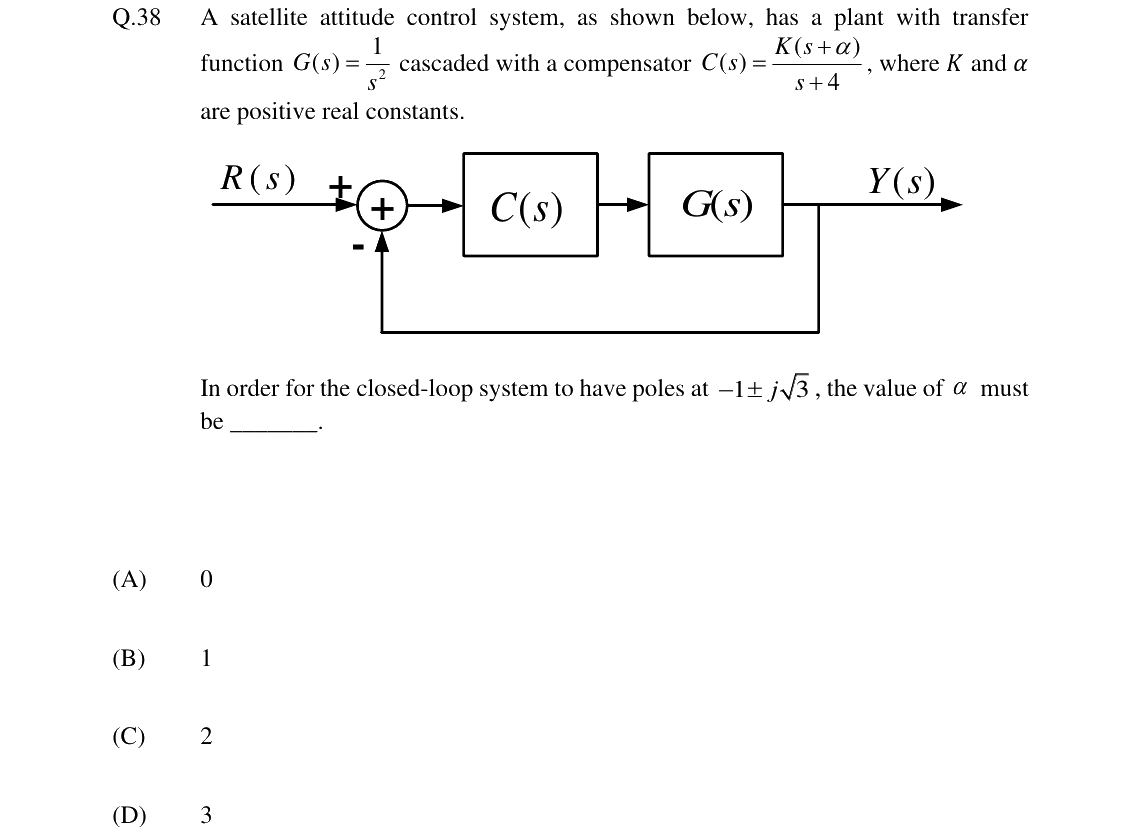

Q.38 · EC · 2 marks · MCQ
Show answer
Answer: B
Q.39 · EC · 2 marks · MCQ
Show answer
Answer: A

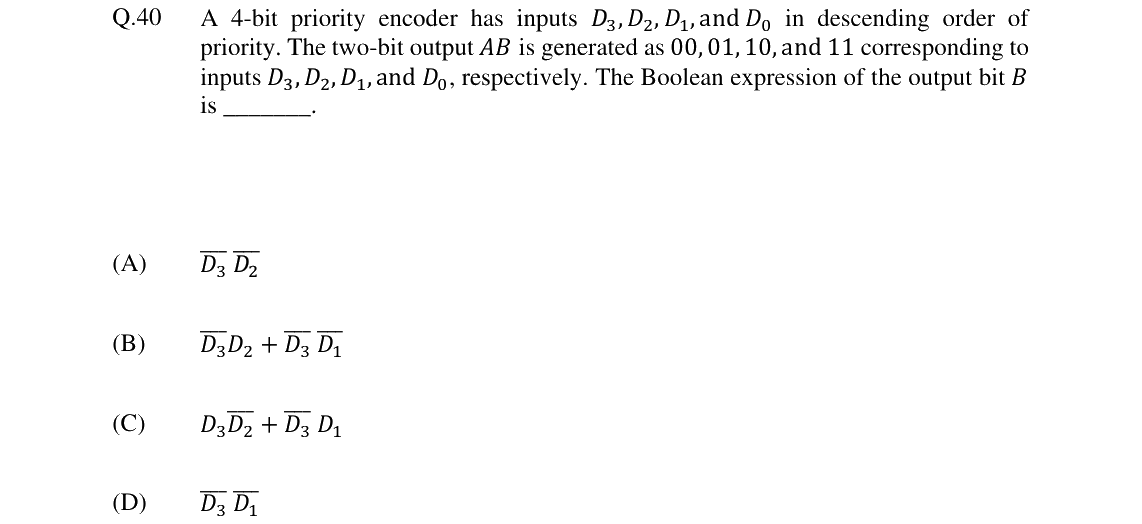

Q.40 · EC · 2 marks · MCQ
Show answer
Answer: B

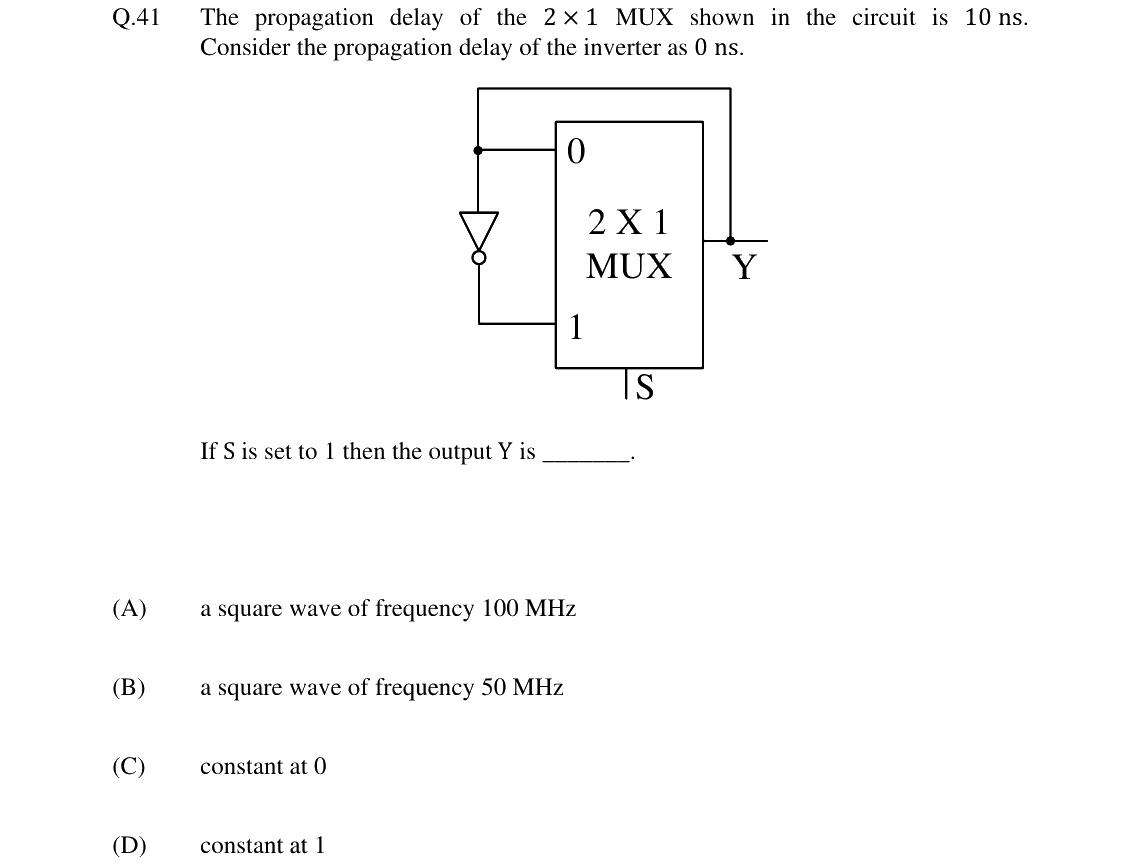

Q.41 · EC · 2 marks · MCQ
Show answer
Answer: B

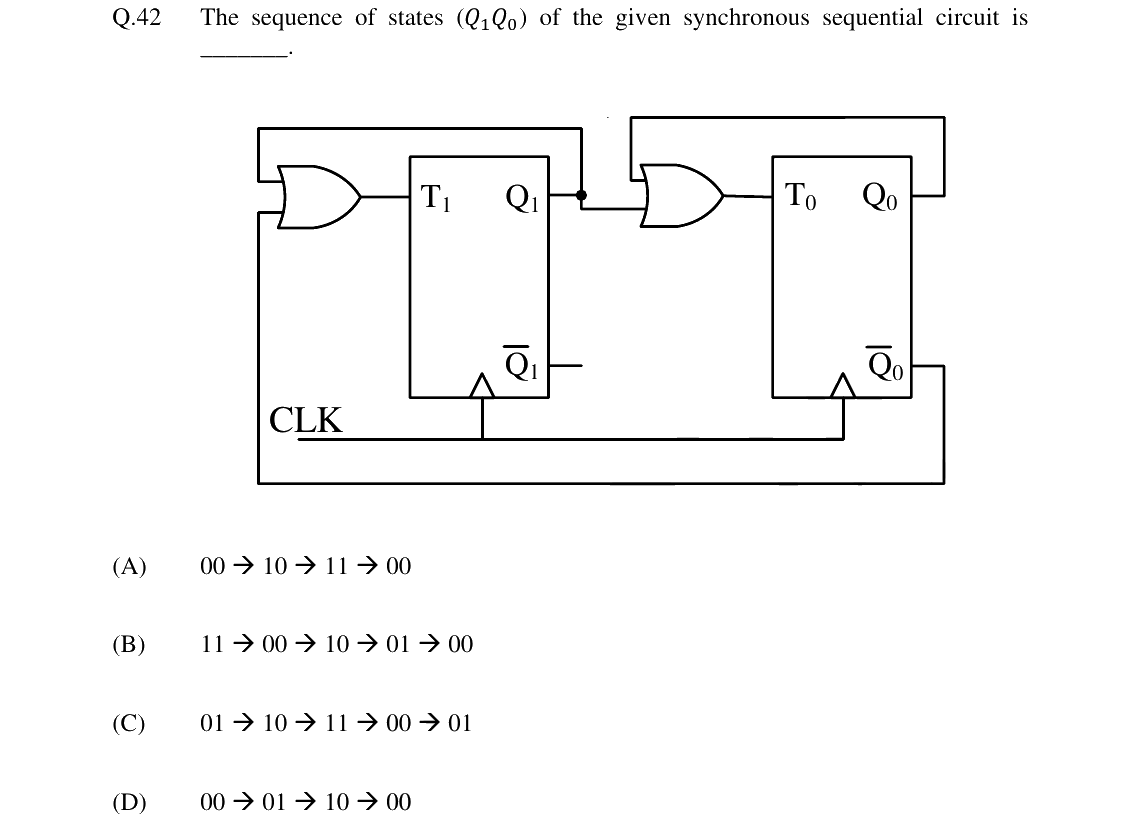

Q.42 · EC · 2 marks · MCQ
Show answer
Answer: B

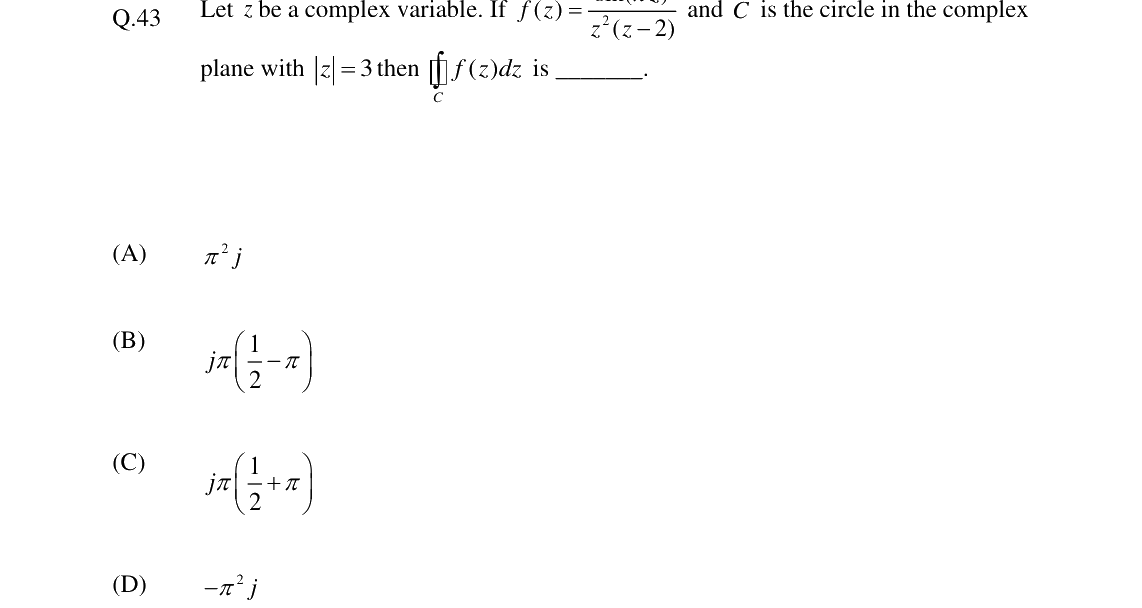

Q.43 · EC · 2 marks · MCQ
Show answer
Answer: D

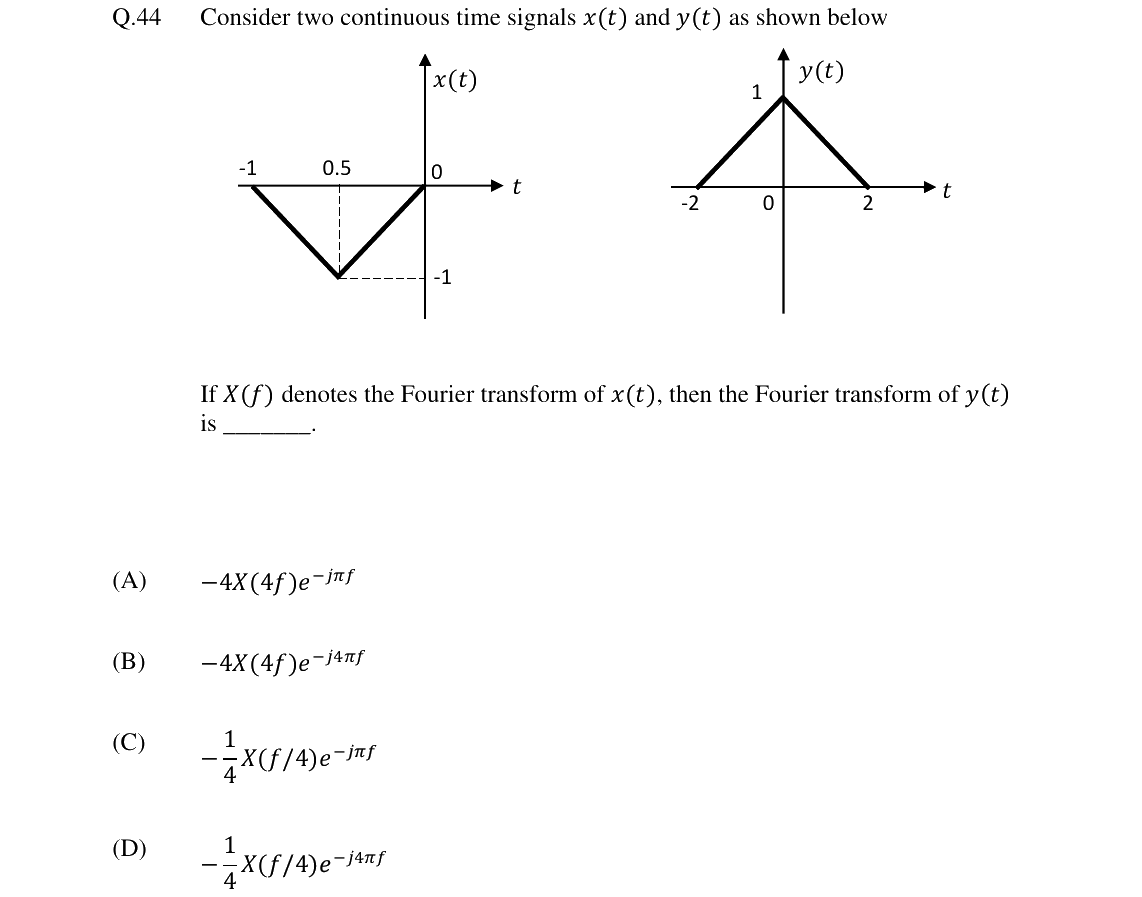

Q.44 · EC · 2 marks · MCQ
Show answer
Answer: Marks to all (question dropped)

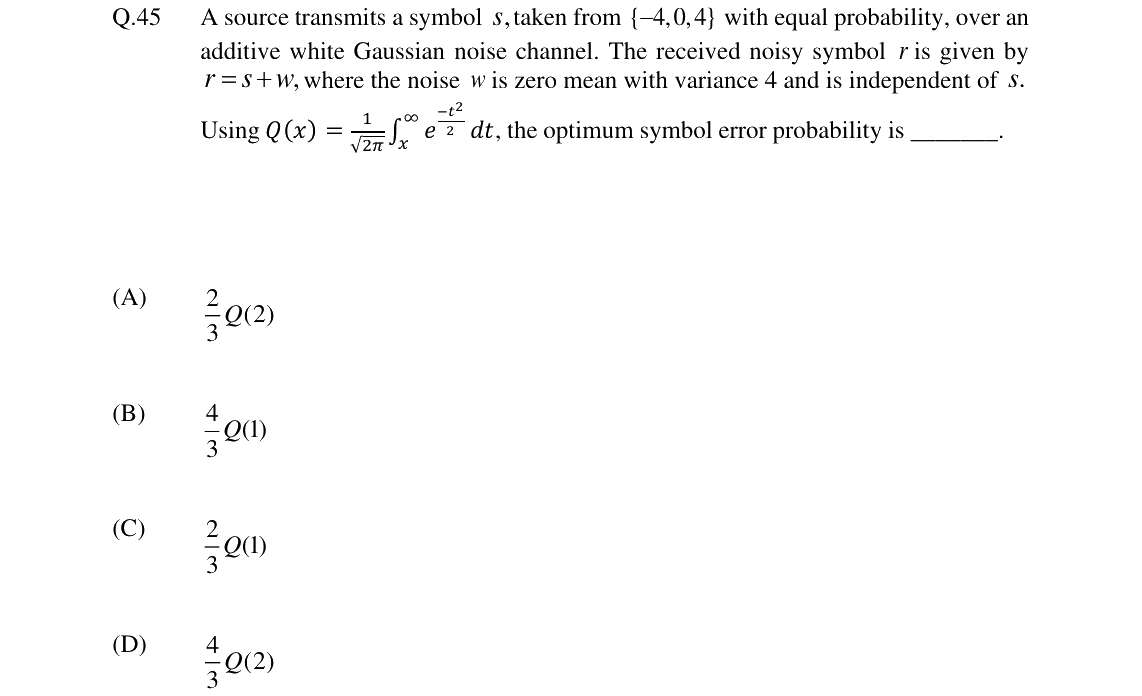

Q.45 · EC · 2 marks · MCQ
Show answer
Answer: B

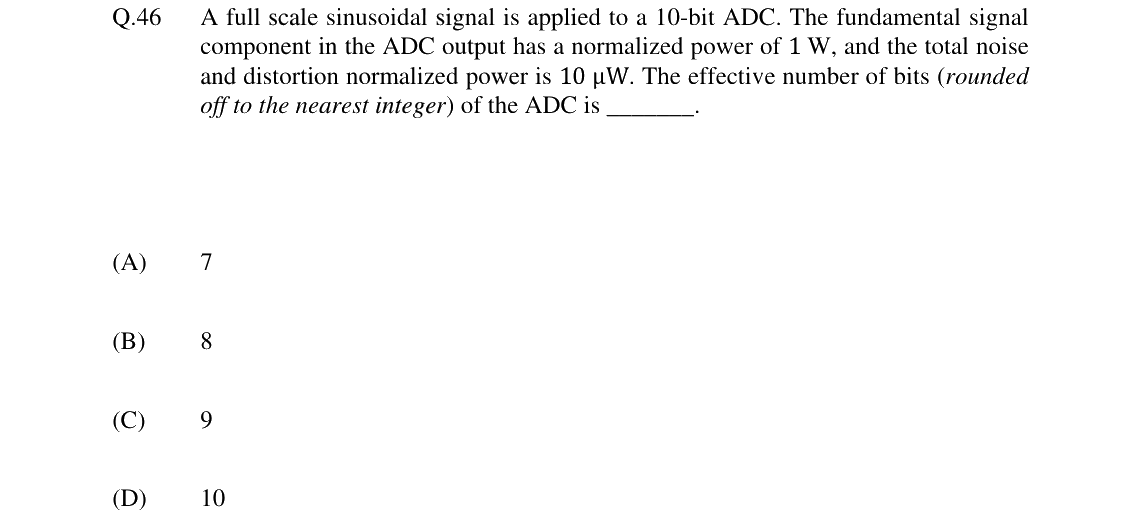

Q.46 · EC · 2 marks · MCQ
Show answer
Answer: B

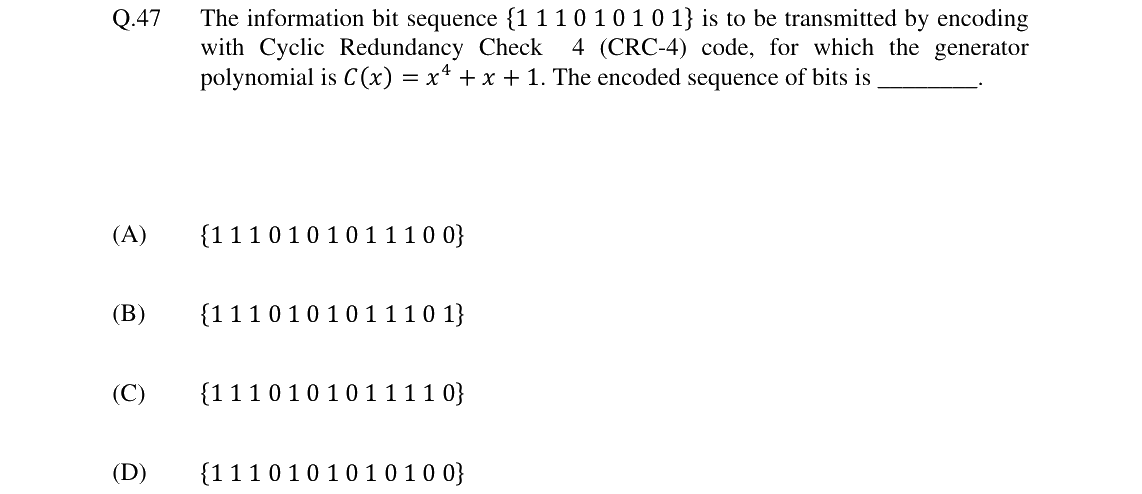

Q.47 · EC · 2 marks · MCQ
Show answer
Answer: A

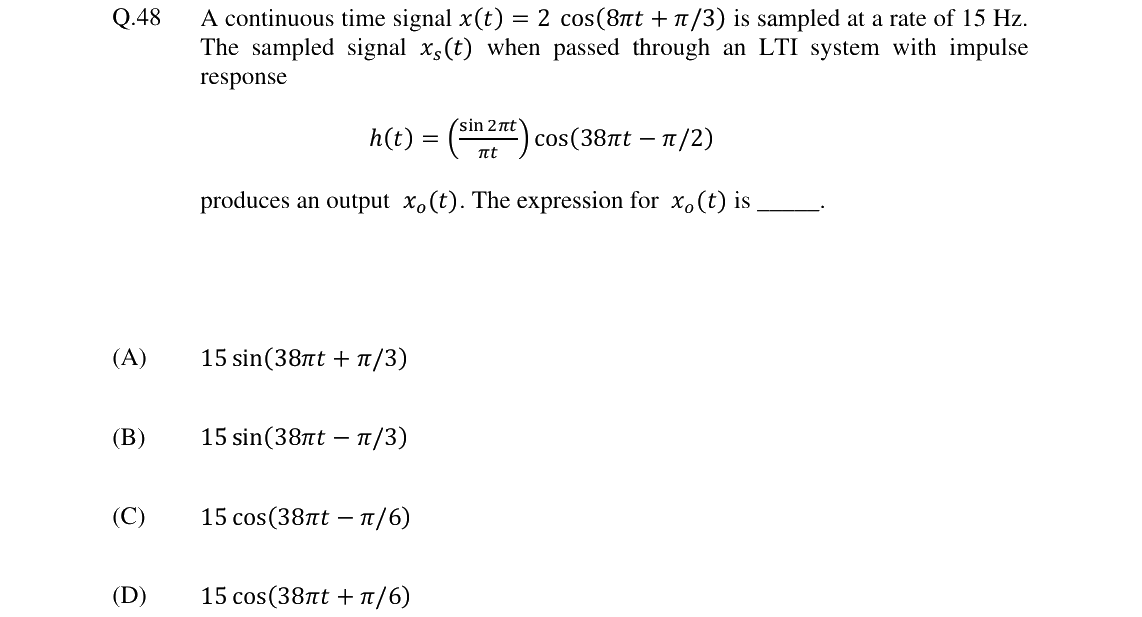

Q.48 · EC · 2 marks · MCQ
Show answer
Answer: Marks to all (question dropped)

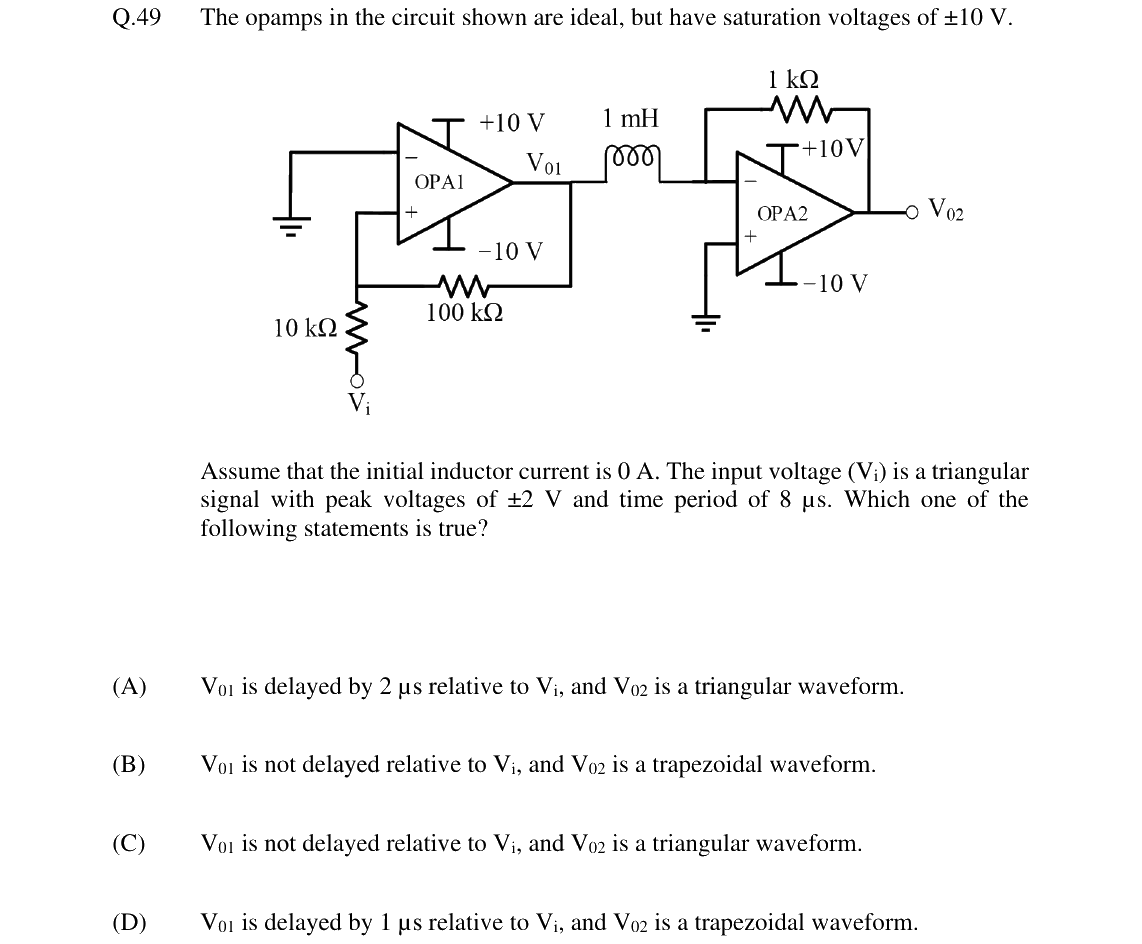

Q.49 · EC · 2 marks · MCQ
Show answer
Answer: D

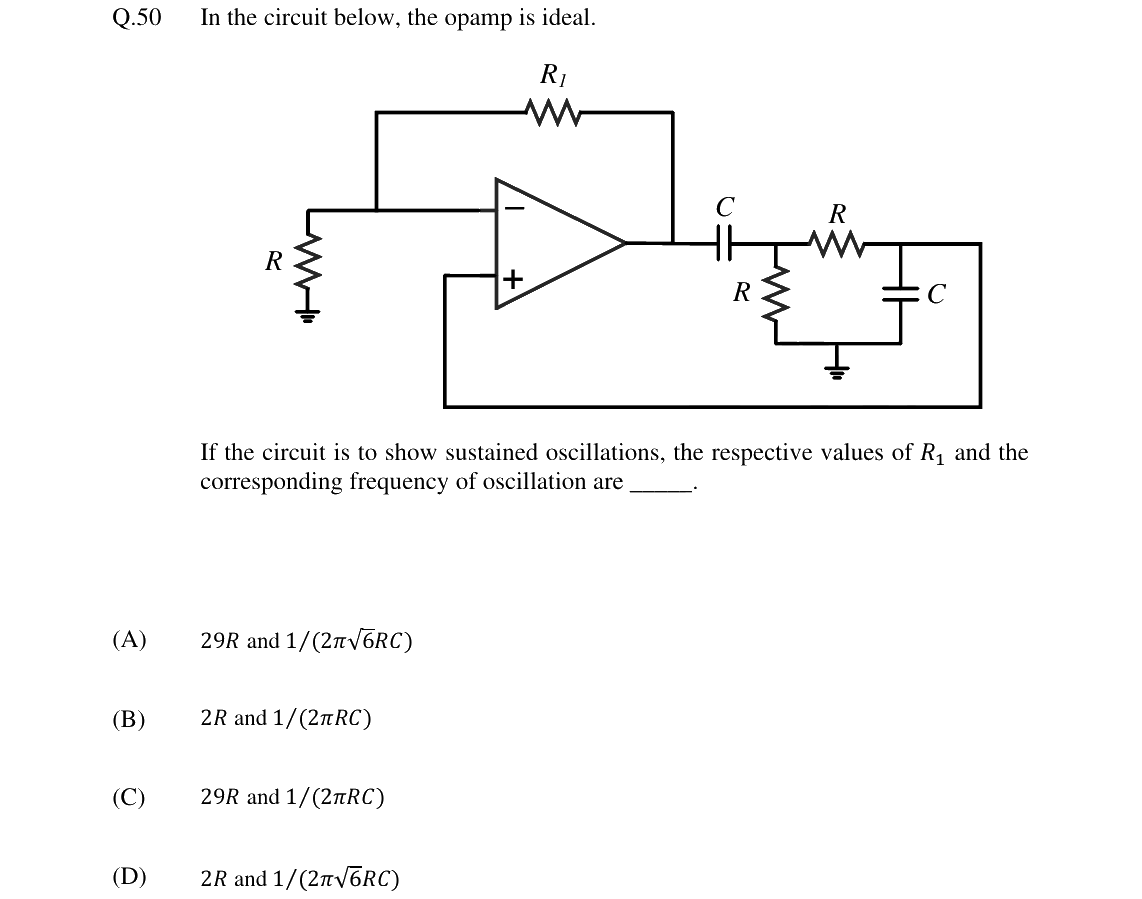

Q.50 · EC · 2 marks · MCQ
Show answer
Answer: B

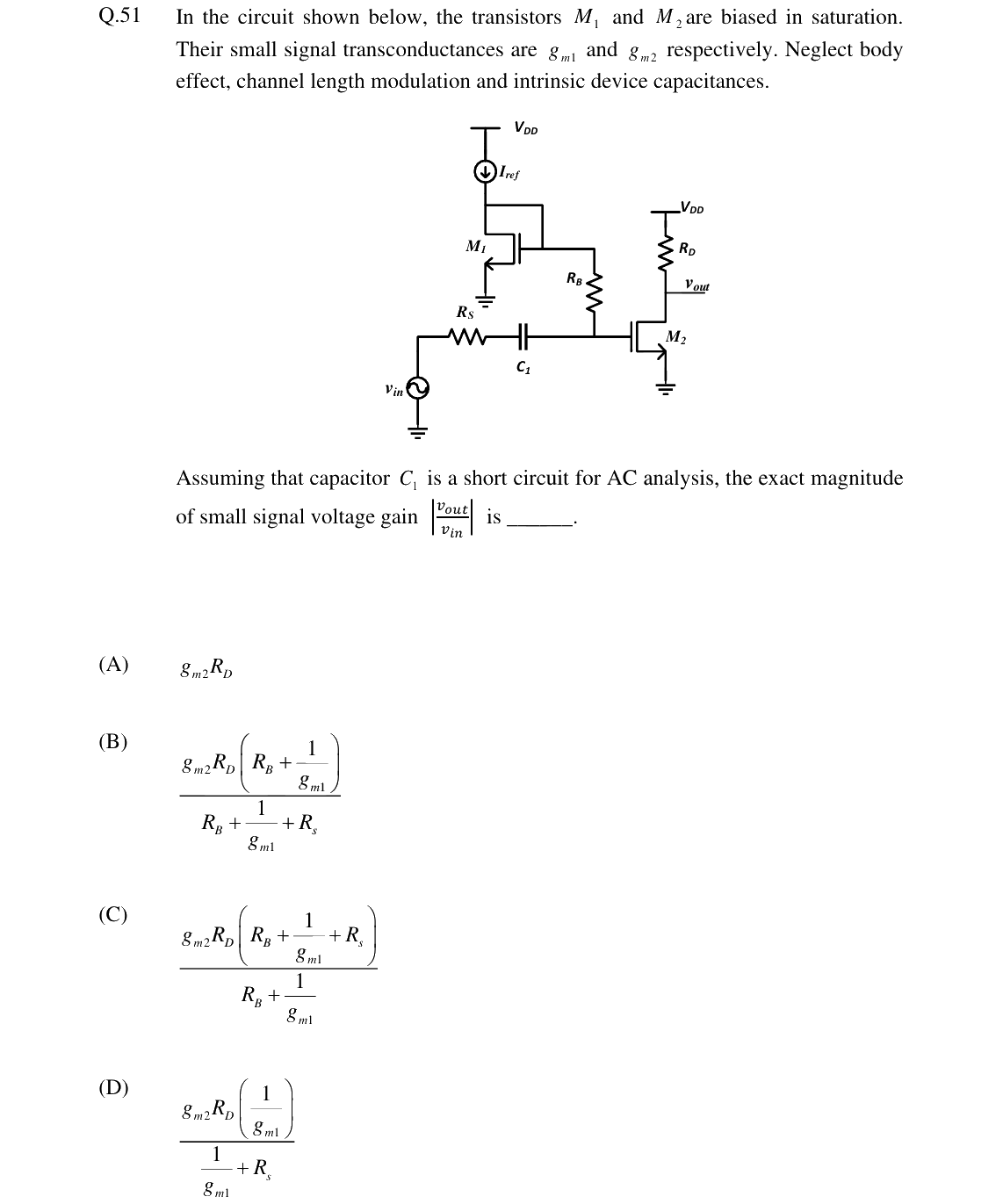

Q.51 · EC · 2 marks · MCQ
Show answer
Answer: B

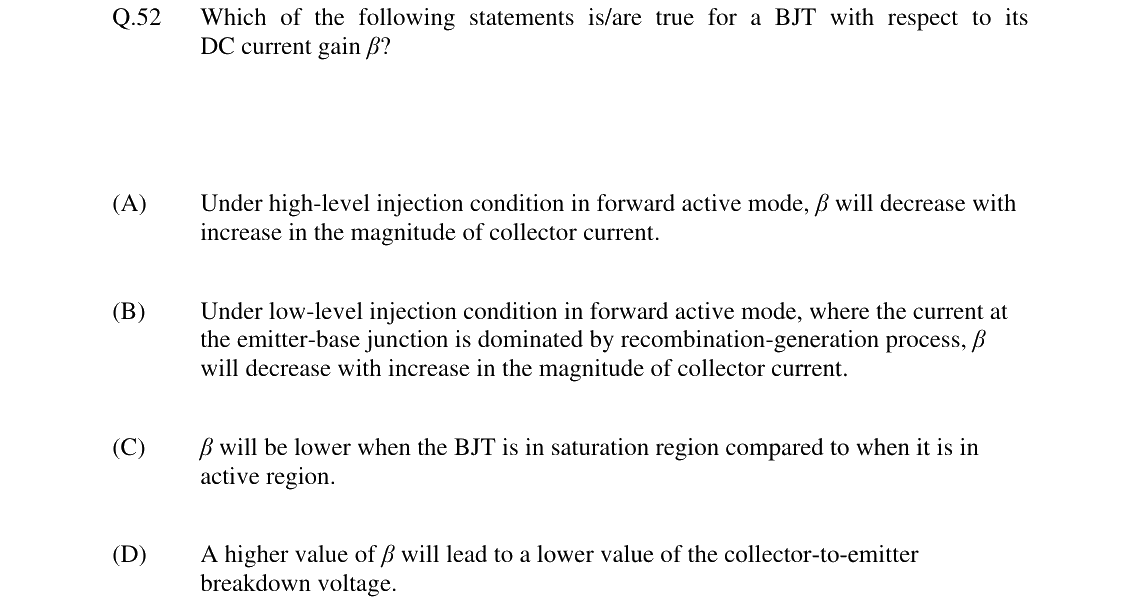

Q.52 · EC · 2 marks · MSQ
Show answer
Answer: A, C, D

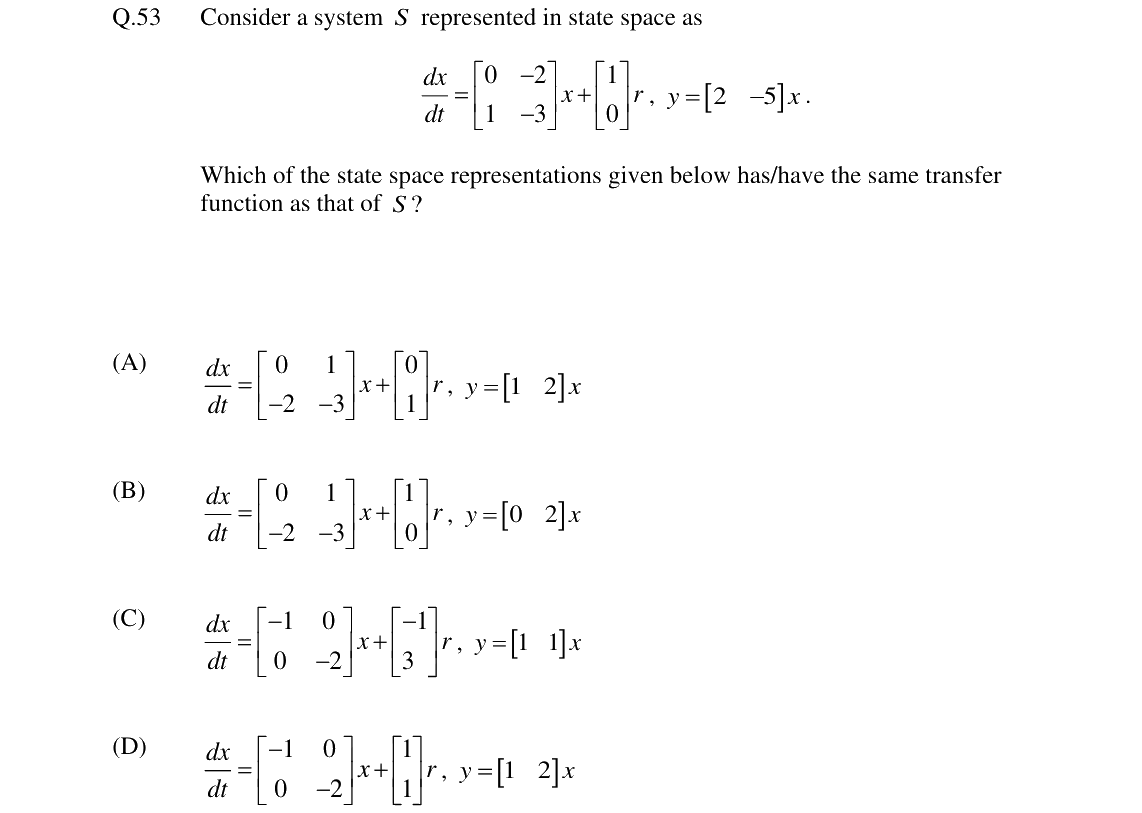

Q.53 · EC · 2 marks · MSQ
Show answer
Answer: A, C

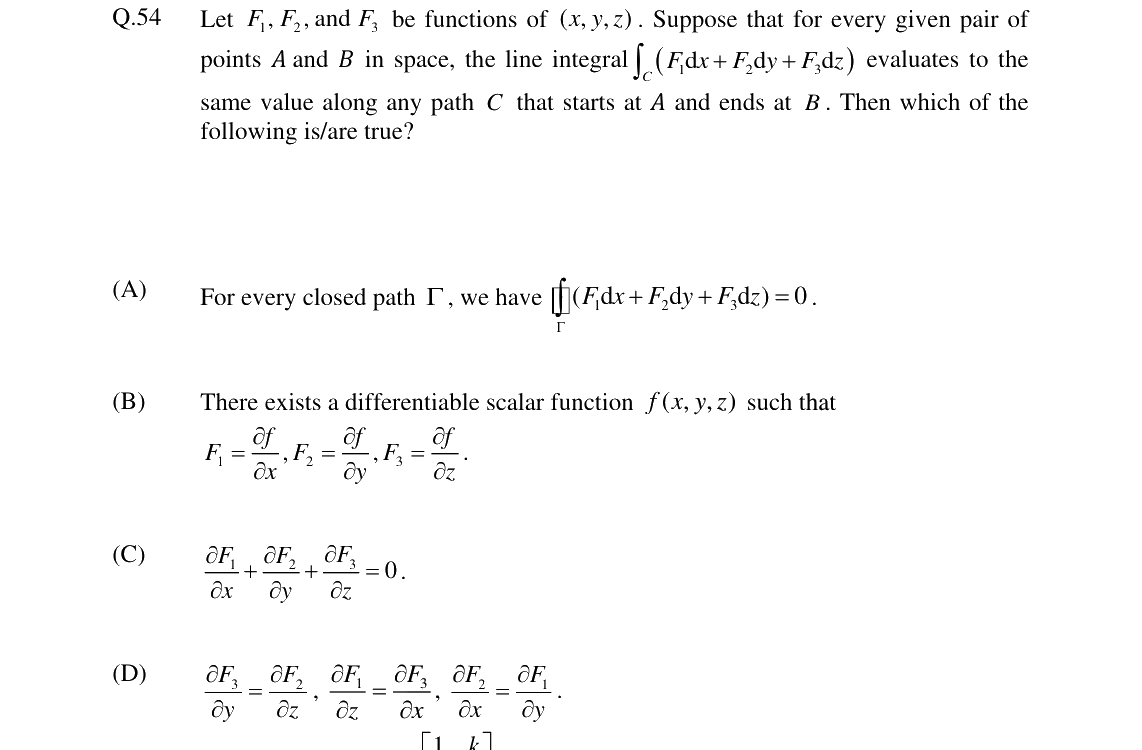

Q.54 · EC · 2 marks · MSQ
Show answer
Answer: A, B, D

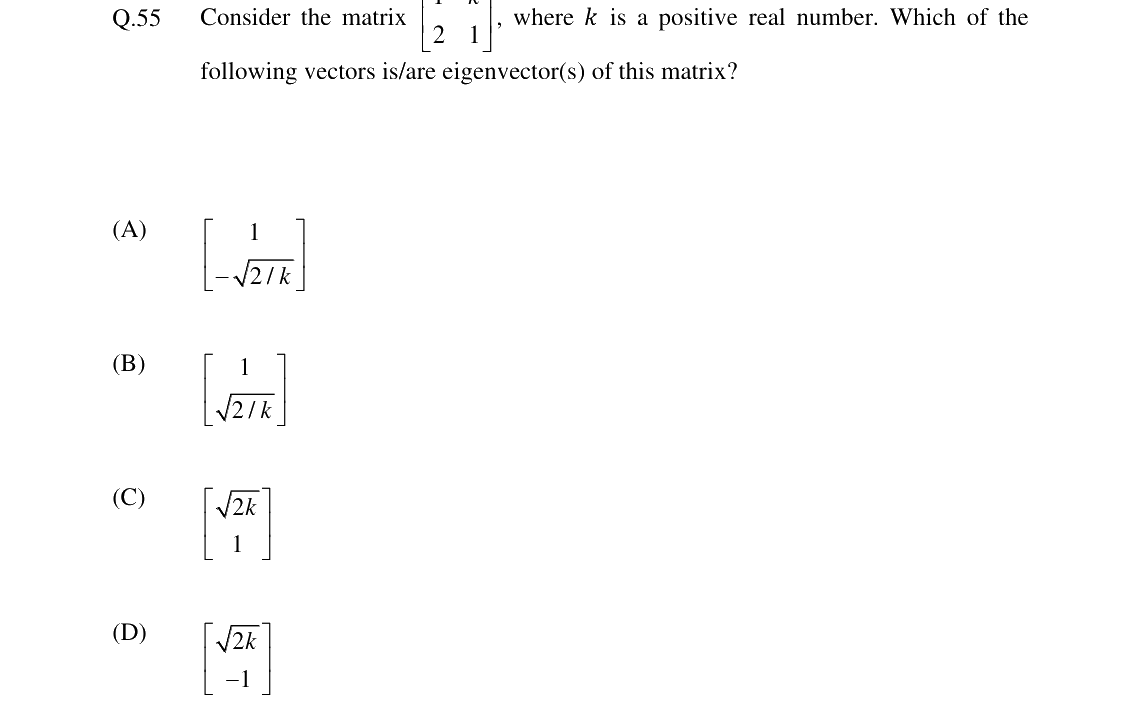

Q.55 · EC · 2 marks · MSQ
Show answer
Answer: A, B

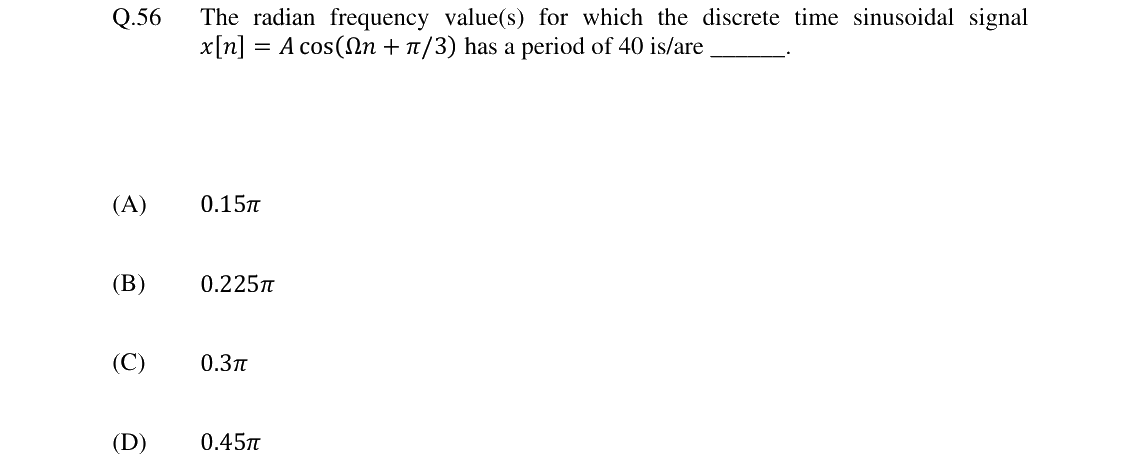

Q.56 · EC · 2 marks · MSQ
Show answer
Answer: A, D or A, C, D

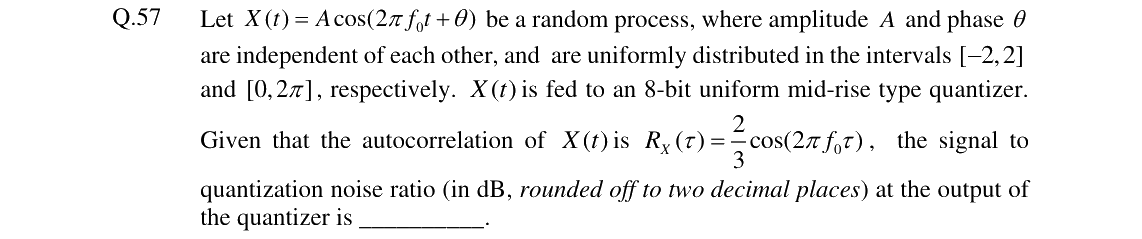

Q.57 · EC · 2 marks · NAT
Show answer
Answer: 45 to 45.3

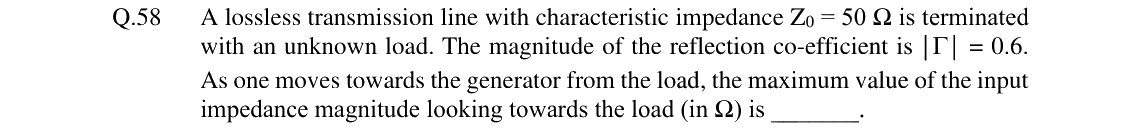

Q.58 · EC · 2 marks · NAT
Show answer
Answer: 200

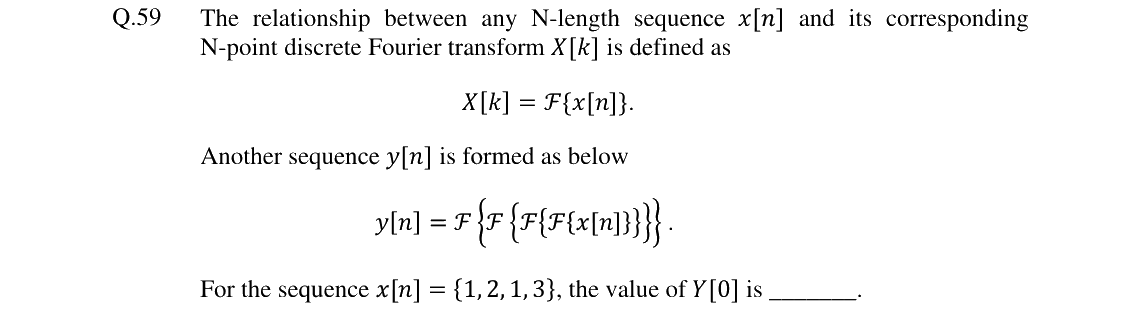

Q.59 · EC · 2 marks · NAT
Show answer
Answer: 112

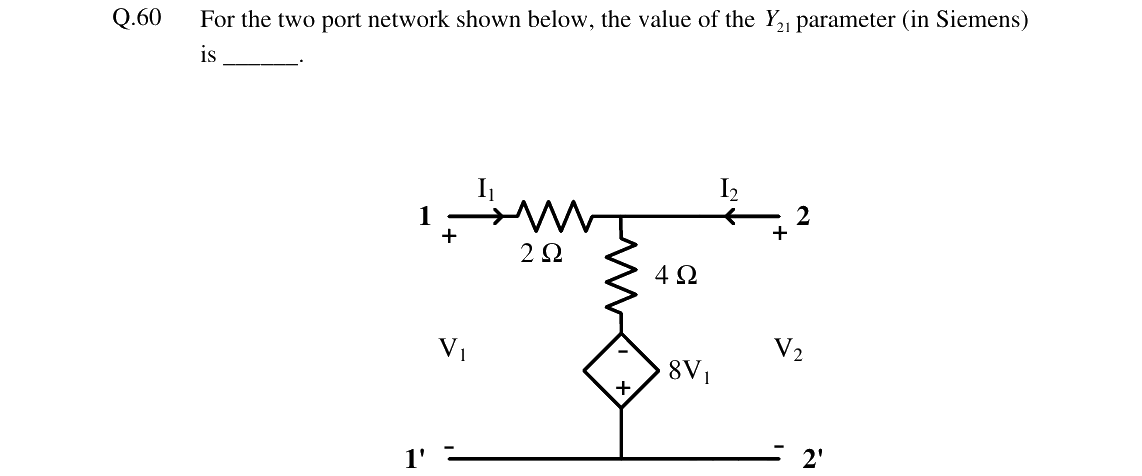

Q.60 · EC · 2 marks · NAT
Show answer
Answer: 1.5

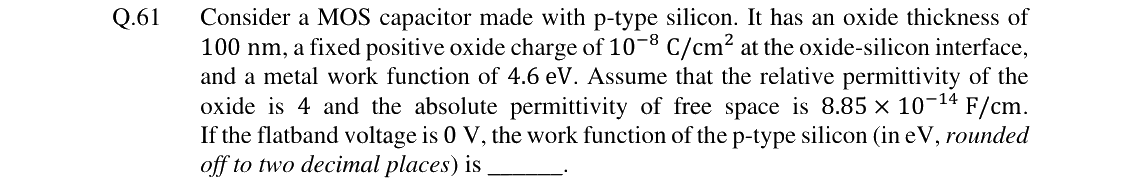

Q.61 · EC · 2 marks · NAT
Show answer
Answer: 4.1 to 4.5

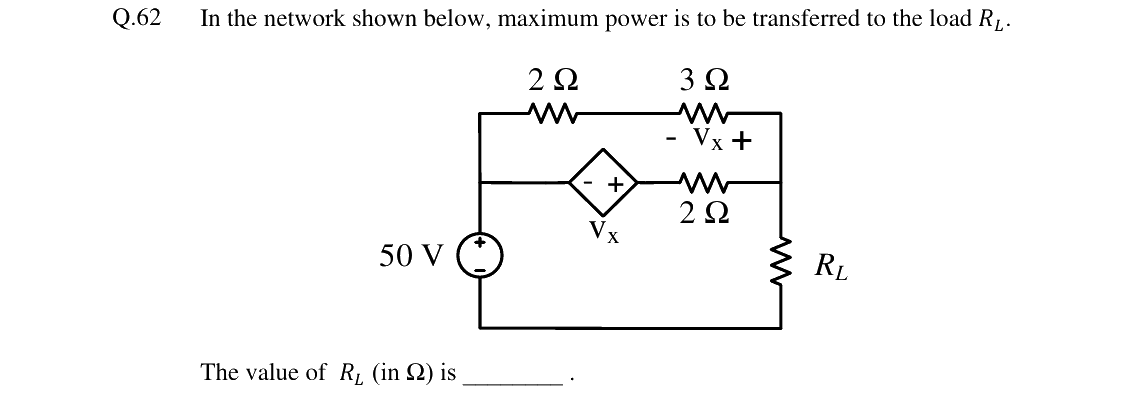

Q.62 · EC · 2 marks · NAT
Show answer
Answer: 2.5

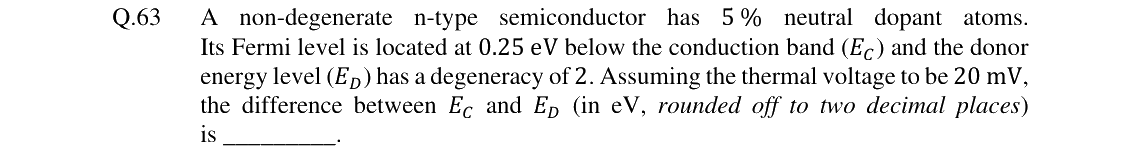

Q.63 · EC · 2 marks · NAT
Show answer
Answer: 0.17 to 0.19

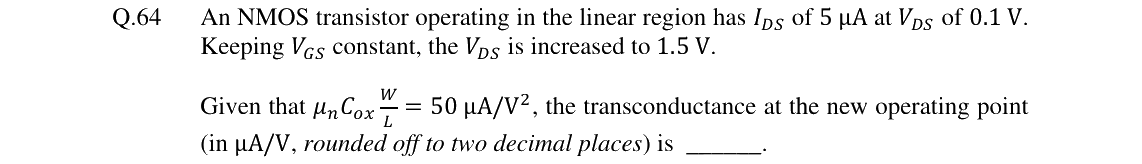

Q.64 · EC · 2 marks · NAT
Show answer
Answer: 52.4 to 52.6

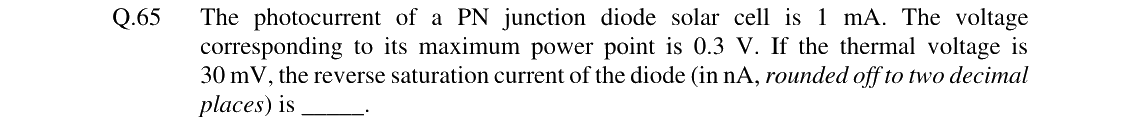

Q.65 · EC · 2 marks · NAT
Show answer
Answer: 4 to 4.26
GATE 2024 EC official answer key
From the official GATE answer key ↗. Numerical answers are accepted anywhere in the range shown.
| Q. | Section | Type | Marks | Answer |
|---|---|---|---|---|
| 1 | GA | MCQ | 1 | A |
| 2 | GA | MCQ | 1 | A |
| 3 | GA | MCQ | 1 | B |
| 4 | GA | MCQ | 1 | C |
| 5 | GA | MCQ | 1 | A |
| 6 | GA | MCQ | 2 | C |
| 7 | GA | MCQ | 2 | D |
| 8 | GA | MCQ | 2 | C |
| 9 | GA | MCQ | 2 | A |
| 10 | GA | MCQ | 2 | A |
| 11 | EC | MCQ | 1 | A |
| 12 | EC | MCQ | 1 | A |
| 13 | EC | MCQ | 1 | D |
| 14 | EC | MCQ | 1 | Marks to all (question dropped) |
| 15 | EC | MCQ | 1 | A |
| 16 | EC | MCQ | 1 | B |
| 17 | EC | MCQ | 1 | A |
| 18 | EC | MCQ | 1 | A |
| 19 | EC | MCQ | 1 | A |
| 20 | EC | MCQ | 1 | A |
| 21 | EC | MCQ | 1 | A |
| 22 | EC | MCQ | 1 | A |
| 23 | EC | MCQ | 1 | A |
| 24 | EC | MSQ | 1 | A, C, D |
| 25 | EC | MSQ | 1 | A, C |
| 26 | EC | MSQ | 1 | A, B, C |
| 27 | EC | NAT | 1 | 2047 |
| 28 | EC | NAT | 1 | 2.49 to 2.51 |
| 29 | EC | NAT | 1 | 11 |
| 30 | EC | NAT | 1 | 5 |
| 31 | EC | NAT | 1 | 2 |
| 32 | EC | NAT | 1 | 0.75 |
| 33 | EC | NAT | 1 | 0.5 |
| 34 | EC | NAT | 1 | 4 |
| 35 | EC | NAT | 1 | 0.25 |
| 36 | EC | MCQ | 2 | A |
| 37 | EC | MCQ | 2 | A |
| 38 | EC | MCQ | 2 | B |
| 39 | EC | MCQ | 2 | A |
| 40 | EC | MCQ | 2 | B |
| 41 | EC | MCQ | 2 | B |
| 42 | EC | MCQ | 2 | B |
| 43 | EC | MCQ | 2 | D |
| 44 | EC | MCQ | 2 | Marks to all (question dropped) |
| 45 | EC | MCQ | 2 | B |
| 46 | EC | MCQ | 2 | B |
| 47 | EC | MCQ | 2 | A |
| 48 | EC | MCQ | 2 | Marks to all (question dropped) |
| 49 | EC | MCQ | 2 | D |
| 50 | EC | MCQ | 2 | B |
| 51 | EC | MCQ | 2 | B |
| 52 | EC | MSQ | 2 | A, C, D |
| 53 | EC | MSQ | 2 | A, C |
| 54 | EC | MSQ | 2 | A, B, D |
| 55 | EC | MSQ | 2 | A, B |
| 56 | EC | MSQ | 2 | A, D or A, C, D |
| 57 | EC | NAT | 2 | 45 to 45.3 |
| 58 | EC | NAT | 2 | 200 |
| 59 | EC | NAT | 2 | 112 |
| 60 | EC | NAT | 2 | 1.5 |
| 61 | EC | NAT | 2 | 4.1 to 4.5 |
| 62 | EC | NAT | 2 | 2.5 |
| 63 | EC | NAT | 2 | 0.17 to 0.19 |
| 64 | EC | NAT | 2 | 52.4 to 52.6 |
| 65 | EC | NAT | 2 | 4 to 4.26 |
